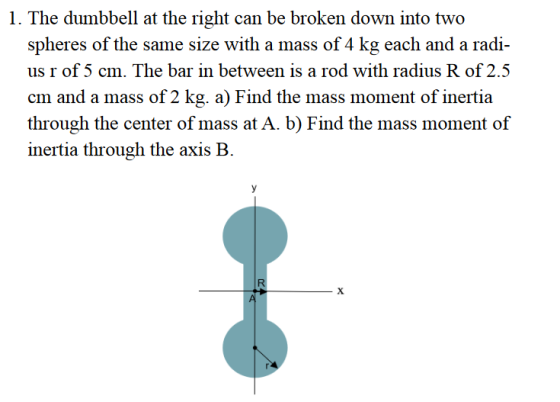

Can you please help understand how am I supposed to solve this problem also....the length of the rod is 10cm.
Homework Answers

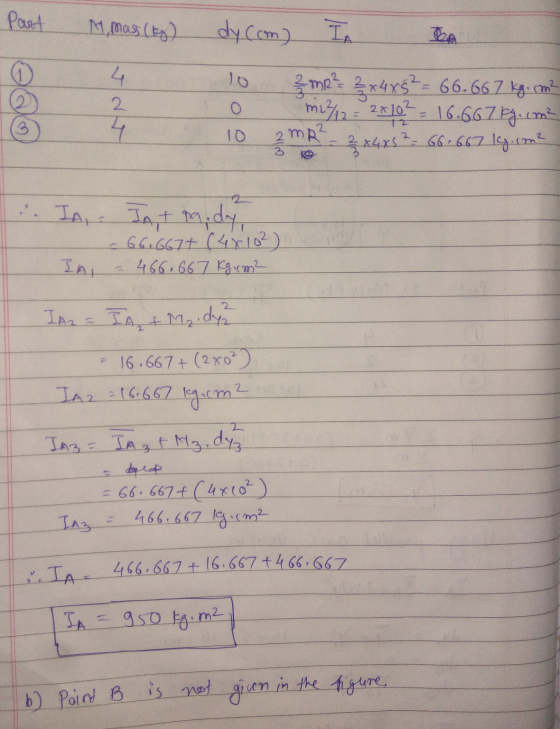

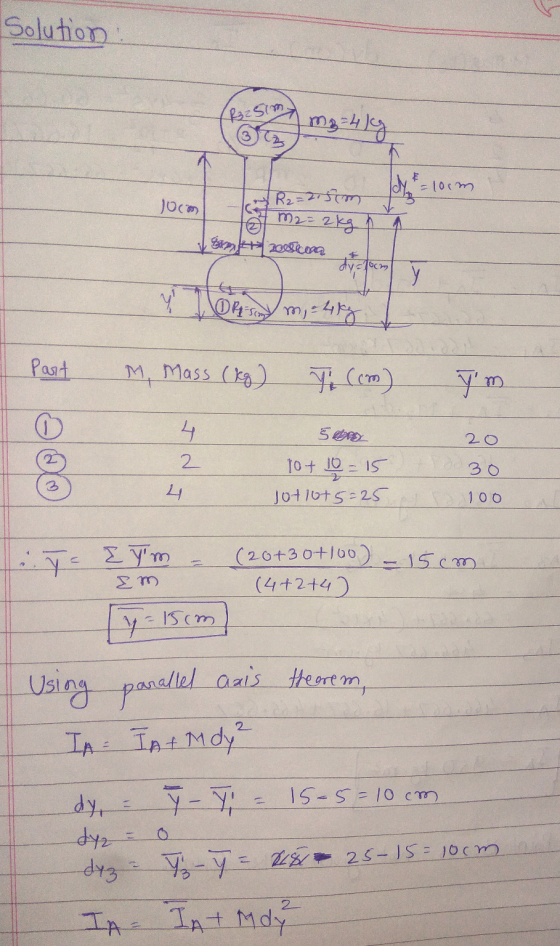

Please refer the following images for the solution.
