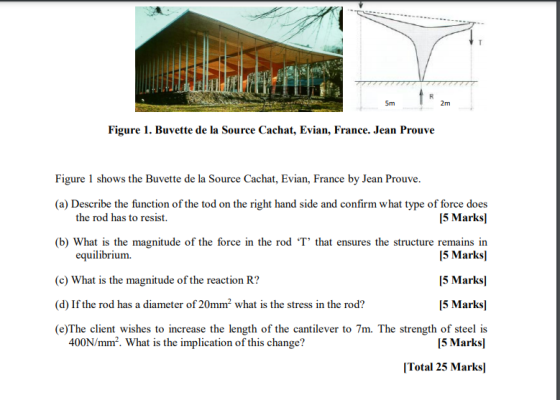

Figure 1 shows the Buvette de la Source Cachat, Evian, France by Jean Prouve.
(a) Describe the function of the tod on the right hand side and confirm what type of force does the rod has to resist.
(b) What is the magnitude of the force in the rod "T' that ensures the structure remains in equilibrium.
(c) What is the magnitude of the reaction R?
(d) If the rod has a diameter of \(20 \mathrm{~mm}^{2}\) what is the stress in the rod?
(e)The client wishes to increase the length of the cantilever to \(7 \mathrm{~m}\). The strength of steel is \(400 \mathrm{~N} / \mathrm{mm}^{2}\). What is the implication of this change?
Homework Answers
Request Answer!
We need at least 10 more requests to produce the answer.
0 / 10 have requested this problem solution
The more requests, the faster the answer.
