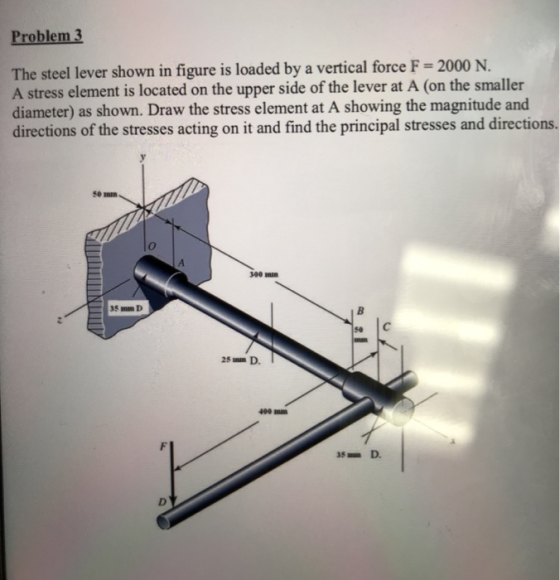

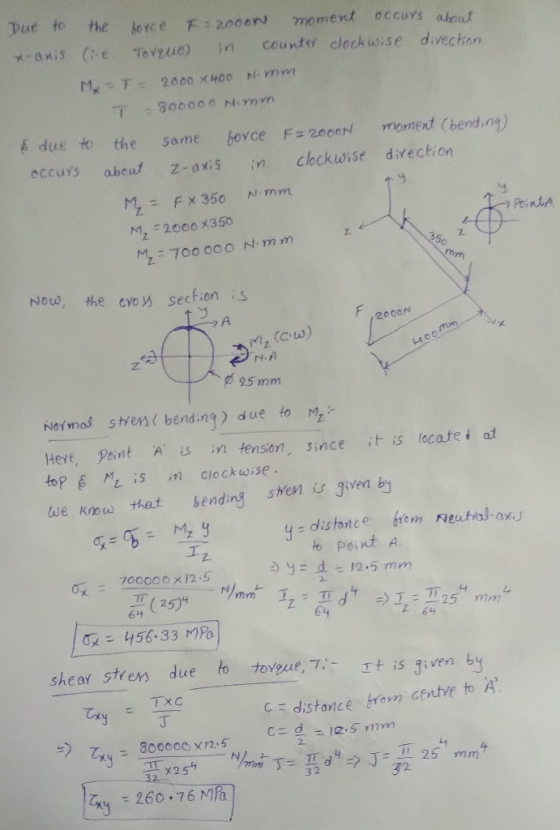

the steel lever shown in figure
is loaded by a vertical force f=2000 N. A stress...

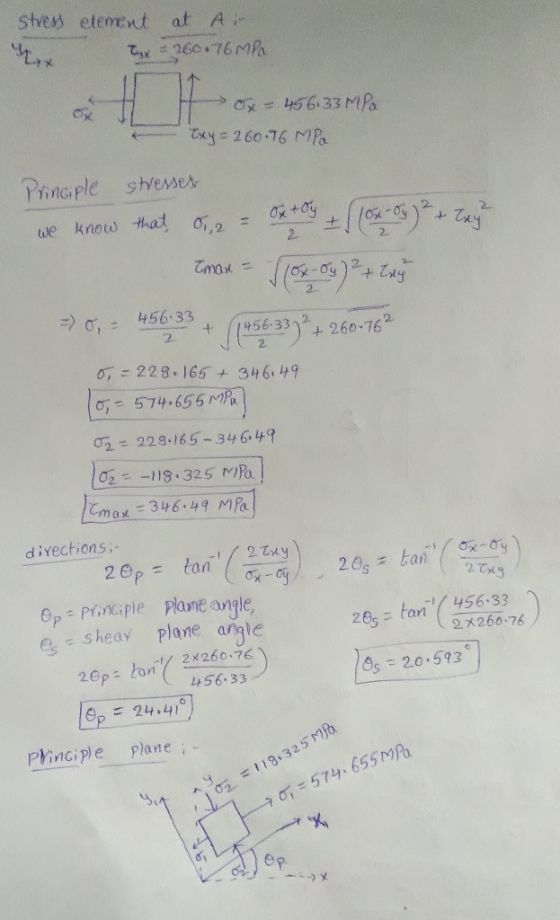

. A 25-mm diameter steel shaft is loaded by a 1000 N force as shown. Determine (a) the free body diagram of the shaft and reaction loading at the support, (b) the stresses at A (top surface) and d...
. A 25-mm diameter steel shaft is loaded by a 1000 N force as shown. Determine (a) the free body diagram of the shaft and reaction loading at the support, (b) the stresses at A (top surface) and draw the stress element at A, and (c) the stresses at B (side surface) and draw the stress element at B. 200 mm 100 1000 N
. A 25-mm diameter steel shaft is loaded by a 1000 N force as shown. Determine...
The cantilever bar in the figure is made from AISI 1018 CD steel and is statically loaded
The cantilever bar in the figure is made from AISI 1018 CD
steel and is statically loaded with Fy = 800 N, and Fx = Fz = 0.
The fillet radius at the wall is 2 mm with theoretical stress
concentrations of 1.5 for bending, 1.2 for axial, and 2.1 for
torsion.Sut = 440 MPa = 64 kpsi, Sy = 370 MPa = 54 kpsi. Analyze the
stress situation in rod AB by obtaining the following
information.a) Determine the precise...
The solid shaft is sujected to a torque and vertical force as shown. Calculate the stresses...
The solid shaft is sujected to a torque and vertical force as shown. Calculate the stresses acting at point A and draw Mohr's circle. Then, determine: (a) the principal stresses, (b) the maximum in-plane shear stress and average normal stress. 450 mm r=25 mm Specify the orientation and sketch the element in each case. 245 N-m HintForcirculararea: Solution: 1x=1,-, J=2. 800 N
The cantilevered bar in the figure is made from a ductilematerial and is statically loaded...
The cantilevered bar in the figure is made from a ductile
material and is statically loaded with Fy= 250 lbf and
Fx = Fz= 0. Analyze the stress situation in
the small diameter at the shoulder at A by obtaining the following
information.(a) Determine the precise location of the critical stress
element at the cross section at A.(b) Sketch the critical stress element and determine magnitudes
and directions for all stresses acting on it. (Transverse shear may
be neglected if...
The cantilevered bar in the figure is made from a ductile material and is statically loaded...
The cantilevered bar in the figure is made from a ductile material and is statically loaded F, = 250 lbf and at A by obtaining the following information. with F, = Fz = 0, Analyze the stress situation in the small diameter at the shoulder (a) Determine the precise location of the critical stress element at the cross section at A. (b) S ketch the critical stress element and determine magnitudes and directions for all stresses acting on it. (Transverse...
The cantilevered bar in the figure is made from a ductile material and is statically loaded with Fy=-200 lbf and Fx = 500 lb. Ignore stress concentration.
The cantilevered bar in the figure is made from a ductile material and is statically loaded with Fy=-200 lbf and Fx = 500 lb. Ignore stress concentration. a. Determine the precise location of the critical stress in element at the cross section at A. b. Sketch the critical stress element and label all the stresses. c. Determine magnitudes and directions for all stresses acting on stress element. d. Show the normal stress distribution at cross-section of A. e. For the design of cantilever bar, recommend...
P12.010 (Multistep) Concentrated loads of Pr = 2600 N, Pv-2400 N, and P. = 2000 N...
P12.010 (Multistep) Concentrated loads of Pr = 2600 N, Pv-2400 N, and P. = 2000 N are applied to the cantilever beam in the locations and directions shown in Figure A. The beam cross section shown in Figure B has dimensions of b-90 mm and d = 35 mm using a value of a 79 mm, determine the normal and shear stresses at a) point Hand (b) point K. Show these stresses on a stress element. ho FIGURE A FIGURE...
The cantilevered bar in the figure is made from a ductile material and is statically loaded with Fy=250 lbf and Fx=Fz=0.
The cantilevered bar in the figure is made from a ductile material and is statically loaded with Fy=250 lbf and Fx=Fz=0. Analyze the stress situation in the small diameter at the shoulder at A by obtaining the following information.(a) Determine the precise location of the critical stress
element at the cross section at A.(b) Sketch the critical stress element and determine magnitudes
and directions for all stresses acting on it. (Transverse shear may be neglected if you can
justify this...
A solid aluminum post is subjected to a vertical force of P = 70 kN and a concentrated torque of T = 3.25 kN-m
A solid aluminum post is subjected to a vertical force of P = 70 kN and a concentrated torque of T = 3.25 kN-m, acting in the directions shown. The length of the pole is L = 90 mm and the diameter is 60 mm. a) Calculate the normal and shear stresses at point H (in MPa) [Ans. to check: σx = 0 MPa, σy=-24.8 MPa, τxy=76.6 MPa] b) Draw the stress element at point H c) Calculate the normal and shear stresses...
3. As shown, the portion AB of the lever has a diameter of 1.2 inch, determine...
3. As shown, the portion AB of the lever has a diameter of 1.2 inch, determine (a) Cartesian stresses at point H, sketch the results in a cubic element representing at point H location, (b) Principal stresses and maximum shear stress at point H (30 points) B 18 in. 10 in D 1.2 in 4 in. H 2002b 100&b
. A 25-mm diameter steel shaft is loaded by a 1000 N force as shown. Determine (a) the free body diagram of the shaft and reaction loading at the support, (b) the stresses at A (top surface) and draw the stress element at A, and (c) the stresses at B (side surface) and draw the stress element at B. 200 mm 100 1000 N
. A 25-mm diameter steel shaft is loaded by a 1000 N force as shown. Determine...
The cantilever bar in the figure is made from AISI 1018 CD
steel and is statically loaded with Fy = 800 N, and Fx = Fz = 0.
The fillet radius at the wall is 2 mm with theoretical stress
concentrations of 1.5 for bending, 1.2 for axial, and 2.1 for
torsion.Sut = 440 MPa = 64 kpsi, Sy = 370 MPa = 54 kpsi. Analyze the
stress situation in rod AB by obtaining the following
information.a) Determine the precise...
The solid shaft is sujected to a torque and vertical force as shown. Calculate the stresses acting at point A and draw Mohr's circle. Then, determine: (a) the principal stresses, (b) the maximum in-plane shear stress and average normal stress. 450 mm r=25 mm Specify the orientation and sketch the element in each case. 245 N-m HintForcirculararea: Solution: 1x=1,-, J=2. 800 N
The cantilevered bar in the figure is made from a ductile
material and is statically loaded with Fy= 250 lbf and
Fx = Fz= 0. Analyze the stress situation in
the small diameter at the shoulder at A by obtaining the following
information.(a) Determine the precise location of the critical stress
element at the cross section at A.(b) Sketch the critical stress element and determine magnitudes
and directions for all stresses acting on it. (Transverse shear may
be neglected if...
The cantilevered bar in the figure is made from a ductile material and is statically loaded F, = 250 lbf and at A by obtaining the following information. with F, = Fz = 0, Analyze the stress situation in the small diameter at the shoulder (a) Determine the precise location of the critical stress element at the cross section at A. (b) S ketch the critical stress element and determine magnitudes and directions for all stresses acting on it. (Transverse...
P12.010 (Multistep) Concentrated loads of Pr = 2600 N, Pv-2400 N, and P. = 2000 N are applied to the cantilever beam in the locations and directions shown in Figure A. The beam cross section shown in Figure B has dimensions of b-90 mm and d = 35 mm using a value of a 79 mm, determine the normal and shear stresses at a) point Hand (b) point K. Show these stresses on a stress element. ho FIGURE A FIGURE...
3. As shown, the portion AB of the lever has a diameter of 1.2 inch, determine (a) Cartesian stresses at point H, sketch the results in a cubic element representing at point H location, (b) Principal stresses and maximum shear stress at point H (30 points) B 18 in. 10 in D 1.2 in 4 in. H 2002b 100&b
