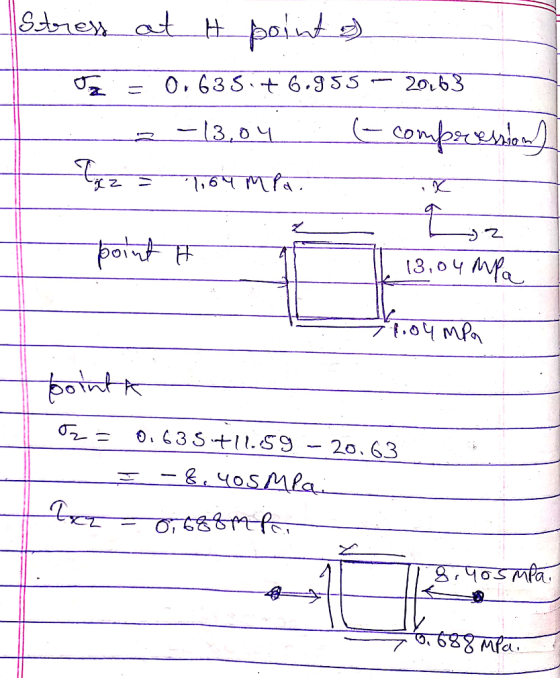

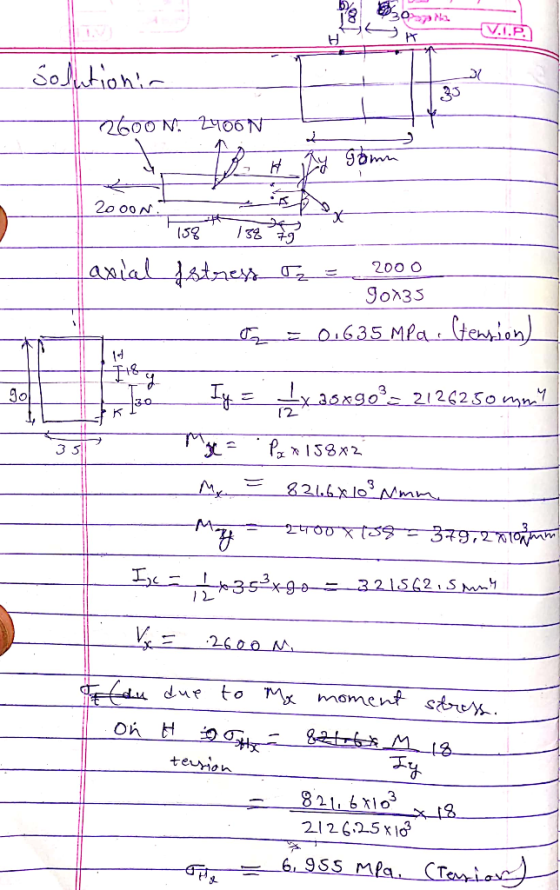

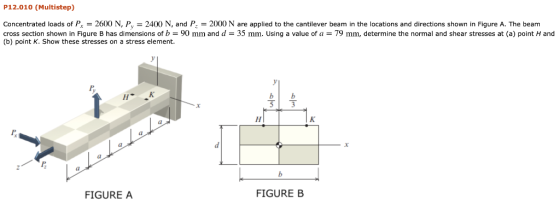

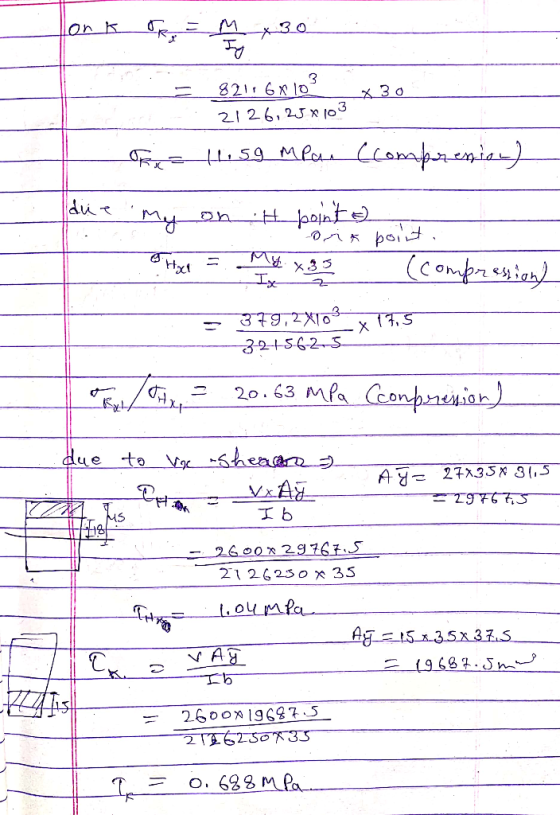

P12.010 (Multistep) Concentrated loads of Pr = 2600 N, Pv-2400 N, and P. = 2000 N...
Concentrated loads of Px = 37 kips, Py = 23 kips, and Pz = 19 kips...
Concentrated loads of Px = 37 kips, Py = 23 kips, and Pz = 19 kips are applied to the cantilever beam in the locations and directions shown. The beam cross section shown in has dimensions of b = 9 in. and h = 4 in. Using a value of a = 6.4 in., determine the normal and shear stresses at point K, and calculate the maximum in-plane shear stress at K. (Answers: -14.36 ksi, 0.86 ksi, and 7.23 ksi)...
Problem 4. (20 pts) Concentrated loads of P-40 kips, Py-22 kips, and P. 16 kips are...
Problem 4. (20 pts) Concentrated loads of P-40 kips, Py-22 kips, and P. 16 kips are applied to the cantilever beam in the locations and directions shown in the figure. The beam cross section shown in the figure has dimensions of b-11 in. and h-3 in. Use a value of a-6.8 in a) Determine the first moment of area to be used about the x-axis. (Q) b) Determine the first moment of area to be used about the y-axis. (a)...
The cantilever beam of length 3L is subject to concentrated loads P and 2P and has...
The cantilever beam of length 3L is subject to concentrated loads P and 2P and has the thin-walled cross-section illustrated below. The cross-section has uniform thickness t and moment of inertia with respect to the centroidal z-axis given by I = 3140 t4. Use t = 5 mm, L = 135 mm and P= 6 kN. 2P H 10 t 5t A P 10 t 22 L 10 t 1) Determine the numerical value of the shear force and bending...
The cantilever beam is subjected to a concentrated load of P = 52 kips. The cross-sectional...
The cantilever beam is
subjected to a concentrated load of P = 52 kips. The
cross-sectional dimensions of the wide-flange shape are shown in
the second figure. Assume yH = 3.2 in.,
yK = 1.8 in., d = 10.8 in.,
tw = 0.354 in., tf = 0.414
in., bf = 6.62 in. Determine:
(a) the shear stress τH at point H, which is located 3.2
in. below the centroid of the wide-flange shape.
(b) the maximum horizontal shear stress τmax...
The cantilever beam is subjected to a concentrated load of P = 29 kips. The cross-sectional dimen...
The cantilever beam is subjected to a concentrated load of
P = 29 kips. The cross-sectional dimensions of the
wide-flange shape are shown in the second figure. Assume
yH=3.4 in., yK=1.6 in.,
d=10.6 in., tw=0.323 in.,
tf=0.507 in., bf=6.12 in.
Determine:
The cantilever beam is subjected to a concentrated load of P 29 kips. The cross-sectional dimensions of the wide-flange shape are shown in the second figure. Assume y,-3.4 in., Ук_ 1.6 in., d-10.6 in., t,-0.323 in., tf-0.507 in., bf-6.12...
The cantilever beam shown in the figure is subjected to a concentrated load at point B....
The cantilever beam shown in the figure is subjected to a concentrated load at point B. The stresses acting at point H on the beam are to be determined. H Cross section For this analysis, use the following values: Beam and Load. a = 1.75 m b=0.30 m @= 60 degrees P = 25 KN Cross-sectional Dimensions d=250 mm bp = 125 mm ty=7 mm tw = 7 mm C= 30 mm (Note: The load P applied at Bacts in...
A cantilever beam, with a rectangular cross section, is subjected to loads P, Q and R,...
A cantilever beam, with a rectangular cross section, is subjected to loads P, Q and R, as illustrated in the figure below. Given, P 100 kN, Q 15 kN and R 10 kN, determine the principal stresses and the maximum in-plane shearing stress at point B. Also, determine the planes on which the principal stresses act, and the planes on which the maximum in-plane shear stress acts. The vertical dimension (depth) of the beam is 120 mm. 40 mmA 2...
The cantilever beam shown in the figure is subjected to a concentrated load at point B....
The cantilever beam shown in the figure is subjected to a concentrated load at point B. The stresses acting at point Hon the beam are to be determined Ques! Text- Quest Text Ent T Quest Text End Cross section Viewir Text-Ent For this analysis, use the following values Beam and Load. Questi Muitstep a. 1.75 m b-0.30 m 0.63 degrees P.49 KN Questid Text Entry Questio Text Entry Cross-sectional Dimensions d - 275 mm by - 150 mm - 13...
3. The cantilever beam with rectangular cross- 12k Given: P-250 kN, 0 section is subjected to loads P, Q, and R as...
3. The cantilever beam with rectangular cross- 12k Given: P-250 kN, 0 section is subjected to loads P, Q, and R as shown. a) Determine the state of stress at point A, and draw a volumetric stress element for point A. b) Determine the state of stress at point B, and draw a volumetric stress element for point B. 35 mmA 15 mm 100m 50 mm 120mm n. 250 mm 70 mm
A cantilever beam supports the loads shown. The cross-sectional dimensions of the shape are also shown....
A cantilever beam supports the loads shown. The cross-sectional dimensions of the shape are also shown. Assume mm, by - 85 mm, 5 mm, 9 mm. Determine - 0.5 m, P. - 4.0 kN, Pg - 7.5 kN, Pe-2.0 kN, -85 (a) the maximum vertical shear stress. (b) the maximum compression bending stress. (c) the maximum tension bending stress. See the coordinate system for the beam in the problem figure with the origin of the x axis at the feed...
Concentrated loads of Px = 37 kips, Py = 23 kips, and Pz = 19 kips are applied to the cantilever beam in the locations and directions shown. The beam cross section shown in has dimensions of b = 9 in. and h = 4 in. Using a value of a = 6.4 in., determine the normal and shear stresses at point K, and calculate the maximum in-plane shear stress at K. (Answers: -14.36 ksi, 0.86 ksi, and 7.23 ksi)...
Problem 4. (20 pts) Concentrated loads of P-40 kips, Py-22 kips, and P. 16 kips are applied to the cantilever beam in the locations and directions shown in the figure. The beam cross section shown in the figure has dimensions of b-11 in. and h-3 in. Use a value of a-6.8 in a) Determine the first moment of area to be used about the x-axis. (Q) b) Determine the first moment of area to be used about the y-axis. (a)...
The cantilever beam of length 3L is subject to concentrated loads P and 2P and has the thin-walled cross-section illustrated below. The cross-section has uniform thickness t and moment of inertia with respect to the centroidal z-axis given by I = 3140 t4. Use t = 5 mm, L = 135 mm and P= 6 kN. 2P H 10 t 5t A P 10 t 22 L 10 t 1) Determine the numerical value of the shear force and bending...
The cantilever beam is
subjected to a concentrated load of P = 52 kips. The
cross-sectional dimensions of the wide-flange shape are shown in
the second figure. Assume yH = 3.2 in.,
yK = 1.8 in., d = 10.8 in.,
tw = 0.354 in., tf = 0.414
in., bf = 6.62 in. Determine:
(a) the shear stress τH at point H, which is located 3.2
in. below the centroid of the wide-flange shape.
(b) the maximum horizontal shear stress τmax...
The cantilever beam is subjected to a concentrated load of
P = 29 kips. The cross-sectional dimensions of the
wide-flange shape are shown in the second figure. Assume
yH=3.4 in., yK=1.6 in.,
d=10.6 in., tw=0.323 in.,
tf=0.507 in., bf=6.12 in.
Determine:
The cantilever beam is subjected to a concentrated load of P 29 kips. The cross-sectional dimensions of the wide-flange shape are shown in the second figure. Assume y,-3.4 in., Ук_ 1.6 in., d-10.6 in., t,-0.323 in., tf-0.507 in., bf-6.12...
The cantilever beam shown in the figure is subjected to a concentrated load at point B. The stresses acting at point H on the beam are to be determined. H Cross section For this analysis, use the following values: Beam and Load. a = 1.75 m b=0.30 m @= 60 degrees P = 25 KN Cross-sectional Dimensions d=250 mm bp = 125 mm ty=7 mm tw = 7 mm C= 30 mm (Note: The load P applied at Bacts in...
A cantilever beam, with a rectangular cross section, is subjected to loads P, Q and R, as illustrated in the figure below. Given, P 100 kN, Q 15 kN and R 10 kN, determine the principal stresses and the maximum in-plane shearing stress at point B. Also, determine the planes on which the principal stresses act, and the planes on which the maximum in-plane shear stress acts. The vertical dimension (depth) of the beam is 120 mm. 40 mmA 2...
The cantilever beam shown in the figure is subjected to a concentrated load at point B. The stresses acting at point Hon the beam are to be determined Ques! Text- Quest Text Ent T Quest Text End Cross section Viewir Text-Ent For this analysis, use the following values Beam and Load. Questi Muitstep a. 1.75 m b-0.30 m 0.63 degrees P.49 KN Questid Text Entry Questio Text Entry Cross-sectional Dimensions d - 275 mm by - 150 mm - 13...
3. The cantilever beam with rectangular cross- 12k Given: P-250 kN, 0 section is subjected to loads P, Q, and R as shown. a) Determine the state of stress at point A, and draw a volumetric stress element for point A. b) Determine the state of stress at point B, and draw a volumetric stress element for point B. 35 mmA 15 mm 100m 50 mm 120mm n. 250 mm 70 mm
A cantilever beam supports the loads shown. The cross-sectional dimensions of the shape are also shown. Assume mm, by - 85 mm, 5 mm, 9 mm. Determine - 0.5 m, P. - 4.0 kN, Pg - 7.5 kN, Pe-2.0 kN, -85 (a) the maximum vertical shear stress. (b) the maximum compression bending stress. (c) the maximum tension bending stress. See the coordinate system for the beam in the problem figure with the origin of the x axis at the feed...
