Homework Answers

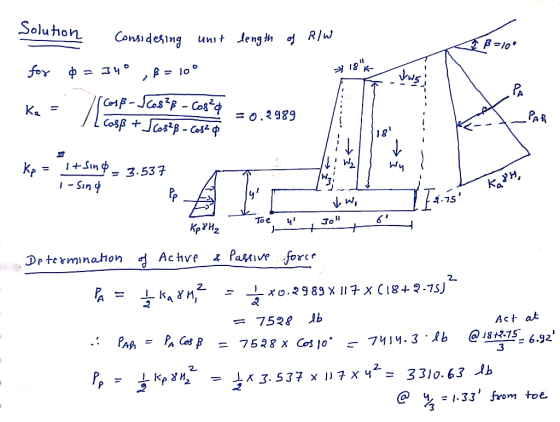

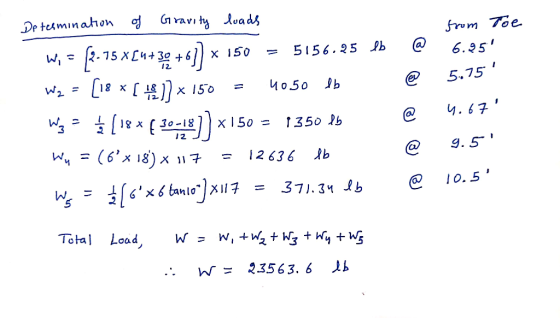

![Determination of Gravity loads W, = {2.75 X[+39 +6]] x 150 - 5156.25 fb W2 = (18 *[ 43)* 150 - 4050 eb Ws = ☆ (18 *[ 30-18 ]]](http://img.homeworklib.com/questions/4ad63560-4fc4-11eb-a1e8-99f05f846e76.png?x-oss-process=image/resize,w_560)
Add Answer to:

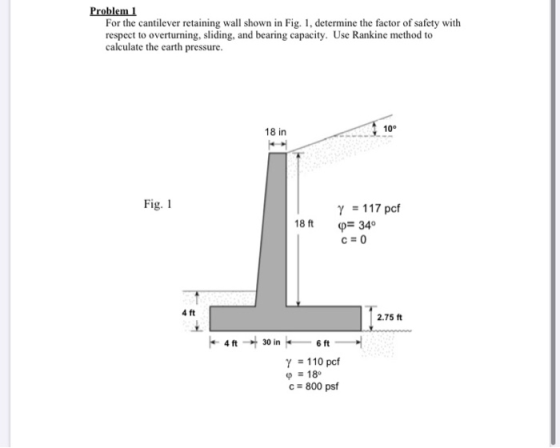

Problem 1 For the cantilever retaining wall shown in Fig. 1, determine the factor of safety...
