A slender rod is 80.0 cm long and has mass 0.390 kg . A small 0.0200-kg...

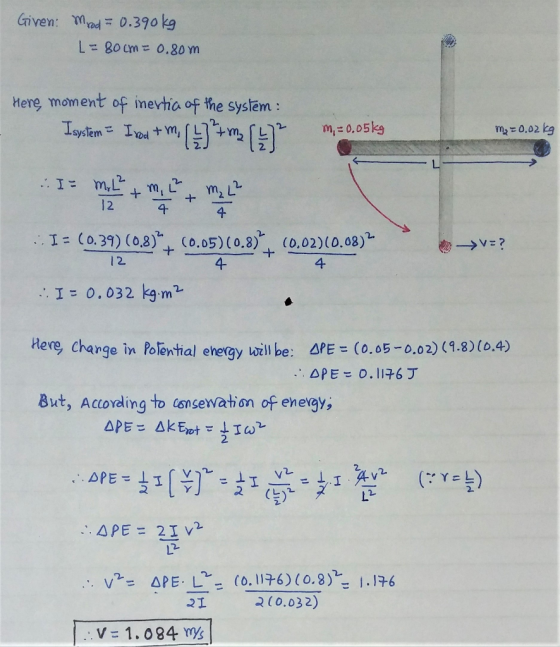

A slender rod is 80.0 cm long and has mass 0.390 kg . A small 0.0200-kg sphere is welded to one end of the rod, and a small 0.0500-kg sphere is welded to the other end. The rod, pivoting about a stationary, frictionless axis at its center, is held horizontal and released from rest. What is the linear speed of the 0.0500-kg sphere as its passes through its lowest point?
Homework Answers
Alright Dude, If that worked for you... don't forget to give
THUMBS UP.(that will work for me!)
Please Vote...
If I missed something feel free to leave a comment.
At least before giving down vote.
and_Thanks for using homeworklib- Smarter way to study.
