Question

MATLAB question: I have some data on excell and I have to write a code that does the following:

Read from Data_all.xlsx Sheet “Wave_data", your specific Wave Height (WH) measurements and using a "for loop" and "if-elseif-else" command, count the number of measurement in the following ranges: a. WH= 0 or 1 m b. WH=2 or 3 m c. WH=4 or 5 m d. WH=6 or 7 m e. WH= 8 or 9 m f. WH= 10 or 11 m g. WH= 12 or 13 m Plot a bar chart (with appropriate title, and axis titles) of the results using, for example, bar(data_count) as you have another plot in task 1, use the command "subplot" to include them both in the same plot.

Please use dummy data for your convenience.

Thank you in advance for your help!

Answer 1

Here is the MATLAB code to perform the specified task.

 clear; clc; FileName = 'Data_all' %Keep the file in the same folder as .m file num = xlsread(FileName); %Read data from excel sheet %Initialize counters a=0; b=0; c=0; d=0; e=0; f=0; g=0; for i = 1:1:length(num) if num(i) == 0 | num(i) == 1 a = a+1; elseif num(i) == 2 | num(i) == 3 b = b+1; elseif num(i) == 4 | num(i) == 5 c = c+1; elseif num(i) == 6 | num(i) == 7 d = d+1; elseif num(i) == 8 | num(i) == 9 e=e+1; elseif num(i) == 10 | num(i) == 11 f = f+1; elseif num(i) == 12 | num(i) == 13 g =g+1; else disp("Invalid Input"); end end y = [ a b c d e f g]; name = {'0-1';'2-3';'4-5';'6-7';'8-9'; '10-11'; '12-13'}; x = [1:7] %For X- axis %figure(1); %Uncomment these two lines for having subplot in your next task %subplot(2,1,1); bar(x,y) %Plot Bar graph xlabel('Wave height in meters'); %Label on X-axis ylabel('Number of waves'); %Label in Y-axis set(gca,'xticklabel',name); %Set wave height for each bar in graph

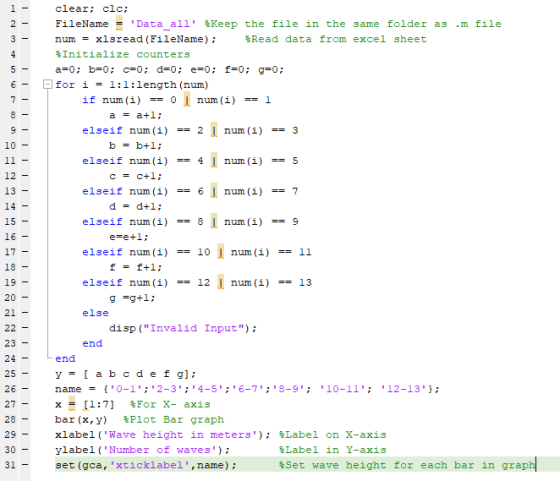

The following screenshot will help you with the indentation:

TII IIIIIIIIIIIIIIIIIIIIIIIIIII clear; clc; FileName = 'Data_all' Keep the file in the same folder as .m file num = xlsread (FileName); Read data from excel sheet $Initialize counters a=0; b=0; c=0; d=0; e=0; f=0; g=0; for i = 1:1:length (num) if num(i) == 0 | num(i) == 1 a = a+l; elseif num(i) == 2 | num(i) == 3 b = b+1; elseif num(i) == 4 | num(i) == c = c+l; elseif num(i) == 6 | num(i) == d = d+l; elseif num(i) == 8 | num(i) == 9 e=e+l; elseif num(i) == 10 | num (i) == 11 f = f+l; elseif num(i) == 12 | num(i) == 13 g =g+1; else disp ("Invalid Input"); end end y = [ a b c d e f g]; name = {'0-l';'2-3';'4-5'; '6-7';'8-9'; '10-ll'; '12-13'); x = [1:7] For X- axis bar(x,y) Plot Bar graph xlabel('Wave height in meters'); $Label on X-axis ylabel ('Number of waves'); Label in Y-axis set (gca,'xticklabel', name); Set wave height for each bar in graph

After giving the random numbers from 0 - 13 from excel sheet as follows:

The output will be as follows:

- OX Figure 1 Eile Edit View Insert Tools Desktop Window Help Number of waves 0-1 2-3 10-11 12-13 4-5 6-7 8-9 Wave height in meters

Uncomment the figure(1) and subplot(2,1,1); for subplot in your next task.

Note: Feel free to reach me out using the comment section if needed help. Please give a thumbs up for the solution. Thanks in advance.
