I am having trouble filling out the last row
Homework Answers
NOTE: The quality x is only applicable for saturated mixture or saturated state. It is not applicable for subcooled and superheated state.
Comment below in case of any trouble with the answers. I will try to respond asap.
_______________________________________________________________
Answer:
- v = 0.001052 m3/kg
- x = Not Applicable
- Phase = Subcooled
_______________________________________________________________
Solution:
Add Answer to:
I am having trouble filling out the last row

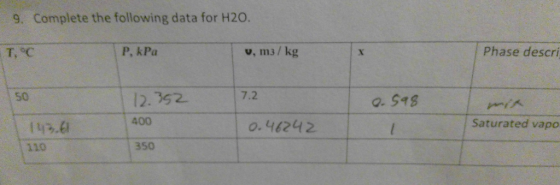

9. Complete the following data for H20....
