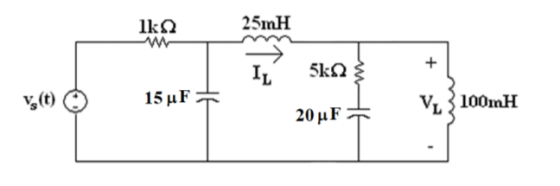

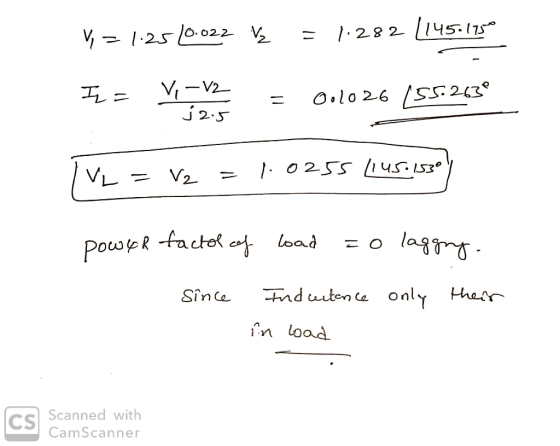

For the circuit below, Vs(t) = 100 cos(100t + 56o) in steady-state. Using Node-Voltage, find steady-state expressions for VL(t) and iL(t). Also find the power factor at the load.
)
Homework Answers
Add Answer to:
For the circuit below, Vs(t) = 100 cos(100t + 56o) in
steady-state. Using Node-Voltage, find
steady-state...
