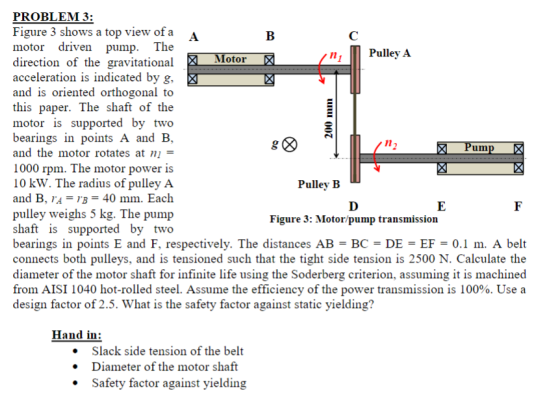

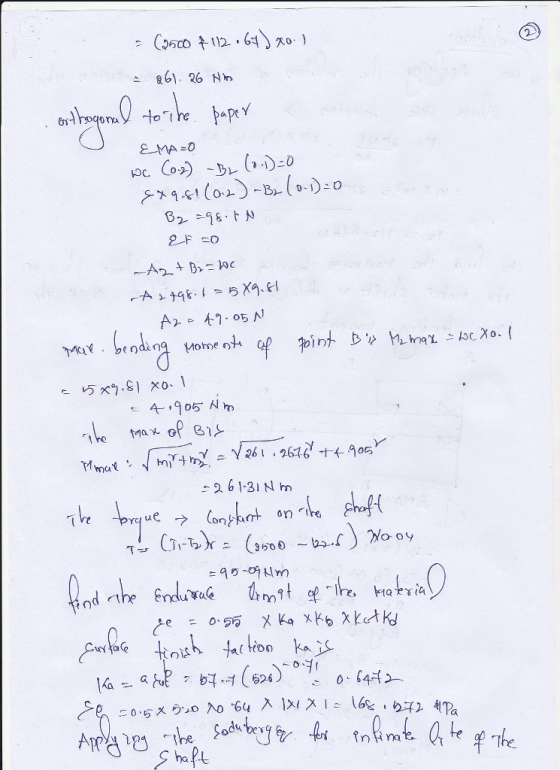

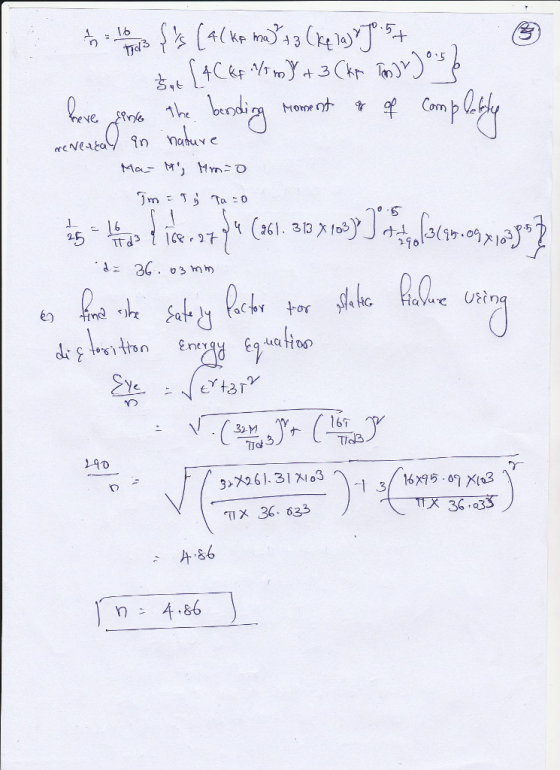

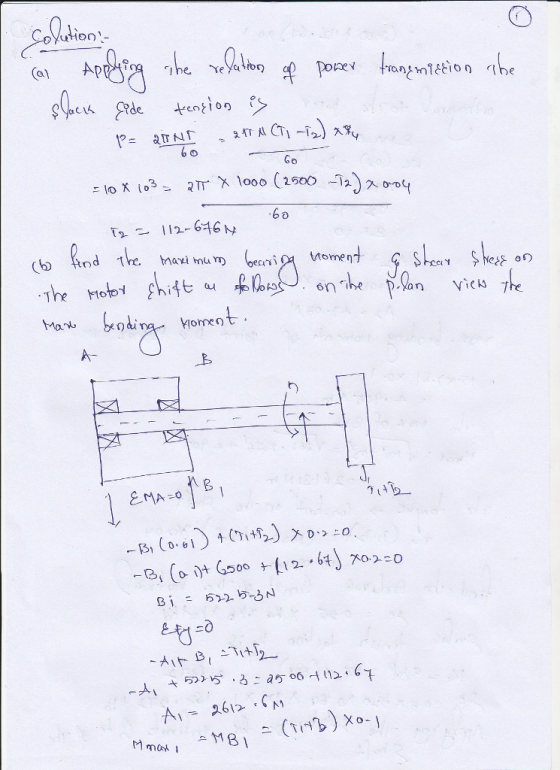

PROBLEM 3: Figure 3 shows a top view ofa motor driven pump. The direction of the...
A countershaft, made of AISI 1035 CD steel, carrying two V-belt pulleys is shown in the figure. Pulley A receives power from a motor through a belt with the belt tensions shown. The power is transmitted through the shaft and delivered to the belt on pulley B. Assume the belt tension on the loose side at B is 25 percent of the tension on the tight side (F2 - 0.25 F) 1) Based on the equations for yielding conditions discussed...
Q2. Figure Q2 shows a shaft which transmits a power of 48 kW through flat belts. Pulley A is driven by a motor which rotates at 3000 rpm. The diameter of pulley A is 400 mm and that of pulley B is 250 mm. The thickness of the belts is 4 mm and they are made of a material with density of 1100 kg/m3. Assume no sliding between pulleys and belts a) Calculate the speed of the belt and the...
A countershaft in a machine has two pulleys mounted on it for power transmission and is supported by cylindrical roller bearings at the ends. The countershaft runs at 1,500 revolutions per minute. The belt tension on the loose side of Pulley B is 20% of the tension on tight side. Design the shaft, mounting components. The design will include the following items. (1) Shaft material selection based on strength and cost considerations. (Give a comparison b/w at least two possible materials) (2) Shaft...
Q2 (b) The layout of a shaft carrying two pulleys 1 and 2, and supported on two bearings A and B is shown in Figure 2.2. The shaft transmits 7.5 kW power at 360 rpm from pulley 1 to pulley 2. The diameters of pulley 1 and 2 are 250 mm and 500 mm respectively. The masses of pulley 1 and 2 are 10 kg and 30 kg respectively. The belt tensions act vertically downward and ratio of the belt...
motor drives a water pump through a vee belt transmission system as shown in motor pulleys have diameters D,-600 mm and Di-200 mm, centres is d-1.5 m. The friction coefficient between 1. An electric Figure 1. The pump and respectively. The distance between pulley th e belt and pulleys is 0.4. If the motor rotates at 2000 rpm in clockwise direction determine: (4 marks) (3 marks) (4 marks) a) the lap angle on pulley D2; b) the tight and slack...
Question 2: [20 Points) The Figure below shows a portion of a pump that is gear driven at uniform load and speed. The shaft is supported by bearings mounted in the pump housing. The shaft is made of steel, its yield strength is 800 MPa and its ultimate tensile strength is 1000 MPa. The surface of the shaft is machined. Due to the fillet at A, the fatigue bending stress concentration factor is 2.0, the fatigue torsion stress concentration factor...
A countershaft carrying two V-belt pulleys is shown in the figure. Pulley A receives power from a motor through a belt with the belt tensions shown. The power is transmitted through the shaft and delivered to the belt on pulley B. Assume the belt tension on the loose side at Bis 15 percent of the tension on the tight side. For the steel countershaft shown in the figure below, find the slope of the shaft at each bearing. Use superposition...
AISI 1018 HR
Section #2 (80p) 035 CD 1018 HR Q1. The figure shows a shaft mounted in bearings at A and D and having pulleys at B and C. The forces shown acting on the pulley surfaces represent the belt tensions. The shaft is to be made of AISI 1035 CD steel. Using both conservative failure theory and distortion energy theory with a design factor of 2.5, determine the minimum shaft diameter to avoid yielding. dete n-2.5 127lbt 8y=61&...
A countershaft carrying two
V-belt pulleys is shown in figure 1 (dimensions in inches). Pulley
A receives power from a motor through a belt with the belt tensions
shown. The power is transmitted through the shaft and delivered to
the belt on pulley B. Assume the belt tension on the loose side at
B is
15 percent of the tension on the tight side.
a) At the point of maximum bending moment, determine the principal
stresses and the maximum shear...
A transmission shaft is supported on two bearings which are 1m apart. Power is supplied to the shaft by means of a flexible coupling, which is located to the left of left hand bearing. Power is transmitted from the shaft by means of a belt pulley, 250 mm diameter, which is located at a distance of 300 mm from the left hand bearing. The mass of the pulley is 20 kg and the ratio of belt tension on tight and slack sides is 2:1. The...
