In the figure R -95 2, R2-39 , and the ideal batteries have emts c-5.0 V,...

Question

Question

science physics

Answer 1

Answer #1

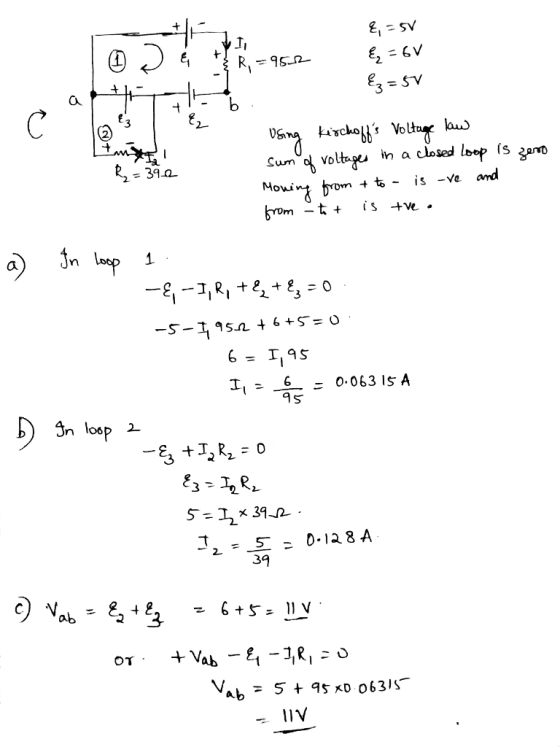

3 2 in a closed Sum al Vol 39.2 Mowi 6= 1.95 aS 2-5-0-128A 3 ab

Answer 2

Similar Homework Help Questions

In the figure the ideal batteries have emfs ε1 = 150 V and ε2 = 50...

In the figure the ideal batteries have emfs ε1 = 150 V and ε2 = 50 V and the resistances are R1 = 3.0 Ω and R2 = 2.0 Ω. If the potential at P is defined to be 140 V, what is the potential at Q? R 181= 8,12 R2 P
Question 3 In the figure the resistances are R1 1.3 Q and R2 2.6 Q, and...

Question 3 In the figure the resistances are R1 1.3 Q and R2 2.6 Q, and the ideal batteries have emfs E12.0 V, and 283 4.8 V. What are the (a) size and (b) direction (up or down) of the current in battery 1, the (c) size and (d) direction of the current in battery 2, and the (e) size and (f) direction of the current in battery 3? (g) What is the potential difference Va-Vb? Ri Ri t, Ry...
In the figure the resistances are R1 = 0.94 Ω and R2-1.9 Ω, and the ideal...

In the figure the resistances are R1 = 0.94 Ω and R2-1.9 Ω, and the ideal batteries have emfs ε,-2.4 V, and ε2E3-5.9 V. what are the (a) size and (b) direction (up or down) of the current in battery 1, the (c) size and (d) direction of the current in battery 2, and the (e) size and (f) direction of the current in battery 3? (g) What is the potential difference Va - Vb R2 (a) Number Units (c)...

In the figure the ideal batteries have emts E1 13.0 V and E2 = 0.500 EI,...

In the figure the ideal batteries have emts E1 13.0 V and E2 = 0.500 EI, and the resistances are each 3.39 Ω. what is the value of current in (a) resistor 2 and (b) resistor 3? RI 12 (a) Number Units (b) Number Units
Question 3 In the figure &, - 3.57 V, z = 1.48 V, R; -4.66, R2...

Question 3 In the figure &, - 3.57 V, z = 1.48 V, R; -4.66, R2 - 2.40 2. R3 - 3.13 , and both batteries are ideal. What is the rate at which energy is dissipated in (a) R, (b) Ry, and (c) Ry? What is the power of (d) battery 1 and (e) battery 2? w w R R (a) Number Units (b) Number Units > > (c) Number Units (d) Number Units (e) Number Units
"2 In Fig. 27-26, the ideal batteries Q have emfs &,-150 V and -50 V and...

"2 In Fig. 27-26, the ideal batteries Q have emfs &,-150 V and -50 V and the resistances are R1 = 3.0 Ω and R2-2.0 Ω. If the potential at P is 100 V, + what is it at 0

In the figure ε1 = 4.04 V, ε2 = 1.50 V, R1 = 4.38 Ω, R2...

In the figure ε1 = 4.04 V, ε2 = 1.50 V, R1 = 4.38 Ω, R2 = 2.36 Ω, R3 = 3.24 Ω, and both batteries are ideal. What is the rate at which energy is dissipated in (a) R1, (b) R2, and (c) R3? What is the power of (d) battery 1 and (e) battery 2? RL RY १४. Rs 81
R R2 V RS 두 R3 RA The figure shows a circuit with a battery and...

R R2 V RS 두 R3 RA The figure shows a circuit with a battery and five resistors. What is the current through and the potential difference across resistors R1 and Rz? R1 = 7.00 2, R2 = 5.00 2, R3 = 3.00 2, R4 = 14.0 2, R3 = 4.002, and V = 23.0 v. Current through R : Potential difference across R : Current through R2: Potential difference across R2: | Submit Answer Tries 0/6
Chapter 27, Problem 023 Partially correct answer. Your answer is partially correct. Try again. In the...

Chapter 27, Problem 023 Partially correct answer. Your answer is partially correct. Try again. In the figure R1 = 130 Ω, R2 = 50 Ω, and the ideal batteries have emfs ε1 = 6.0 V, ε2 = 5.0 V, and ε3 = 4.0 V. Find (a) the current in R1, (b) the current in R2, and (c) the potential difference between points a and b. R2 8 R w

in the circuit in the figure below, the batteries have negligible internal resistance. (Take R1 2.25...

in the circuit in the figure below, the batteries have negligible internal resistance. (Take R1 2.25 Ω. R2-4.50 Ω, and R.-6.80 .) 120 V R, 12.0 V (a) Find the magnitude of the current in each resistor 12.25Ω = 14.son = 6.80n = (b) Find the magnitude of the potential difference between points a and b (c) Find the power supplied by each battery. left battery right battery eBook
