Question

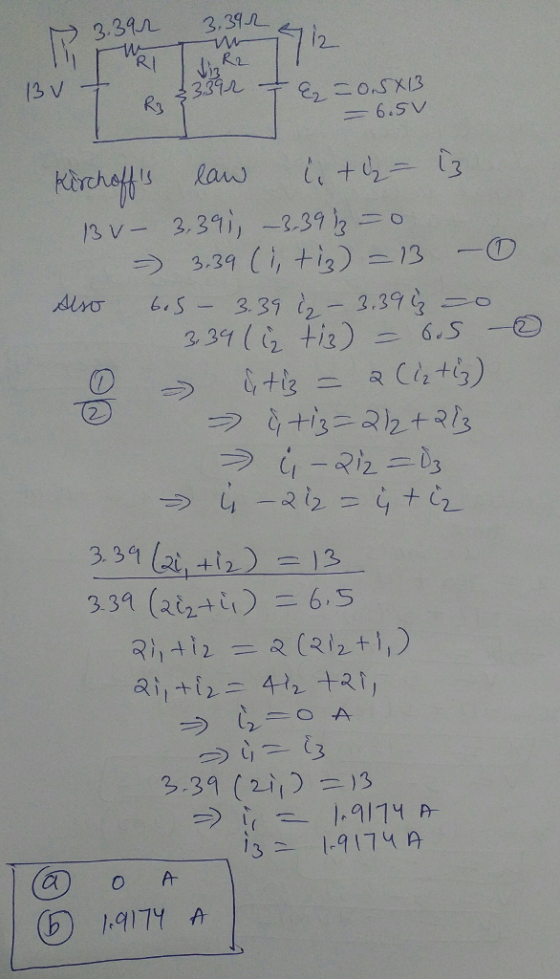

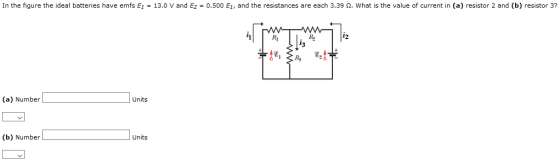

In the figure the ideal batteries have emts E1 13.0 V and E2 = 0.500 EI, and the resistances are each 3.39 Ω. what is the value of current in (a) resistor 2 and (b) resistor 3? RI 12 (a) Number Units (b) Number Units

0 0
Add a comment Improve this question Transcribed image text
Know the answer?
Add Answer to:
In the figure the ideal batteries have emts E1 13.0 V and E2 = 0.500 EI,...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions
  • Chapter 27, Problem 030 Your answer is partially correct. Try again. In the figure the ideal...

    Chapter 27, Problem 030 Your answer is partially correct. Try again. In the figure the ideal batteries have emfs E1 = 7.0 V and E2 = 0.500 EI, and the resistances are each 4.36 Ω, what is the value of current in (a) resistor 2 and (b) resistor 3? (a) Number тв (b) Number Units Units

  • In the figure, the ideal batteries have emfs = 26.0 V and ε2 = 0.50081, and...

    In the figure, the ideal batteries have emfs = 26.0 V and ε2 = 0.50081, and the resistances are each 4.74 Ω R2 (a) What is the current in resistor 2? (b) What is the current in resistor 3?

  • Consider the circuit shown in (Figure 1). The batteries have emfs of Ei = 9.0 V...

    Consider the circuit shown in (Figure 1). The batteries have emfs of Ei = 9.0 V and Ex = 12.0V and the resistors have values of Ri = 272, R = 64, and Rs = 41 22. Part A Determine the magnitudes of the currents in each resistor shown in the figure. Ignore inte resistance of the batteries Express your answers using two significant figures separated by commas, Figure AXO O 2 ? 11, 12, 13 - Submit Previous Answers...

  • In the circuit, the ideal batteres have emfs E1= 10 V, and E2 = 5V. The...

    In the circuit, the ideal batteres have emfs E1= 10 V, and E2 = 5V. The resistances are each 4 ohms. Find the current through R2 and R3.

  • In the figure the ideal batteries have emfs E_1 = 5.57 V and E_2 = 10.9...

    In the figure the ideal batteries have emfs E_1 = 5.57 V and E_2 = 10.9 V, the resistances are each 2.23 ohm, and the potential is defined to be zero at the grounded point of the circuit. What are potentials (a) V1 and (b)V2 at the indicated points? Number Units Number Units

  • The emfs in the figure below are E1 = 5.00 V and E2 = 21.0 V....

    The emfs in the figure below are E1 = 5.00 V and E2 = 21.0 V. The resistances are R1 = 18.0 1, R2 = 32.0 N, R3 = 45.5 N, and R4 = 58.0 N. Find the magnitude of the current in each resistor when the switch is in the following states. R2 R4 S R3 A (a) open 11 = 12 = 13 = 14 = A A A А (b) closed 11 = 12 = 13 =...

  • In the figure the ideal batteries have emfs ε1 = 21.5 V, ε2 = 9.84 V,...

    In the figure the ideal batteries have emfs ε1 = 21.5 V, ε2 = 9.84 V, and ε3 = 4.60 V, and the resistances are each 2.50 Ω. What are the (a) size and (b) direction (left or right) of current i1? (c) Does battery 1 supply or absorb energy, and (d) what is its power? (e) Does battery 2 supply or absorb energy, and (f) what is its power? (g) Does battery 3 supply or absorb energy, and (h)...

  • In the figure the ideal batteries have emfs ε1 = 150 V and ε2 = 50...

    In the figure the ideal batteries have emfs ε1 = 150 V and ε2 = 50 V and the resistances are R1 = 3.0 Ω and R2 = 2.0 Ω. If the potential at P is defined to be 140 V, what is the potential at Q? R 181= 8,12 R2 P

  • In the figure the ideal batteries have emfs 81-20.7 ?, 82-11.8 ?, 83-5.06 V, and 84-525...

    In the figure the ideal batteries have emfs 81-20.7 ?, 82-11.8 ?, 83-5.06 V, and 84-525 V, and the resistances are each 201 ?, what are the (a) magnitude and (b) direction of current i1 and the (c) magnitude and (d) direction of current i2? (This can be answered with only mental calculation.) (e) At what rate is energy being transferred in battery 4, and (f) is the energy being supplied or absorbed by the battery? (a) Number Units (c)...

  • In the figure R -95 2, R2-39 , and the ideal batteries have emts c-5.0 V,...

    In the figure R -95 2, R2-39 , and the ideal batteries have emts c-5.0 V, -60V and t -5.0 V. Find (a) the current in R1, (b) the current in R2, and (e) the potential difference 0 Ry
