A prescription for a corrective lens calls for +2.50 diopters. The lensmaker grinds the lens from...

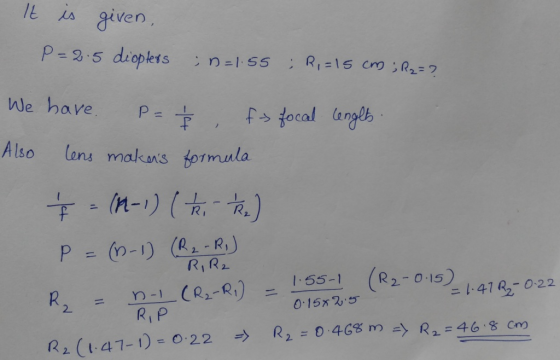

A prescription for a corrective lens calls for +2.50 diopters. The lensmaker grinds the lens from a "blank" with n = 1.55 and a convex front surface of radius of curvature of 15.0 cm. What should be the radius of curvature of the other surface?
Homework Answers
Add Answer to:
A prescription for a corrective lens calls for +2.50 diopters.
The lensmaker grinds the lens from...
The figure illustrates qualitatively a corrective lens of -2.75 diopters. R 8.46 cm The lens material...
The figure illustrates qualitatively a corrective lens of -2.75 diopters. R 8.46 cm The lens material is CR-39 monomer, with an index of refraction of 1.499. Calculate R, the radius of curvature of the outer surface for the lens. Note: the diopter is a measure of the refractive power of a lens, and equals the reciprocal of the focal length in meters. (Example: for +3 diopters, f=0.333 meters.) -18.54 cm Submit Answer Incorrect. Tries 4/12 Previous Tries
The near point of an eye is 111 cm. A corrective lens is to be used...
The near point of an eye is 111 cm. A corrective lens is to be used to allow this eye to focus clearly on objects 25.0 cm in front of it. What should be the focal length of this lens? What is the power of the needed corrective lens (in diopters)? Do not enter units.
1) A toy car is placed 57.0 cm from a convex mirror. The image of the...
1) A toy car is placed 57.0 cm from a convex mirror. The image of the car is upright and one-fifth as large as the actual car. Calculate the mirror's power in diopters. 2) A lens is formed from a plastic material that has an index of refraction of 1.55. If the radius of curvature of one surface is 1.05 m and the radius of curvature of the other surface is 1.95 m, use the lensmaker's equation to calculate the...
A typical human lens has an index of refraction of 1.430. The lens has a double...
A typical human lens has an index of refraction of 1.430. The lens has a double convex shape, but its curvature can be varied by the ciliary muscles acting around its rim. At minimum power, the radius of the front of the lens is 10.0 mm, whereas that of the back is 6.00 mm. At maximum power, the radii are 6.50 mm and 5.50 mm, respectively. If the lens were in air, what would be the maximum power and associated...
A typical human lens has an index of refraction of 1.41. The lens has a double convex shape, but ...
A typical human lens has an index of refraction of 1.41. The lens has a double convex shape, but its curvature can be varied by the ciliary muscles acting around its rim. At minimum power, the radius of the front of the lens is 10.0 cm, while that of the back is 6.00 mm. At maximum power the radii are 6.00 mm and 5.50 mm, respectively. (The numbers can vary somewhat.) If the lens were in air, (a) what would...
An object placed 20 cm in front of a lens results in an image being formed...
An object placed 20 cm in front of a lens results in an image being formed 24 cm behind the lens. Each surface of the lens is convex (bulging away from the optical plane) with the same radius of curvature, and the index of refraction of the glass composing the lens is Tiens =1.4. What is the radius of curvature of either side of this lens (to the nearest tenth of a cm)? Note, once again, the focal length of...
The near point of an eye is 100 cm. A corrective lens is to be used...
The near point of an eye is 100 cm. A corrective lens is to be used to allow this eye to clearly focus on objects 26.0 cm in front of it. (a) What should be the focal length of the lens? (b) What is the power of the needed corrective lens?
A lens is formed from a plastic material that has an index of refraction of 1.55....
A lens is formed from a plastic material that has an index of refraction of 1.55. If the radius of curvature of one surface is 1.25 m and the radius of curvature of the other surface is 1.75 m, use the lens maker's equation to calculate the focal length and the power of the lens.
If the cornea were simply a thin lens in air, what would be its focal length?...
If the cornea were simply a thin lens in air, what would be its focal length? Express your answer in millimeters to three significant figures. Measurements on the cornea of a person's eye reveal that the magnitude of the front surface radius of curvature is 7.88 mm, while the magnitude of the rear surface radius of curvature is 7.28 mm (see (Figure 1)), and that the index of refraction of the comea is 1.38 FAXD ? mm Submit Request Answer...
A 6.00 cm tall toy camera is placed 2.50 cm in front of a CONVEX lens....
A 6.00 cm tall toy camera is placed 2.50 cm in front of a CONVEX lens. The VIRTUAL image has a magnitude of 3.50 cm from the lens. What is the height of the image?
The figure illustrates qualitatively a corrective lens of -2.75 diopters. R 8.46 cm The lens material is CR-39 monomer, with an index of refraction of 1.499. Calculate R, the radius of curvature of the outer surface for the lens. Note: the diopter is a measure of the refractive power of a lens, and equals the reciprocal of the focal length in meters. (Example: for +3 diopters, f=0.333 meters.) -18.54 cm Submit Answer Incorrect. Tries 4/12 Previous Tries
A typical human lens has an index of refraction of 1.430. The lens has a double convex shape, but its curvature can be varied by the ciliary muscles acting around its rim. At minimum power, the radius of the front of the lens is 10.0 mm, whereas that of the back is 6.00 mm. At maximum power, the radii are 6.50 mm and 5.50 mm, respectively. If the lens were in air, what would be the maximum power and associated...
An object placed 20 cm in front of a lens results in an image being formed 24 cm behind the lens. Each surface of the lens is convex (bulging away from the optical plane) with the same radius of curvature, and the index of refraction of the glass composing the lens is Tiens =1.4. What is the radius of curvature of either side of this lens (to the nearest tenth of a cm)? Note, once again, the focal length of...
If the cornea were simply a thin lens in air, what would be its focal length? Express your answer in millimeters to three significant figures. Measurements on the cornea of a person's eye reveal that the magnitude of the front surface radius of curvature is 7.88 mm, while the magnitude of the rear surface radius of curvature is 7.28 mm (see (Figure 1)), and that the index of refraction of the comea is 1.38 FAXD ? mm Submit Request Answer...
