Please answer the following. Don't worry about using Phet.
Homework Answers
Add Answer to:
Please answer the following. Don't worry about using Phet.

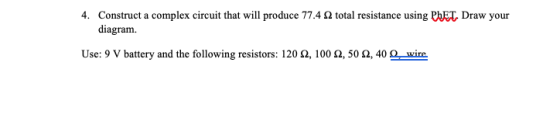

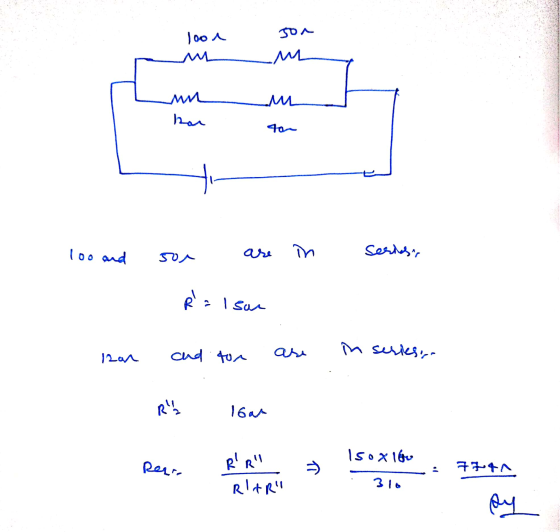

4. Construct a complex circuit that will...
NAME RESISTORS IN SERIES CIRCUITS Construct the circuit Figure using The Circuit Construction KCK) simulation at...
NAME RESISTORS IN SERIES CIRCUITS Construct the circuit Figure using The Circuit Construction KCK) simulation at the Presite - 400, R; -90 and R, -120 . Use the ammeter moving it to take readings in the different places as seen in Figure 1A. A As and Ar). Then use the voltmeter to take voltage readings Ms. V. Vand V. Calculate Rusing Ohms Law (Vol for the total resistance in last column. Adjust-20.0V.FI out Table 1 www Table 1 Resistor Gm...
(3 points for each blank cell in table, 30 points total) The following diagram shows a...
(3 points for each blank cell in table, 30 points total) The following diagram shows a circuit of three resistors in series connected to a 9V battery. A voltmeter measures the voltage across R1 and finds that it is 2.62V. Use the resistor color coding chart and Ohm's Law to complete the table below 2. Resistor Colors Resistance (k) Voltage Across (V) Current through (mA) Circuit Element R1 R2 R3 Total 2.62 V reen-black-red-gold red-red-red-gold brown-black-orange-gold 9V 2.62 V R1...
Please answer the following question: Problem 2: a) Consider the circuit below. If the potential of...
Please answer the following question:
Problem 2: a) Consider the circuit below. If the potential of the battery is V = 120 V, determine the power consumption of each resistor. 50Ω w B V 1003 $10000 D с b) You have three resistors with values 5 92, 10 22 and 15 22, respectively. Show how you would connect all three of them such that the equivalent resistance to be: i) 1122 ii) 13.7522 iii) 2.732
Please answer the following question and show all work: Problem 2: a) Consider the circuit below....
Please answer the following question and show all work:
Problem 2: a) Consider the circuit below. If the potential of the battery is V = 120 V, determine the power consumption of each resistor. A 500 w 1003 $10009 D с b) You have three resistors with values 52, 10 92 and 152, respectively. Show how you would connect all three of them such that the equivalent resistance to be: i) 112 ii) 13.752 iii) 2.732
i) Please explain dlearly why the following is not possible. There is a circuit with a...
i) Please explain dlearly why the following is not possible. There is a circuit with a 1.5 V battery, 2 resistors (1 12, 112) along with wires and has a total current of 3 A. Please sketch this circuit as well. II) In your house, there are devices/resistors that need to be put in a circuit as you plug and unplug them. And each device requires a certain amount of power as well. So if you add more devices into...
Can someone help me finish my prelab please? PROCEDURE (Pre-lab) Series: Draw a schematic diagram of...
Can someone help me finish my prelab please? PROCEDURE (Pre-lab) Series: Draw a schematic diagram of a series circuit consisting of a 24V d-c voltage source and 5 series resistors. Label the resistors R1 through R5. Use standard symbols to represent the voltage source and resistors. Also, make sure to label the REFERENCE (lowest point of potential). The resistor values to be used in the experiment are 220 Ω, 330 Ω, 470 Ω, 560 Ω, and 680 Ω. Label points...
step by step please Using the circuit diagram below, answer the following questions: Α Ω Β...
step by step please
Using the circuit diagram below, answer the following questions: Α Ω Β Ω 15.0 V (C Ω D Ω ma 15.0 v Assume the following resistor values for the resistors above: A-6 Ohms B-6 Ohms C-8 Ohms D-4 Ohms a) What is the value of l at resistor AQ? (12 points) b) What is the potential difference across the Ba? (4 points) What is the power at the Co? It is circled for you in the...
please answer both if possible thank you b. Three electric bulbs are connected in circuit with...
please answer both if possible thank you
b. Three electric bulbs are connected in circuit with the 120 V battery as shown in the circuit diagram below . With the switch open (a) The manufacturer specifications for the cach bulb are 120V, 40W; 120V, 20W and 120V, 60W respectively. Using this specifications (means apply a 120 V to calculate the resistance of the bulbs), calculate the resistance of each bulb, note that the resistance of the bulbs remain constant. (R-360...
Parallel Circuit Please answer the following Questions. heres the circuit .What can you infer about the...
Parallel Circuit
Please answer the following Questions.
heres the circuit
.What can you infer about the current through each of the bulbs as each additional bulb is added in parallel? Explain. What can you infer about the current through the battery as each additional bulb is added in parallel? Explain. . What can you infer about the current through the whole circuit as each additional bulb is added in parallel? Explain. Refer back to your rule developed in section 2...
please help me with these 2 questions please all 2 please i need them please Exercise...
please help me with these 2 questions please all 2 please i need
them please
Exercise 25.46 14 of 21 Constants Consider the circuit of the figure (Figure 1). Part A 12 resistor? What is the total rate at which electrical energy is dissipated in the 5.0 Express your answer using two significant figures. IVO A20 ? Figure 1 of 1 > Submit Request Answer 1.6 12 16.0V w a b Part B 5.0 12 9.012 1.4 12 8.0V What...
NAME RESISTORS IN SERIES CIRCUITS Construct the circuit Figure using The Circuit Construction KCK) simulation at the Presite - 400, R; -90 and R, -120 . Use the ammeter moving it to take readings in the different places as seen in Figure 1A. A As and Ar). Then use the voltmeter to take voltage readings Ms. V. Vand V. Calculate Rusing Ohms Law (Vol for the total resistance in last column. Adjust-20.0V.FI out Table 1 www Table 1 Resistor Gm...
(3 points for each blank cell in table, 30 points total) The following diagram shows a circuit of three resistors in series connected to a 9V battery. A voltmeter measures the voltage across R1 and finds that it is 2.62V. Use the resistor color coding chart and Ohm's Law to complete the table below 2. Resistor Colors Resistance (k) Voltage Across (V) Current through (mA) Circuit Element R1 R2 R3 Total 2.62 V reen-black-red-gold red-red-red-gold brown-black-orange-gold 9V 2.62 V R1...
Please answer the following question:
Problem 2: a) Consider the circuit below. If the potential of the battery is V = 120 V, determine the power consumption of each resistor. 50Ω w B V 1003 $10000 D с b) You have three resistors with values 5 92, 10 22 and 15 22, respectively. Show how you would connect all three of them such that the equivalent resistance to be: i) 1122 ii) 13.7522 iii) 2.732
Please answer the following question and show all work:
Problem 2: a) Consider the circuit below. If the potential of the battery is V = 120 V, determine the power consumption of each resistor. A 500 w 1003 $10009 D с b) You have three resistors with values 52, 10 92 and 152, respectively. Show how you would connect all three of them such that the equivalent resistance to be: i) 112 ii) 13.752 iii) 2.732
i) Please explain dlearly why the following is not possible. There is a circuit with a 1.5 V battery, 2 resistors (1 12, 112) along with wires and has a total current of 3 A. Please sketch this circuit as well. II) In your house, there are devices/resistors that need to be put in a circuit as you plug and unplug them. And each device requires a certain amount of power as well. So if you add more devices into...
step by step please
Using the circuit diagram below, answer the following questions: Α Ω Β Ω 15.0 V (C Ω D Ω ma 15.0 v Assume the following resistor values for the resistors above: A-6 Ohms B-6 Ohms C-8 Ohms D-4 Ohms a) What is the value of l at resistor AQ? (12 points) b) What is the potential difference across the Ba? (4 points) What is the power at the Co? It is circled for you in the...
please answer both if possible thank you
b. Three electric bulbs are connected in circuit with the 120 V battery as shown in the circuit diagram below . With the switch open (a) The manufacturer specifications for the cach bulb are 120V, 40W; 120V, 20W and 120V, 60W respectively. Using this specifications (means apply a 120 V to calculate the resistance of the bulbs), calculate the resistance of each bulb, note that the resistance of the bulbs remain constant. (R-360...
Parallel Circuit
Please answer the following Questions.
heres the circuit
.What can you infer about the current through each of the bulbs as each additional bulb is added in parallel? Explain. What can you infer about the current through the battery as each additional bulb is added in parallel? Explain. . What can you infer about the current through the whole circuit as each additional bulb is added in parallel? Explain. Refer back to your rule developed in section 2...
please help me with these 2 questions please all 2 please i need
them please
Exercise 25.46 14 of 21 Constants Consider the circuit of the figure (Figure 1). Part A 12 resistor? What is the total rate at which electrical energy is dissipated in the 5.0 Express your answer using two significant figures. IVO A20 ? Figure 1 of 1 > Submit Request Answer 1.6 12 16.0V w a b Part B 5.0 12 9.012 1.4 12 8.0V What...
