1. A 35 g bullet is fired into the bob of a ballistic pendulum of mass...

Question

Question

science physics

Answer 1

Answer #1

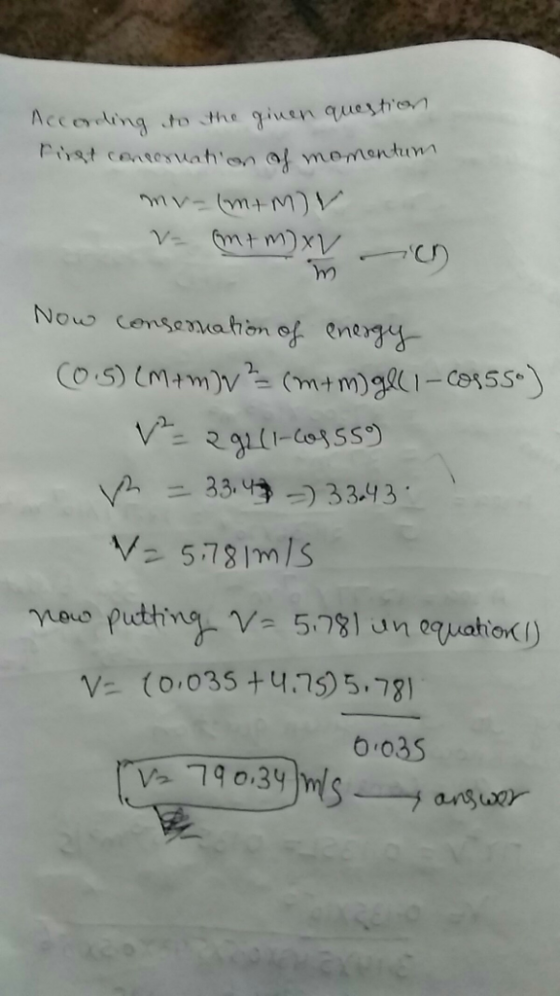

Please rate if it helps!! ng .to、th e giuen questen CD hn 2 YE (0,035+4.79 5,781 6 035 V 14 0 3

Answer 2

Similar Homework Help Questions

A bullet of mass 8 g is fired into a 1.2 kg ballistic pendulum (a block...

A bullet of mass 8 g is fired into a 1.2 kg ballistic pendulum (a block of wood acting as the pendulum bob of a thin metal arm attached to a low friction pivot point) that is initially at rest. The bullet exits the block of wood with a speed of 180 m/s and the wooden block swings from its lowest point to a maximum height of 9.2 cm above that location. Determine the velocity of the bullet before it...
In a ballistic pendulum an object of mass is fired with an initial speed at a pendulum bob. The bob has a mass, which...

In a ballistic pendulum, an object of mass m is fired with an initial speed v0 at a pendulum bob. The bob has a mass M, which is suspended by a rod of length L and negligible mass. After the collision, the pendulum and object stick together and swing to a maximum angular displacement θ as shown.A. Find an expression for v0, the initial speed of the fired object.Express your answer in terms of some or all of the variables m, M, L, and...
In a ballistic pendulum, a bullet of mass m is fired into a stationary hanging block...

In a ballistic pendulum, a bullet of mass m is fired into a stationary hanging block of mass M. On impact, the bullet is trapped inside the block, which then slides up to a maximum height of h = 4.06 cm. If the mass of the block (M) is 4.7 times larger than the mass of the bullet (m), determine the speed v which the bullet must have had prior to impact.

A ballistic pendulum is used to measure the speed of bullets. In these experiments, a bullet...

A ballistic pendulum is used to measure the speed of bullets. In these experiments, a bullet is fired into a large block suspended by wires. The bullet is embedded in the block and the collision is inelastic. After the impact, the block swings forward and rises. a. If a 2.1-g bullet is fired at 440 m/s into a 4.0 kg block, how far will it swing up? (what is the maximum vertical displacement of the block?) b. Find an equation...
Question 1 5 pts In a ballistic pendulum, a bullet of mass m is fired into...

Question 1 5 pts In a ballistic pendulum, a bullet of mass m is fired into a stationary hanging block of mass M. On impact, the bullet is trapped inside the block, which then slides up to a maximum height of h - 11.26 cm. If the mass of the block (M) is 2.3 times larger than the mass of the bullet (m), determine the speed v which the bullet must have had prior to impact. M+m m
A 10.0 g rifle bullet is fired with a speed of 370 m/s into a ballistic...

A 10.0 g rifle bullet is fired with a speed of 370 m/s into a ballistic pendulum with mass 7.00 kg , suspended from a cord 70.0 cm long. A) Compute the initial kinetic energy of the bullet; B) Compute the kinetic energy of the bullet and pendulum immediately after the bullet becomes embedded in the pendulum. C) Compute the vertical height through which the pendulum rises.

8. A bullet of mass m and speed v passes completely through a pendulum bob of...

8. A bullet of mass m and speed v passes completely through a pendulum bob of mass M. The bullet emerges with a speed of v/2. The pendulum bob is suspended by a stiff rod of length 1 and negligible mass. Use conservation of energy and momentum to find the minimum value of v such that the bob will barely swing through a complete vertical circle.
In a ballistic pendulum an object of mass m is fired with an initial speed v0 at a pendulum bob.

In a ballistic pendulum an object of mass m is fired with an initial speed v0 at a pendulum bob. The bob has a mass M, which is suspended by a rod of length L and negligible mass. After the collision, the pendulum and object stick together and swing to a maximum angular displacement θ as shown.Part AFind an expression for vo, the initial speed of the fired object. Express your answer in terms of some or all of the...
A ballistic pendulum malfunctions, and the bullet collides elastically with the pendulum. The bullet has a...

A ballistic pendulum malfunctions, and the bullet collides elastically with the pendulum. The bullet has a mass of 5 grams and a speed of 100 m/s. The pendulum has a mass of 2 kg and a length of 0.5 m. To what angle (from vertical) does the pendulum swing?

A bullet of mass 20 g is fired into a ballistic pendulum of mass 5 kg....

A bullet of mass 20 g is fired into a ballistic pendulum of mass 5 kg. The center of gravity of the pendulum rises 10 cm after being struck. Find the initial velocity of the bullet.
