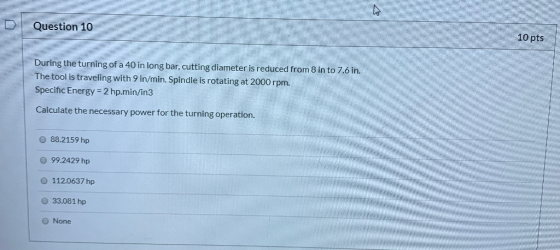

Question 10 10 pts During the turning of a 40 in long bar, cutting diameter is reduced from 8 in to 7.6 in. The tool is trave

engineering   Mechanical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

pecific cutting energy = power required/Material removal rate

Material removal rate =pi/4*(di2-df2)*feed velocity =3.14/4*(82-7.62)*9 =44.107 in3/min

so power required = 2*44.107 = 88.2159 hp

Ans A
