A refrigeration system operates on an ideal vapor compression using R-12 with an evaporator temperature of...

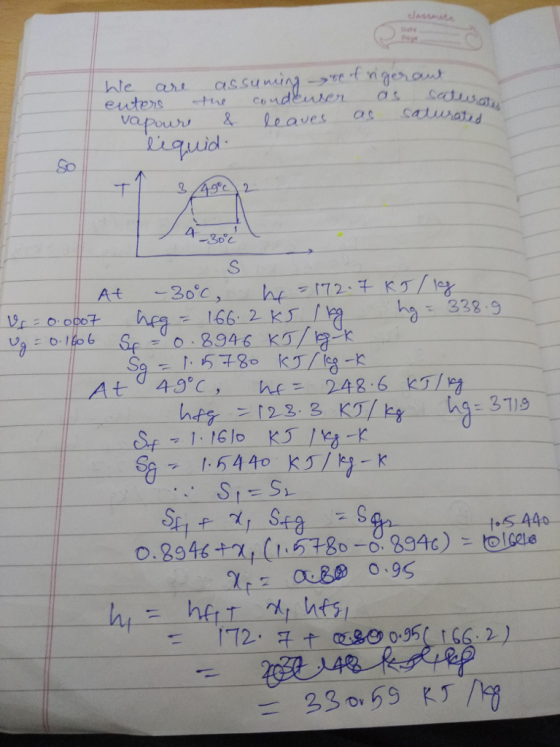

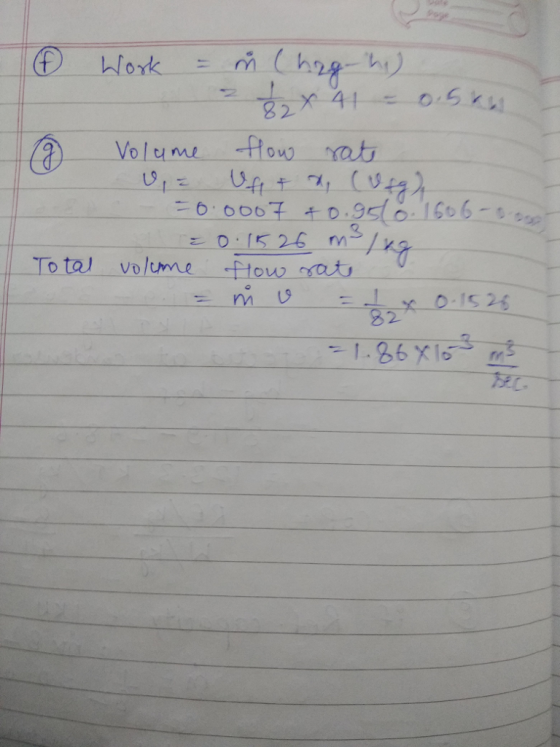

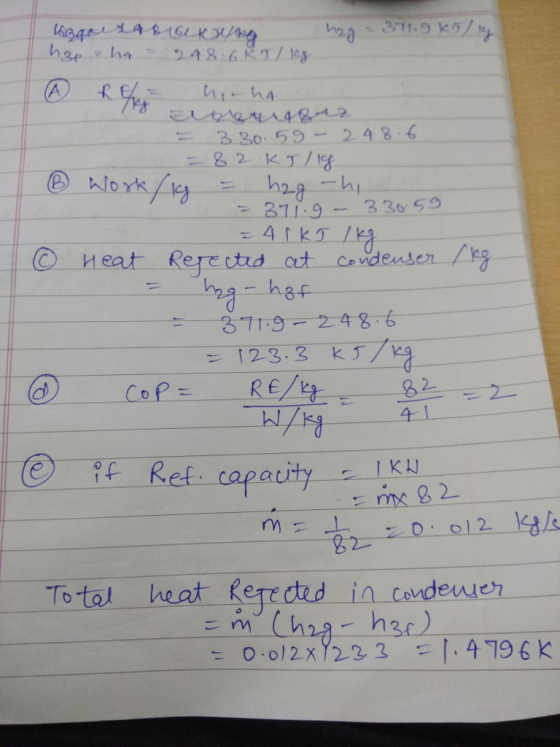

A refrigeration system operates on an ideal vapor compression using R-12 with an evaporator temperature of minus 30 °C and condenser exit temperature of 49 °C. Determine a) the refrigerating effect per kg, b) the work per kg, c) the heat rejected at the condenser per kg, d) the COP. For a refrigerating capacity of 1 kW, determine e) the total heat rejected at the condenser, f) the work, g) the volume flow rate.
Homework Answers
