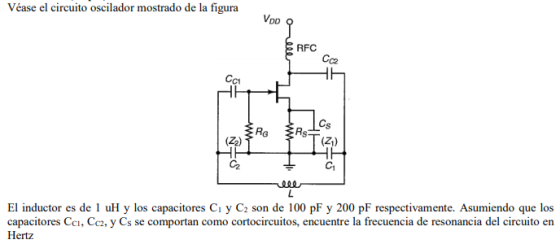

Véase el circuito oscilador mostrado de la figura VOD RFC Cc2 Сс w RG Rs (Z) Cs (2) th C C L El inductor es de 1 uH y los cap

See the oscillator circuit shown in the figure

The inductor is 1 uH and the capacitors C1 and C2 are 100 pF and 200 pF respectively. Assuming that the
Capacitors CC1, CC2, and CS behave like short circuits, find the resonant frequency of the circuit in
Hertz

0 0
Add a comment Improve this question Transcribed image text
Answer #1

The inductor is 1 uH and the capacitors C1 and C2 are 100 pF and 200 pF respectively.

Assuming that the Capacitors CC1, CC2, and CS behave like short circuits

By This information we can form modified circuit,we can idenify that it is a collpits oscialltor,

The solution is given below In a systematic manner:

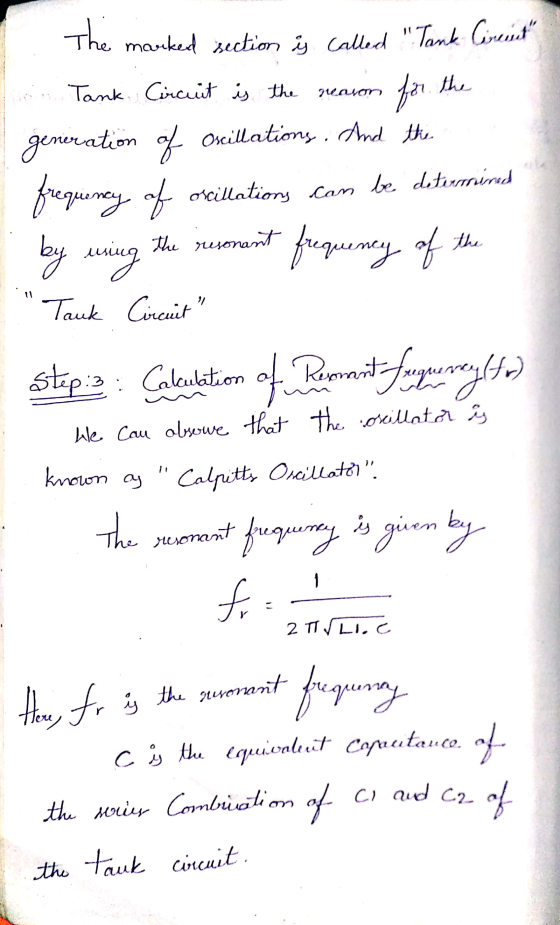

Solution stepl: Given ci 100 pF C2 = 200 pF ТАН deo given CCI, CC2 and co behaves like short circuits. Stip2 : There ModifiedThe marked section is called Tank Cireset Tank. Circuit is the 2eacn for the generation of Oscillations. And the oscillatioC = (C1X02) cltc2 (100x10-12 x 200x10-12) (100x10-12 + 200x10-12) 66.667 PF 11 J Resonant frequency for 2T (J1X104) (66-667x1

Add a comment
Know the answer?
Add Answer to:
See the oscillator circuit shown in the figure The inductor is 1 uH and the capacitors...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.
