Homework Answers

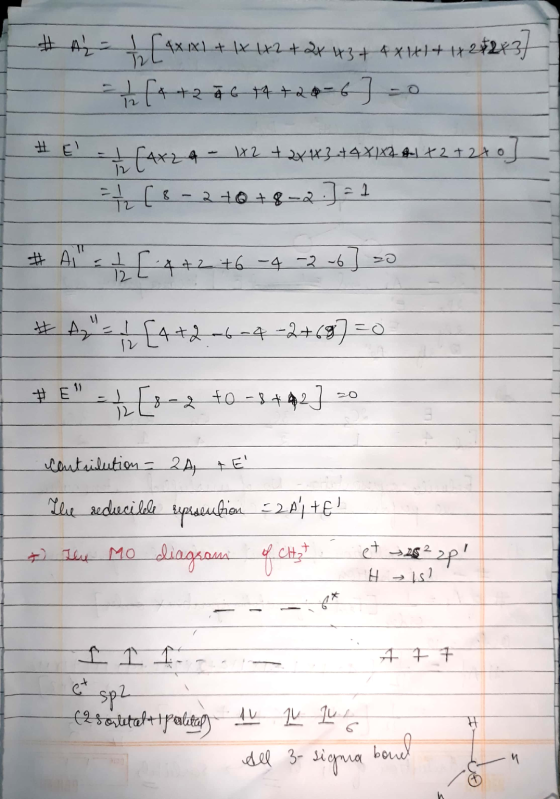

![- AL= 1 [4x2x1 + 1+ 1x2 + 2x 43 + 4x + 1 + 1+ 2+2 x 35 -2 64+2 76 +4+2=6] -0 #E! Et f4724 - 1x2 +2444344X1X2 41+2+280 (8-2+Q+](http://img.homeworklib.com/questions/1da09bb0-58ee-11eb-b33d-e50c51eff0bc.png?x-oss-process=image/resize,w_560)
Add Answer to:

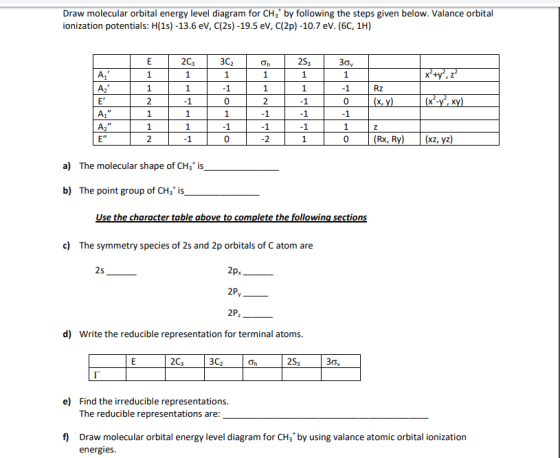

Draw molecular orbital energy level diagram for CH3 by following the steps given below. Valance orbital...
Sketch the qualitative molecular orbital energy diagram for water. Inclu symmetry labels for each...
Sketch the qualitative molecular orbital energy diagram for water. Inclu symmetry labels for each molecular orbital. Indicate whether each molecular bonding, nonbonding, or anti-bonding and don't forget the σ and π labels. Remember to construct appropriate group orbitals from the outer H-atoms. Describe the bonding of this molecule from the MO diagram you constructed, including the location s) of the lone pair(s). The 2s and 2p energies for oxygen are -26 and -13 eV, respectively, and the ls energy of...
Draw a molecular-orbital diagram for LiH and write the electronic configuration. Indicate the relative energies of the...
Draw a molecular-orbital diagram for LiH and write the
electronic configuration.
Indicate the relative energies of the Li 2s and H 1s atomic
orbitals by reference to the VOIE values in Table 4-4.
The first ionization energy of LiH has not been measured, but
calculation predicts it to be about 8 eV.
To support this value, which atom in LiH must have a partial
negative charge?
(table 4-4 in pic)
10. Draw a molecular-orbital diagram for LiH and write the...
Draw a molecular-orbital diagram for LiH and write the electronic configuration. Indicate the relative energies of...
Draw a molecular-orbital diagram for LiH and write the
electronic configuration.
Indicate the relative energies of the Li 2s and H 1s atomic
orbitals by reference to the VOIE values in Table 4-4.
The first ionization energy of LiH has not been measured, but
calculation predicts it to be about 8 eV.
To support this value, which atom in LiH must have a partial
negative charge?
(table 4-4 in pic)
10. Draw a molecular-orbital diagram for LiH and write the...
Molecular Orbital Model 3. Draw the molecular orbital energy level diagram for the following substances, and com...
Molecular Orbital Model 3. Draw the molecular orbital energy level diagram for the following substances, and complete the tables. Write the ground state molecular orbital electron contiguration | Molecule Enetsy Level Diagram including each atom's energy levels) Molecular orbital clectron contig Bond Order include calculation Paramagnetic or diamagnetic b. N: Molecular orbital electron config Bond Order Paramagnetic or diamagnetic C. Based on the bond orders of N, and N.*, which has the stronger bond? 251 d. Ne Molecular orbital electron...
The following valence molecular orbital energy level diagram is appropriate for which one of the listed...
The following valence molecular orbital energy level diagram is appropriate for which one of the listed species? o*2P ** 2p 02p 11 1! 712p 0*28 11 11 11 02 a. B22+ O b. C₂2+ c. N22+ O d. F22+ O e.0₂2+ Il Proctorio is sharing your screen. Stop sharing
13. (14 pts) MO Theory Draw the complete (core and valence) molecular orbital energy level diagram...
13. (14 pts) MO Theory Draw the complete (core and valence) molecular orbital energy level diagram for the homonuclear diatomic molecule Be2. Use standard MO symbols to label the energy levels (That is: o, o, , or n*, as needed, with subscripts indicating which atomic orbitals formed them.) a. Sketch the molecular orbital formed when two 2p orbitals, one each on each Be atom, overlap to form a o antibonding MO b. Using your MO energy level diagram in (a),...
Use the molecular orbital energy diagram below to answer the questions about bond order for the...
Use the molecular orbital energy diagram below to answer the questions about bond order for the positive ion C2 Number of Bonding Number of Antibonding C2 Valence Electrons Valence Electrons Bond Order This corresponds to A. Single bond B. Double bond C. Triple bond D. Half of a bond E. Between a single and double bond F. Between a double and a triple bond G. No bond, C2 does not form. carbonA MO's carbonB 2p\ 2s
Diatomic Molecular Orbital Energy Diagram Given that the following MO-energy-level diagram applies to the the diatomic...
Diatomic Molecular Orbital Energy Diagram Given that the following MO-energy-level diagram applies to the the diatomic molecular anion BC, match the letter label of each energy level with the corresponding orbital descriptor. . B BC . . c. c 1pts Submit Answer Tries 0/5 Does this diagram display the effect of s-p orbital mixing? Yes! No! 25pts Submit Answer Tries 0/1 Which kind of magnetism would be observed for this anion? O paramagnetism diamagnetism 25pts Submit Answer Tries 0/1 C...
Draw a molecular orbital energy level diagram for O2 and NO. Compare and contrast the formation...
Draw a molecular orbital energy level diagram for O2 and NO. Compare and contrast the formation of molecular orbitals from atomic orbitals in homonuclear and heteronuclear diatomic molecules. Make sure to address parity in your discussion.
1) 2) 3) 4) 5) Use the molecular orbital energy diagram below to answer the questions...
1)
2)
3)
4)
5)
Use the molecular orbital energy diagram below to answer the questions about bond order for the negative ion By. Number of Bonding Number of Antibonding B2 Valence Electrons Valence Electrons Bond Order This corresponds to: A. Single bond B. Double bond C. Triple bond D. Half of a bond E. Between a single and double bond F. Between a double and a triple bond G. No bond, B2" does not form. boron MO's boron 2p...
Sketch the qualitative molecular orbital energy diagram for water. Inclu symmetry labels for each molecular orbital. Indicate whether each molecular bonding, nonbonding, or anti-bonding and don't forget the σ and π labels. Remember to construct appropriate group orbitals from the outer H-atoms. Describe the bonding of this molecule from the MO diagram you constructed, including the location s) of the lone pair(s). The 2s and 2p energies for oxygen are -26 and -13 eV, respectively, and the ls energy of...
Draw a molecular-orbital diagram for LiH and write the
electronic configuration.
Indicate the relative energies of the Li 2s and H 1s atomic
orbitals by reference to the VOIE values in Table 4-4.
The first ionization energy of LiH has not been measured, but
calculation predicts it to be about 8 eV.
To support this value, which atom in LiH must have a partial
negative charge?
(table 4-4 in pic)
10. Draw a molecular-orbital diagram for LiH and write the...
Draw a molecular-orbital diagram for LiH and write the
electronic configuration.
Indicate the relative energies of the Li 2s and H 1s atomic
orbitals by reference to the VOIE values in Table 4-4.
The first ionization energy of LiH has not been measured, but
calculation predicts it to be about 8 eV.
To support this value, which atom in LiH must have a partial
negative charge?
(table 4-4 in pic)
10. Draw a molecular-orbital diagram for LiH and write the...
Molecular Orbital Model 3. Draw the molecular orbital energy level diagram for the following substances, and complete the tables. Write the ground state molecular orbital electron contiguration | Molecule Enetsy Level Diagram including each atom's energy levels) Molecular orbital clectron contig Bond Order include calculation Paramagnetic or diamagnetic b. N: Molecular orbital electron config Bond Order Paramagnetic or diamagnetic C. Based on the bond orders of N, and N.*, which has the stronger bond? 251 d. Ne Molecular orbital electron...
The following valence molecular orbital energy level diagram is appropriate for which one of the listed species? o*2P ** 2p 02p 11 1! 712p 0*28 11 11 11 02 a. B22+ O b. C₂2+ c. N22+ O d. F22+ O e.0₂2+ Il Proctorio is sharing your screen. Stop sharing
13. (14 pts) MO Theory Draw the complete (core and valence) molecular orbital energy level diagram for the homonuclear diatomic molecule Be2. Use standard MO symbols to label the energy levels (That is: o, o, , or n*, as needed, with subscripts indicating which atomic orbitals formed them.) a. Sketch the molecular orbital formed when two 2p orbitals, one each on each Be atom, overlap to form a o antibonding MO b. Using your MO energy level diagram in (a),...
Use the molecular orbital energy diagram below to answer the questions about bond order for the positive ion C2 Number of Bonding Number of Antibonding C2 Valence Electrons Valence Electrons Bond Order This corresponds to A. Single bond B. Double bond C. Triple bond D. Half of a bond E. Between a single and double bond F. Between a double and a triple bond G. No bond, C2 does not form. carbonA MO's carbonB 2p\ 2s
Diatomic Molecular Orbital Energy Diagram Given that the following MO-energy-level diagram applies to the the diatomic molecular anion BC, match the letter label of each energy level with the corresponding orbital descriptor. . B BC . . c. c 1pts Submit Answer Tries 0/5 Does this diagram display the effect of s-p orbital mixing? Yes! No! 25pts Submit Answer Tries 0/1 Which kind of magnetism would be observed for this anion? O paramagnetism diamagnetism 25pts Submit Answer Tries 0/1 C...
Draw a molecular orbital energy level diagram for O2 and NO. Compare and contrast the formation of molecular orbitals from atomic orbitals in homonuclear and heteronuclear diatomic molecules. Make sure to address parity in your discussion.
1)
2)
3)
4)
5)
Use the molecular orbital energy diagram below to answer the questions about bond order for the negative ion By. Number of Bonding Number of Antibonding B2 Valence Electrons Valence Electrons Bond Order This corresponds to: A. Single bond B. Double bond C. Triple bond D. Half of a bond E. Between a single and double bond F. Between a double and a triple bond G. No bond, B2" does not form. boron MO's boron 2p...
