The S.C. test on a 1-phase transformer, with the primary winding short-circuited and 30 V applied...

The S.C. test on a 1-phase transformer, with the primary winding short-circuited and 30 V applied to the secondary gave a wattmeter reading of 60 W and secondary current of 10 A. II the normal applied primary voltage is 200 V, the transformation ratio 1:2 and the full-load secondary current 10 A, calculate the secondary p.d. at full-load current for (a) unity power factor (b) power factor 0.8 lagging.

these are the answers [ 394 V; 377.6 V ]

engineering   Electrical-Engineering
1 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

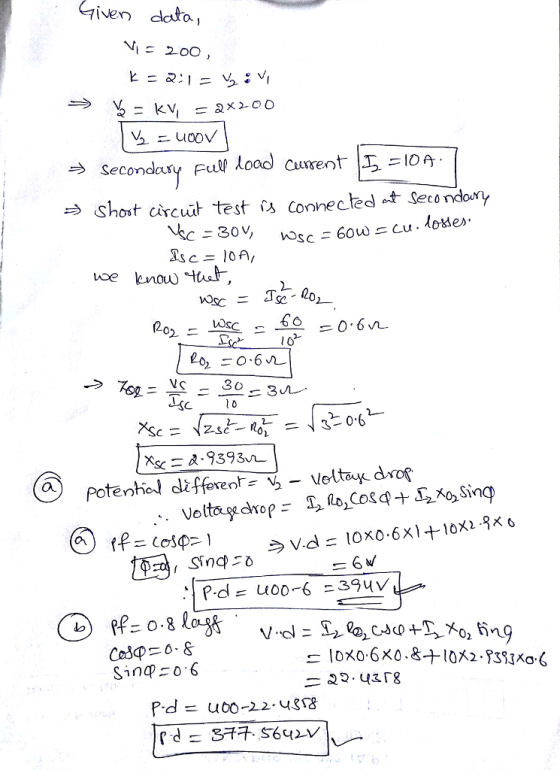

Tiven dato Vi 200 , → Secondary Fulf load curent |J-IOA shot ccut test connecdt Seco ndoy l 0 Potentiel diffoxenh
