Do any equipotential lines cross one another?

Question

Question

physics

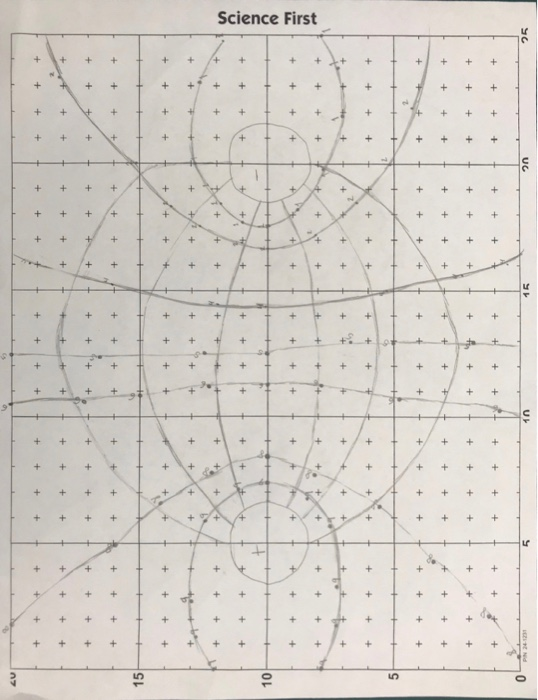

+ + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + 9 + + + + + + Science First +

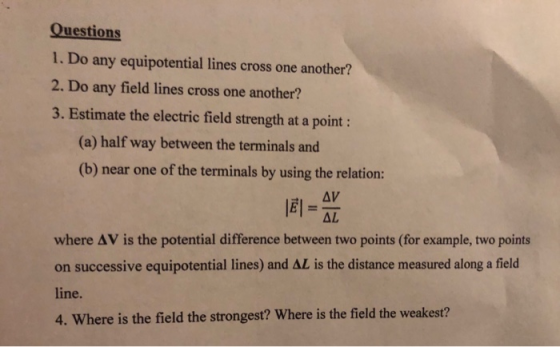

Questions 1. Do any equipotential lines cross one another? 2. Do any field lines cross one another? 3. Estimate the electric

Questions

Do any equipotential lines cross one another?
Do any field lines cross one another?
Estimate the electric field strength at a point :
(a) half way between the terminals and
(b) near one of the terminals by using the relation: where AV is the potential difference between two points (for example, two points on successive equipotential lines) and AL is the distance measured along a field line.
Where is the field the strongest? Where is the field the weakest?

science Advanced-Physics

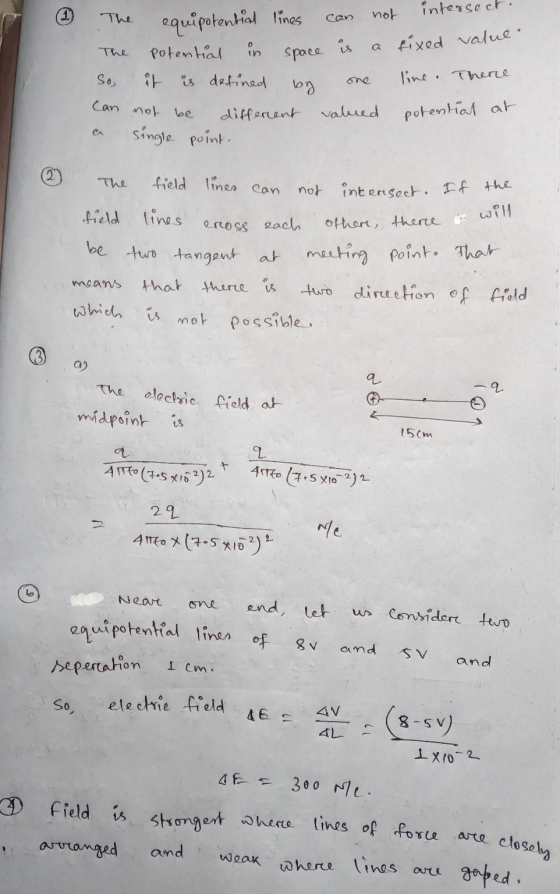

Answer 1

✔ Recommended Answer

Answer #1

Answer 2
