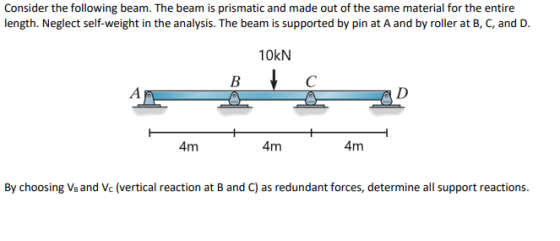

Consider the following beam. The beam is prismatic and made out of the same material for the entire length. Neglect self-weight in the analysis. The beam is supported by pin at A and by roller at B, C, and D 10kN 4m 4m 4m By choosing Vs and Vc (vertical reaction at B and C) as redundant forces, determine all support reactions

engineering   Civil-Engineering
1 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

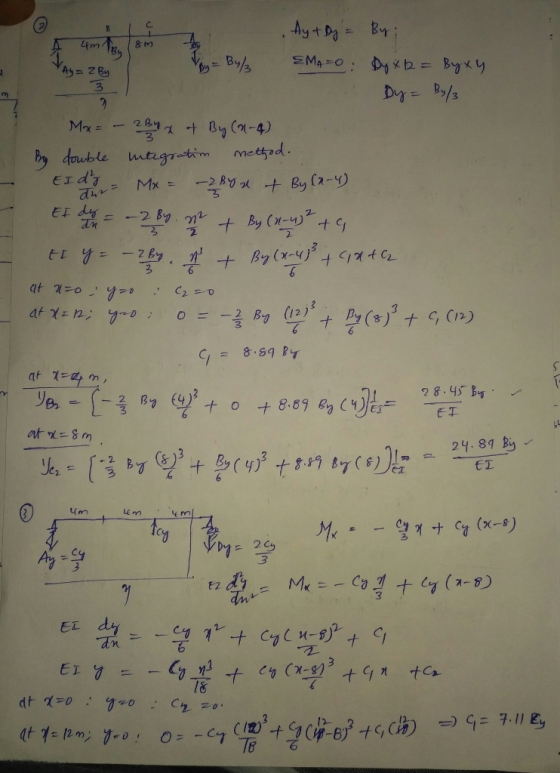

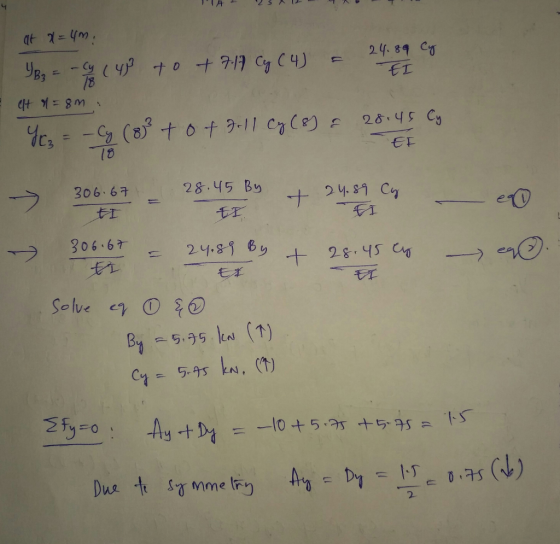

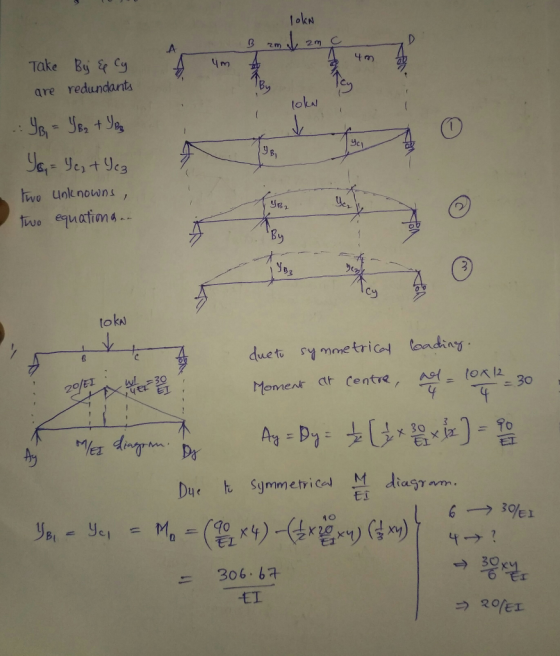

Answer #1

0 0
