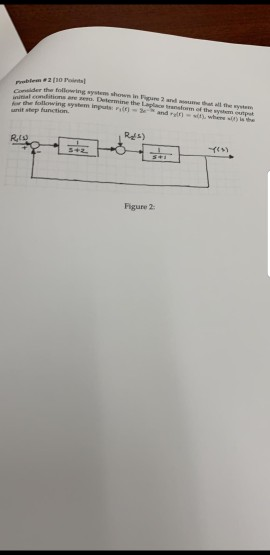

blem 2110 the shown in Fare 2 and that the wym landen. Den the the following system inte r norm of the we unit step function.

0 0
Add a comment Improve this question Transcribed image text
Answer #1

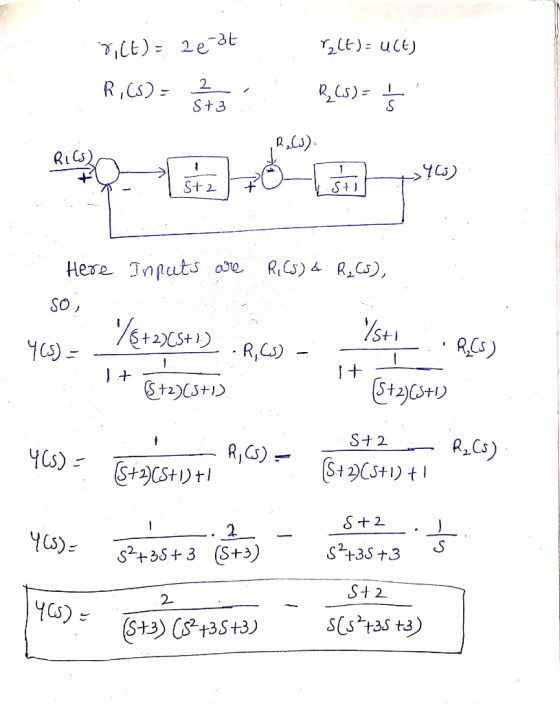

,LE)= UCE) ,CE) = 2e-3t R,CS) = 2. R_CS) = R,CJ). RiCS) 463) Ri CS) & R, CS), Here Inputs are So, Istı R,CS) · R,C3) – Ч6)- t

Add a comment
Know the answer?
Add Answer to:
blem 2110 the shown in Fare 2 and that the wym landen. Den the the following...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions
  • Q2 (a) Consider the control system shown in Figure Q1 (a). Obtain the closed-loop transfer function...

    Q2 (a) Consider the control system shown in Figure Q1 (a). Obtain the closed-loop transfer function of this system and by using MATLAB obtain the unit step response of this closed loop system - R(S) c(s) 36+1) (s + 1) Figure Q2 (a) (b) A sampler and a zero-order hold element were inserted into the system in Figure Q1(a) as shown in Figure Q1(b). Obtain the closed-loop pulse transfer function of this system and by using MATLAB or otherwise, obtain...

  • C(8) for the system shown in Figure 1. R(S Find the equivalent transfer function, Geg (s)...

    C(8) for the system shown in Figure 1. R(S Find the equivalent transfer function, Geg (s) 1 Cix) Figure 1. Block diagram 2s+1 s(5s+6Ge(s) = and Figure 2 shows a closed-loop transfer function, where G(s) 2. proper H(s) K+s. Find the overall closed-loop transfer function and express is as rational function. C(s) Ea (s) Controller R(s) +/ Plant G(s) Ge (s) Feedback H(s) Figure 2. Closed loop transfer function Construct the actuation Error Transfer Function associated with the system shown...

  • 3. Find the steady-state errors for inputs of 5u(t), 5tu(t), and 5t’u(t) to the system shown...

    3. Find the steady-state errors for inputs of 5u(t), 5tu(t), and 5t’u(t) to the system shown in Figure 2. The input signal u(t) is the unit step function. R(5) E(s) C(s) 120(s + 2) (s +3)(s + 4) Figure 2. Feedback control system

  • Example 3.3.1 A control system shown in following Figure G(s)=(s+1) C(s) N(s) E(s) G,(S) R(s) S...

    Example 3.3.1 A control system shown in following Figure G(s)=(s+1) C(s) N(s) E(s) G,(S) R(s) S G2(s) 100 G2(s)= s(s+10) H(s) H(s) 1 1. If n(t) 0, r(t)=5+2t+10t?, make e 0.1, k-? 2. If n(t)=t, r(t)=5+2t+10t2, k=1, e=? sS I ess0.1, k=?. Question14 A control system shown in following Figure, obtain the steady-state error transfer function E(s)/N(s). N(s) E(S) GS C(S) G.(S) R(s) H(s) Question12 Obtain both analytically and computationally the rise time, peak time, maximum overshoot, and settling time...

  • A closed-loop control system is shown in Figure 3 7000 +52 + 700s +1200) 1 Figure...

    A closed-loop control system is shown in Figure 3 7000 +52 + 700s +1200) 1 Figure 3 A. Determine the transfer function T(s) = Y(s)/R(s). B. Use a unit step input, R(s) = 1/s, and obtain the partial expansion for y(s). C. Predict the final value of y(t) for the unit step input.

  • PROBLEMS B-2-1. Simplify the block diagram shown in Figure 2-29 and obtain the closed-loop transfer function...

    PROBLEMS B-2-1. Simplify the block diagram shown in Figure 2-29 and obtain the closed-loop transfer function C(s)/RS). B-2-2. Simplify the block diagram shown in Figure 2-30 and obtain the closed-loop transfer function C(s)/R(s). B-2-3. Simplify the block diagram shown in Figure 2-31 and obtain the closed-loop transfer function C(s)/R(S). G1 R(S) CS) Figure 2-29 Block diagram of a system. Figure 2-30 Block diagram of a system. Figure 2-31 Block diagram of a system.

  • 4) a) Simplify and then find the transfer function of the system shown in Fig. 2;...

    4) a) Simplify and then find the transfer function of the system shown in Fig. 2; b) Determine the position, velocity and acceleration error constants for the transfer function to be found in a) to the unit step, unit ramp and unit parabolic inputs; c) Model the system given in Fig. 2 by Mat Lab/Simulink if it is possible and plot the output variable to the unit step and ramp functions Fig. 2

  • 1. Consider the unity feedback system shown in figure 1 with G(S) -2sti a) Determine the...

    1. Consider the unity feedback system shown in figure 1 with G(S) -2sti a) Determine the closed loop transfer function TF(s) γ(s) R(s) What are the poles and zeros of TF1(s)? [2 marks] b) For TF(s), calculate the DC gain, natural frequency and damping ratio. Classify TF1(s) as underdamped overdamped, critically damped or undamped [3 marks] c) Use the initial value theorem and final value theorem to determine the initial value (Mo) and final value (M) of the [2 marks]...

  • 2. (30 points) For the closed-loop control system shown below, C(s) R(s) 0.5 3s +1 1) Please find...

    PLEASE SOLVE IT ASAP ! WITH CLEAR STEPS !! 2. (30 points) For the closed-loop control system shown below, C(s) R(s) 0.5 3s +1 1) Please find the closed-loop transfer function C(s)/R(s). (15 points) 2) Without mathematically solving the response c(), please plot c() to a unit step input (r(t)-1). (15 points) 2. (30 points) For the closed-loop control system shown below, C(s) R(s) 0.5 3s +1 1) Please find the closed-loop transfer function C(s)/R(s). (15 points) 2) Without mathematically...

  • Problem 2. (20 pts) For the unity feedback system shown in the figure, specify the gain...

    Problem 2. (20 pts) For the unity feedback system shown in the figure, specify the gain K of the proportional controller so that the output y(t) has an overshoot of no more than 10% in response to a unit step. R9010 KG R(S) OF FOY(s) S(s + 2)
