3. Find the steady-state errors for inputs of 5u(t), 5tu(t), and 5t’u(t) to the system shown...
B2. Find the steady-state errors for inputs of 5 u(t), 5t-u(t), and 5t-u(t) to the system...

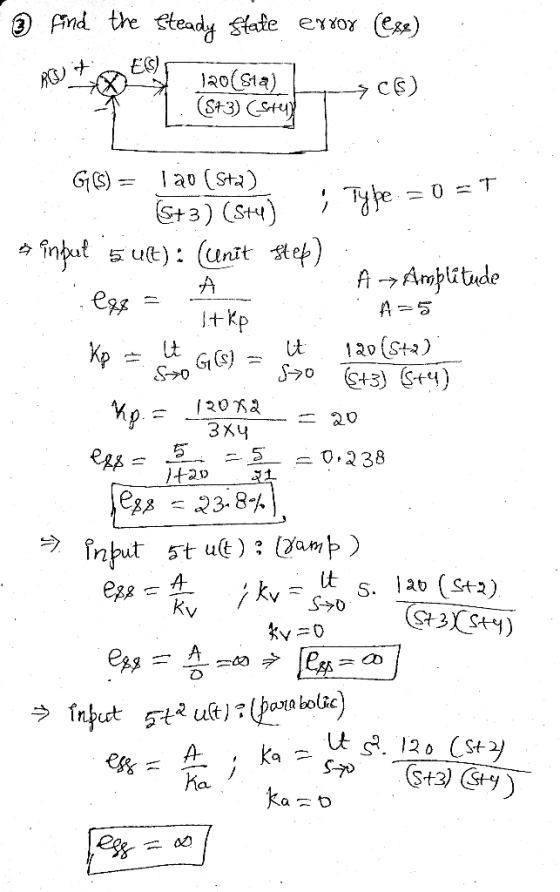

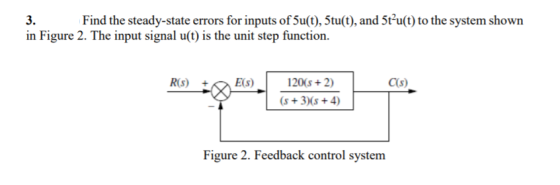

B2. Find the steady-state errors for inputs of 5 u(t), 5t-u(t), and 5t-u(t) to the system shown in the following figure. The function u(t) is the unit step. R(S) + E(S) C($) 120(s + 2) (s + 3)(s +4)
For the feedback control system shown to the right: Find the steady state error with respect...
For the feedback control system shown to the right: Find the steady state error with respect to the reference input and the disturbance for step, ramp, and parabolic inputs. Assume the inputs are 2s2 +3s+3 Equation Input Ste Ramp Parabolic H(s) = 1 r(t) = w(t) = 4t2 a. find the error to a step, ramp and parabolic input (reference input) b. find the error to a step. ramp and parabolic input (disturbance input)
Find the steady state error constants and the steady-state error response for the digital control system...
Find the steady state error constants and the steady-state error response for the digital control system shown below, if the inputs are: a. Unit Step, u(t) b. Unit Ramp, t u(t) c. Unit Parabola, 0.5t2u(t) 2. R(s) + C(s) s(s 2) T=0.1
04 Calculate the steady state errors for unit step, unit ramp and unit parabolic inputs for...
04 Calculate the steady state errors for unit step, unit ramp and unit parabolic inputs for the system shown in Figure bellow R(s)+ C(s) 1-e-Ts
please help to solve this. Thank you B1. Consider the second order system where damping ratio...
please help to solve this. Thank you
B1. Consider the second order system where damping ratio 3-0.6 and natural angular frequency Ww=5 rad/sec. find the rise time tr, peak time tp, maximum overshoot Mp, and settling time ts (2%) when the system is subjected to a unit-step input. I B2. Find the steady-state errors for inputs of 5 u(t), 5t u(t), and 5t.u(t) to the system shown in the following figure. The function u(t) is the unit step. R(S) +...
Controller Plant 10s+5 (s+.8)(s--1) DAG) A feedback control system is shown in Figure 4.48 (a) Determine...
Controller Plant 10s+5 (s+.8)(s--1) DAG) A feedback control system is shown in Figure 4.48 (a) Determine the system Type with respect to the reference input. (b) Compute the steady-state tracking errors for unit step and ramp inputs (e) Determine the system Type with respect to the disturbance input, w (d) Compute the steady-state errors for unit step and ramp đisturbance inputs 4.30
For the system shown below state the system type, and find the steady state error for an input of...
For the system shown below state the system type, and find the steady state error for an input of 50u(), 50rl(t), 5012U(t) 2. C(s) (s3) (Hint: Close the inner-loop first to get the standard unity feedback system with loop transfer function G(s)+3 +7s +15
For the system shown below state the system type, and find the steady state error for an input of 50u(), 50rl(t), 5012U(t) 2. C(s) (s3) (Hint: Close the inner-loop first to get the standard unity feedback...
Need help with 1a and 1b. Please show all work I (a) The unit step response...
Need help with 1a and 1b. Please show all work
I (a) The unit step response of a linear control system is shown below: 1.35 1.0 0 0.1 (sec) Find the transfer function of the second-order prototype system to model the system (b) The block diagram of a unity feedback control system is shown below. Find the step-, ramp-, and parabolic-error constants. The error signal is defined to be e(t). Find the steady-state errors in terms of K and Kt...
Problem 1: Steady-state error analvsis (a) A block diagram of a feedback control system is given ...
The Class Name is: MAE 318 System Dynamics and Control I
Problem 1: Steady-state error analvsis (a) A block diagram of a feedback control system is given below. Assuming that the tunable constant Khas a value that makes this closed-loop system stable, find the steady-state error of the closed-loop system for (a a step reference input with amplitude R, r(t)- R u(t) (ii) a ramp reference input with slope R, r(t) = Rt-us(t) R(s) Y(s) (s+2)(s +5) (b) A block...
12. (20 points) A unit feedback system has a forward path of G(s)10612S+5) Find the steady-...
12. (20 points) A unit feedback system has a forward path of G(s)10612S+5) Find the steady- s(s+3) (s2+3s+10) state errors when the system has the inputs of u(t), 2t u(t), respectively. Justify your answer R(s)+Es) Y(s)
B2. Find the steady-state errors for inputs of 5 u(t), 5t-u(t), and 5t-u(t) to the system shown in the following figure. The function u(t) is the unit step. R(S) + E(S) C($) 120(s + 2) (s + 3)(s +4)
For the feedback control system shown to the right: Find the steady state error with respect to the reference input and the disturbance for step, ramp, and parabolic inputs. Assume the inputs are 2s2 +3s+3 Equation Input Ste Ramp Parabolic H(s) = 1 r(t) = w(t) = 4t2 a. find the error to a step, ramp and parabolic input (reference input) b. find the error to a step. ramp and parabolic input (disturbance input)
Find the steady state error constants and the steady-state error response for the digital control system shown below, if the inputs are: a. Unit Step, u(t) b. Unit Ramp, t u(t) c. Unit Parabola, 0.5t2u(t) 2. R(s) + C(s) s(s 2) T=0.1
04 Calculate the steady state errors for unit step, unit ramp and unit parabolic inputs for the system shown in Figure bellow R(s)+ C(s) 1-e-Ts
please help to solve this. Thank you
B1. Consider the second order system where damping ratio 3-0.6 and natural angular frequency Ww=5 rad/sec. find the rise time tr, peak time tp, maximum overshoot Mp, and settling time ts (2%) when the system is subjected to a unit-step input. I B2. Find the steady-state errors for inputs of 5 u(t), 5t u(t), and 5t.u(t) to the system shown in the following figure. The function u(t) is the unit step. R(S) +...
Controller Plant 10s+5 (s+.8)(s--1) DAG) A feedback control system is shown in Figure 4.48 (a) Determine the system Type with respect to the reference input. (b) Compute the steady-state tracking errors for unit step and ramp inputs (e) Determine the system Type with respect to the disturbance input, w (d) Compute the steady-state errors for unit step and ramp đisturbance inputs 4.30
For the system shown below state the system type, and find the steady state error for an input of 50u(), 50rl(t), 5012U(t) 2. C(s) (s3) (Hint: Close the inner-loop first to get the standard unity feedback system with loop transfer function G(s)+3 +7s +15
For the system shown below state the system type, and find the steady state error for an input of 50u(), 50rl(t), 5012U(t) 2. C(s) (s3) (Hint: Close the inner-loop first to get the standard unity feedback...
Need help with 1a and 1b. Please show all work
I (a) The unit step response of a linear control system is shown below: 1.35 1.0 0 0.1 (sec) Find the transfer function of the second-order prototype system to model the system (b) The block diagram of a unity feedback control system is shown below. Find the step-, ramp-, and parabolic-error constants. The error signal is defined to be e(t). Find the steady-state errors in terms of K and Kt...
The Class Name is: MAE 318 System Dynamics and Control I
Problem 1: Steady-state error analvsis (a) A block diagram of a feedback control system is given below. Assuming that the tunable constant Khas a value that makes this closed-loop system stable, find the steady-state error of the closed-loop system for (a a step reference input with amplitude R, r(t)- R u(t) (ii) a ramp reference input with slope R, r(t) = Rt-us(t) R(s) Y(s) (s+2)(s +5) (b) A block...
12. (20 points) A unit feedback system has a forward path of G(s)10612S+5) Find the steady- s(s+3) (s2+3s+10) state errors when the system has the inputs of u(t), 2t u(t), respectively. Justify your answer R(s)+Es) Y(s)
