Homework Answers
Add Answer to:

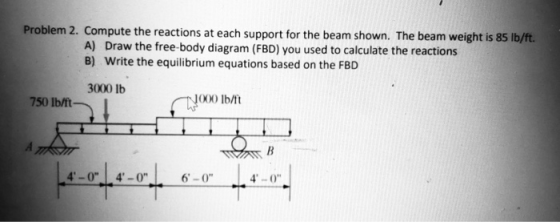

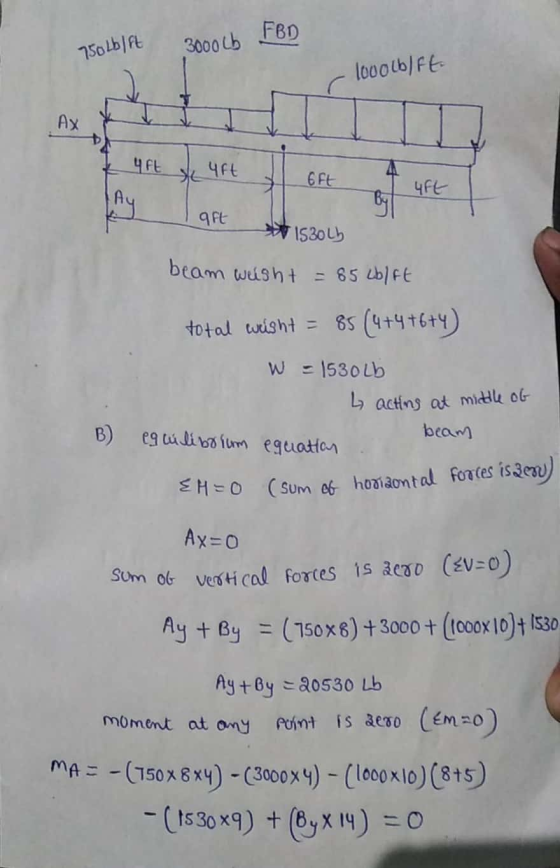

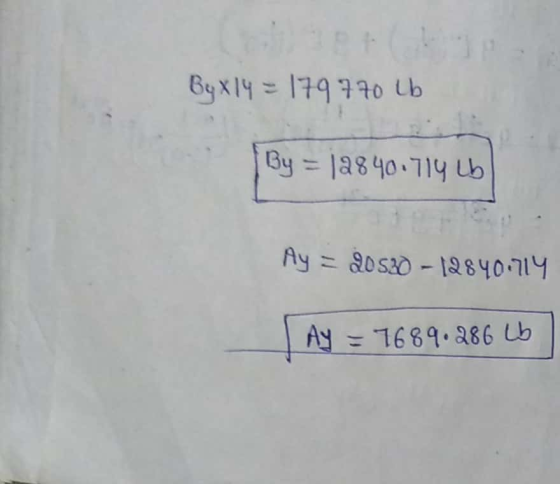

Problem 2. Compute the reactions at each support for the beam shown. The beam weight is...
Problem 3. Calculate the wall reactions for the cantilever truss shown. The upper support is pinned...
Problem 3. Calculate the wall reactions for the cantilever truss shown. The upper support is pinned and the lower support is a roller. Neglect the weight of the truss. A) Draw the free-body diagram (FBD) you used to calculate the reactions B) Write the equilibrium equations based on the FBD 500 lb 4'-0" 4'-0" 4'-0" 72° 8-0" 3200 lb 4200 lb
a. Draw a complete free-body diagram for the beam shown in Fig. 1. Must show and...
a. Draw a complete free-body diagram for the beam shown in Fig.
1. Must show and label x-y coordinate system, support reactions,
loads, and dimensions
b. Derive formulas for all support reactions using conditions of
equilibrium. Must show all work.
c. Using the student variables shown below, calculate beam
support reactions and draw shear and bending moment diagrams. To
receive full credit, support reactions and loads must be shown on a
free-body diagram. Each shear and bending moment diagram must...
For the continuous beam shown, compute the support reactions using the method of consistent defor...
draw the shear and bending moment diagrams also please
For the continuous beam shown, compute the support reactions using the method of consistent deformations by taking the reaction at support B as redundant. Also, draw the shear and bending moment diagrams. The beam is subjected to a 20 kips concentrated load at the middle of the left span plus a 1.5 inch settlement of support B. Use deflection formulas to determine deflections at B. Assume E-29000 ksi and I-750 in...
Problem 1 This L-beam is in Equilibrium. Determine the reactions at the fixed-end support a) FBD...
Problem 1 This L-beam is in Equilibrium. Determine the reactions at the fixed-end support a) FBD b) Solve for the reactions (YOU SHOULD HAVE 3 and only 3!) |2ft ----2ft - 200 lb 160580 300 Sin 30° 2 ft 150 165 150 lb 1 2 ft 300 lb 3097 2 ft 10 50'
a. Draw a free-body diagram for the beam shown above and derive expressions for the support...
a. Draw a free-body diagram for the beam shown above and derive
expressions for the support reactions at A and B
b. Draw internal force (shear and bending moment) diagrams.
c. If a = 10 ft and M0 = 200 ft-lb, use the dimensions of the
beam cross-section, provided on the previous page, to compute the
maximum flexural and shear stresses on the beam cross-section.
d. If the allowable bending stress is 925 psi and the allowable
shear stress is...
The weight of the beam shown is "W" and has a length "T". Assume that the...
The weight of the beam shown is "W" and has a length "T". Assume that the beam weight is concentrated at the midpoint of the beam. Point "A" is a pinned support. In the position shown, the angle is 15 degrees and the angle is 45 degrees. Draw a free body diagram for the beam (3 points Calculate the reaction forces (in terms of beam weight "W") at the pinned support "A" and the tension in the cord "BC" for...
The cantilever beam shown is subjected to a moment at A and a distributed load that...
The cantilever beam shown is subjected to a moment at A and a
distributed load that acts over segment BC, and is fixed at C.
Determine the reactions at the support located at C. Then write
expressions for shear and bending moment as a function of their
positions along the beam. Finally, use these expressions to
construct shear and bending moment diagrams.
Part A - Reactions at support C
Draw a free-body diagram of the beam on paper. Use your...
2. (25 pts.) For the beam shown: a. Calculate the reactions loads at: i. Pin support...
2. (25 pts.) For the beam shown: a. Calculate the reactions loads at: i. Pin support A ii. Roler B b. Find the Equations of Shear and Bending Moments for the intervals A-B & B-C c. Find the Shear values (V) and Bendinf moments (M) at: 50 lb/ft i. Points A ii. Point B iii. Point C iv. Also the location and Magnitud of the Maximum Bending Momentin d. Draw the Shear and Bending -20 ft — Moments Diagrams and...
For the two frames given below Compute the Support Reactions Draw the Free Body Diagrams for...
For the two frames given below Compute the Support Reactions Draw the Free Body Diagrams for all members, and joints with concentrated load or moment Draw the Bending Moment Diagram, Shear Force Diagram, and Axial Force Diagram using the sign conventions and labeling scheme taught in the class Draw the Qualitative Deflected Shape, clearly showing the Inflection Points, if any. 1. (50 points) 45 k Need FBD 3 k/ft 15 ft 2. (50 points) 15 kN/m F G 65 kN...
Determine the reactions at A and B of the simple bracket shown. Neglect the self-weight of the members. For stability, there are pin supports at A and B. Indicate the magnitude and direction of...
Determine the reactions at A and B of the simple bracket shown. Neglect the self-weight of the members. For stability, there are pin supports at A and B. Indicate the magnitude and direction of the reaction forces. Show all free body diagrams and the equations associated with each free body diagram. 1500 lb ANSWER HERE Reactions at A 10" Reactions at B 4500 lb 7850 # 10 3.5' 10"
Determine the reactions at A and B of the simple bracket...
Problem 3. Calculate the wall reactions for the cantilever truss shown. The upper support is pinned and the lower support is a roller. Neglect the weight of the truss. A) Draw the free-body diagram (FBD) you used to calculate the reactions B) Write the equilibrium equations based on the FBD 500 lb 4'-0" 4'-0" 4'-0" 72° 8-0" 3200 lb 4200 lb
a. Draw a complete free-body diagram for the beam shown in Fig.
1. Must show and label x-y coordinate system, support reactions,
loads, and dimensions
b. Derive formulas for all support reactions using conditions of
equilibrium. Must show all work.
c. Using the student variables shown below, calculate beam
support reactions and draw shear and bending moment diagrams. To
receive full credit, support reactions and loads must be shown on a
free-body diagram. Each shear and bending moment diagram must...
draw the shear and bending moment diagrams also please
For the continuous beam shown, compute the support reactions using the method of consistent deformations by taking the reaction at support B as redundant. Also, draw the shear and bending moment diagrams. The beam is subjected to a 20 kips concentrated load at the middle of the left span plus a 1.5 inch settlement of support B. Use deflection formulas to determine deflections at B. Assume E-29000 ksi and I-750 in...
Problem 1 This L-beam is in Equilibrium. Determine the reactions at the fixed-end support a) FBD b) Solve for the reactions (YOU SHOULD HAVE 3 and only 3!) |2ft ----2ft - 200 lb 160580 300 Sin 30° 2 ft 150 165 150 lb 1 2 ft 300 lb 3097 2 ft 10 50'
a. Draw a free-body diagram for the beam shown above and derive
expressions for the support reactions at A and B
b. Draw internal force (shear and bending moment) diagrams.
c. If a = 10 ft and M0 = 200 ft-lb, use the dimensions of the
beam cross-section, provided on the previous page, to compute the
maximum flexural and shear stresses on the beam cross-section.
d. If the allowable bending stress is 925 psi and the allowable
shear stress is...
The weight of the beam shown is "W" and has a length "T". Assume that the beam weight is concentrated at the midpoint of the beam. Point "A" is a pinned support. In the position shown, the angle is 15 degrees and the angle is 45 degrees. Draw a free body diagram for the beam (3 points Calculate the reaction forces (in terms of beam weight "W") at the pinned support "A" and the tension in the cord "BC" for...
The cantilever beam shown is subjected to a moment at A and a
distributed load that acts over segment BC, and is fixed at C.
Determine the reactions at the support located at C. Then write
expressions for shear and bending moment as a function of their
positions along the beam. Finally, use these expressions to
construct shear and bending moment diagrams.
Part A - Reactions at support C
Draw a free-body diagram of the beam on paper. Use your...
2. (25 pts.) For the beam shown: a. Calculate the reactions loads at: i. Pin support A ii. Roler B b. Find the Equations of Shear and Bending Moments for the intervals A-B & B-C c. Find the Shear values (V) and Bendinf moments (M) at: 50 lb/ft i. Points A ii. Point B iii. Point C iv. Also the location and Magnitud of the Maximum Bending Momentin d. Draw the Shear and Bending -20 ft — Moments Diagrams and...
For the two frames given below Compute the Support Reactions Draw the Free Body Diagrams for all members, and joints with concentrated load or moment Draw the Bending Moment Diagram, Shear Force Diagram, and Axial Force Diagram using the sign conventions and labeling scheme taught in the class Draw the Qualitative Deflected Shape, clearly showing the Inflection Points, if any. 1. (50 points) 45 k Need FBD 3 k/ft 15 ft 2. (50 points) 15 kN/m F G 65 kN...
Determine the reactions at A and B of the simple bracket shown. Neglect the self-weight of the members. For stability, there are pin supports at A and B. Indicate the magnitude and direction of the reaction forces. Show all free body diagrams and the equations associated with each free body diagram. 1500 lb ANSWER HERE Reactions at A 10" Reactions at B 4500 lb 7850 # 10 3.5' 10"
Determine the reactions at A and B of the simple bracket...
