A charged sphere in static equilibrium is resting on a horizontal surface. Directly above it is...
A charged sphere in static equilibrium is resting on a
horizontal surface. Directly above it is another charged sphere
(also in static equilibrium) that is hanging from a 9,000 N/m
spring. The 36 kg red sphere has more charge than the 49 kg green
sphere. The total charge magnitude on the spheres is 248 µC &
they have the same polarity. As a result the spring is stretched
0.02 m& the centers of the spheres are 0.66 m
apart. Determine the charge magnitude on each
sphere.
|
Qred (bigger charge) = Qgreen (smaller charge) = |

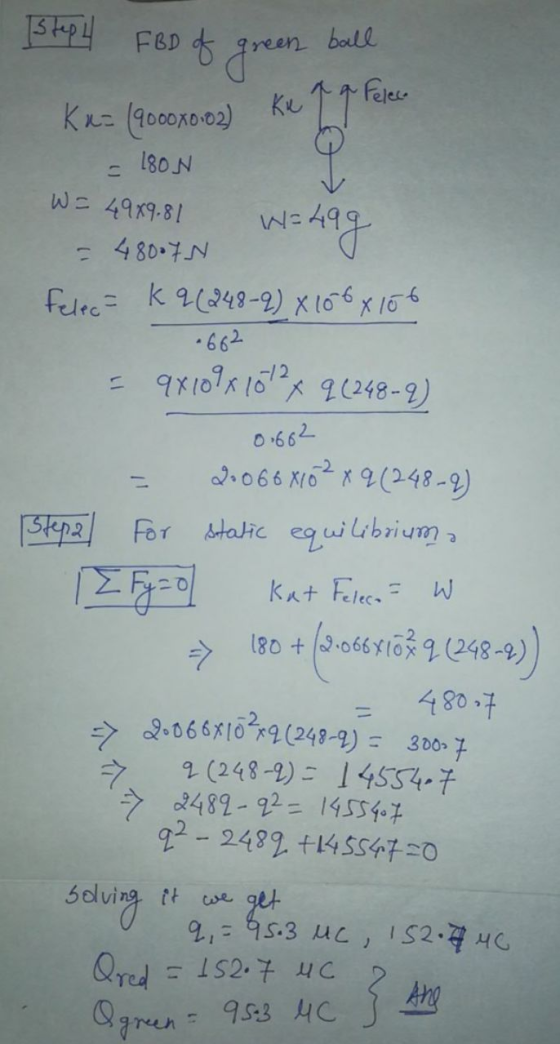

Homework Answers
Please let me know if it was helpful. Thank you!
Add Answer to:
A charged sphere in static equilibrium is resting on a
horizontal surface. Directly above it is...
A charged sphere in static equilibrium is resting on a horizontal surface. Directly above it is...
A
charged sphere in static equilibrium is resting on a horizontal
surface. Directly above it is another charged sphere (also in
static equilibrium) that is hanging from a 12 N/m spring. The 34 kg
red sphere has more charge than the 1 kg green sphere. The total
charge magnitude on the spheres is 26 µC & they have the same
polarity. As a result the spring is stretched 0.25 m & the
centers of the spheres are 0.32 m apart....
A charged sphere in static equilibrium is resting on a horizontal surface. Directly above it is...
A charged sphere in static
equilibrium is resting on a horizontal surface. Directly above it
is another charged sphere (also in static equilibrium) that is
hanging from a 2,250 N/m spring. The 2 kg red sphere has more
charge than the 3 kg green sphere. The total charge magnitude on
the spheres is 81 µC & they have opposite polarity. As a result
the normal force on the red sphere is 4 N & the centers of the
spheres are...
A charged sphere in static equilibrium is resting on a horizontal surface. Directly above it is...
A charged sphere in static equilibrium is resting on a horizontal surface. Directly above it is another charged sphere (also in static equilibrium) that is hanging from a string. The 34 kg red sphere has more charge than the 31 kg green sphere. The total charge magnitude on the spheres is 65 µC & they have opposite polarity. As a result, the tension is 322 N & the centers of the spheres are 0.69 m apart. Determine the charge magnitude...
Two charged spheres on a frictionless horizontal surface are attached to opposite ends of a 750...
Two charged spheres on a frictionless horizontal surface are attached to opposite ends of a 750 N/m spring & are in static equilibrium. The 24 kg red sphere has more charge than the 9 kg green sphere. The total charge magnitude on the spheres is 59 μC & they have opposite polarity. As a result the spring is compressed 0.03 m & the centers of the spheres are 0.57 m apart. Determine the charge magnitude on each sphere.
Two charged spheres (A & B) are 6.1 m apart. The magnitude of charge on sphere...
Two charged spheres (A & B) are 6.1 m apart. The magnitude of charge on sphere A is 17 times smaller than the magnitude of charge on sphere B. If sphere A is exerting a 668 N electrostatic force on sphere B, how much electrostatic force is B exerting on A ?
T wo identical small charged spheres, each having equilibrium. The length L of each string is...
T wo identical small charged spheres, each having equilibrium. The length L of each string is 0.150 m, and the angle is 5.000. Find the magnitude of the charge on each sphere. a mass of 3.00×1022 kg, hang in
1. Rocket observations show that dust particles in Earth's upper atmosphere are often electrically charged. a)...
1. Rocket observations show that dust particles in Earth's upper atmosphere are often electrically charged. a) Find the distance separating two dust particles (in m) if each has a charge of +e and the Coulomb force between them has magnitude 1.30 ✕ 10−14 N. b)Calculate the mass (in kg) of one of the dust particles if this Coulomb force would accelerate it at 2.60 ✕ 108 m/s2. (In the upper atmosphere, effects from other nearby charges typically result in a...
Two identical small charged spheres hang in equilibrium with equal masses as shown in the figure....
Two identical small charged spheres hang in equilibrium with
equal masses as shown in the figure. The length of the strings are
equal and the angle (shown in the figure) with the vertical is
identical. Find the magnitude of the charge on each sphere. The
acceleration of gravity is 9.8 m/s 2 and the value of Coulomb’s
constant is 8.98755 × 109 N · m2 /C 2 . Answer in units of C.
0.03 kg 0.03 kg
A molecule of DNA (deoxyribonucleic acid) is 2.18 μm long. The ends of the molecule become...
A molecule of DNA (deoxyribonucleic acid) is 2.18 μm long. The ends of the molecule become singly ionized: negative on one end, positive on the other. The helical molecule acts like a spring and compresses 1.06% upon becoming charged. Determine the effective spring constant of the molecule. ______N/m Two small identical conducting spheres are placed with their centers 0.59 m apart. One is given a charge of 12 ✕ 10−9 C, the other a charge of −17 ✕ 10−9 C....
plzz help A moleale of DNA (deoxyrit nudeic acid) is 2.14 μm long. The ends of...
plzz help
A moleale of DNA (deoxyrit nudeic acid) is 2.14 μm long. The ends of the molecule spring and compresses 1.05% upon becoming charged. Determine the effective spring constant of the molecule. singly ionized: negative on one end, positive on the other. The helical N/m Need Help? My ng spheres are placed with their centers 0.53 m apart. One is given a charge of 12 x 10C, the other a charge of -17 x 10 c. (a) Find the...
A
charged sphere in static equilibrium is resting on a horizontal
surface. Directly above it is another charged sphere (also in
static equilibrium) that is hanging from a 12 N/m spring. The 34 kg
red sphere has more charge than the 1 kg green sphere. The total
charge magnitude on the spheres is 26 µC & they have the same
polarity. As a result the spring is stretched 0.25 m & the
centers of the spheres are 0.32 m apart....
A charged sphere in static
equilibrium is resting on a horizontal surface. Directly above it
is another charged sphere (also in static equilibrium) that is
hanging from a 2,250 N/m spring. The 2 kg red sphere has more
charge than the 3 kg green sphere. The total charge magnitude on
the spheres is 81 µC & they have opposite polarity. As a result
the normal force on the red sphere is 4 N & the centers of the
spheres are...
T wo identical small charged spheres, each having equilibrium. The length L of each string is 0.150 m, and the angle is 5.000. Find the magnitude of the charge on each sphere. a mass of 3.00×1022 kg, hang in
Two identical small charged spheres hang in equilibrium with
equal masses as shown in the figure. The length of the strings are
equal and the angle (shown in the figure) with the vertical is
identical. Find the magnitude of the charge on each sphere. The
acceleration of gravity is 9.8 m/s 2 and the value of Coulomb’s
constant is 8.98755 × 109 N · m2 /C 2 . Answer in units of C.
0.03 kg 0.03 kg
plzz help
A moleale of DNA (deoxyrit nudeic acid) is 2.14 μm long. The ends of the molecule spring and compresses 1.05% upon becoming charged. Determine the effective spring constant of the molecule. singly ionized: negative on one end, positive on the other. The helical N/m Need Help? My ng spheres are placed with their centers 0.53 m apart. One is given a charge of 12 x 10C, the other a charge of -17 x 10 c. (a) Find the...
