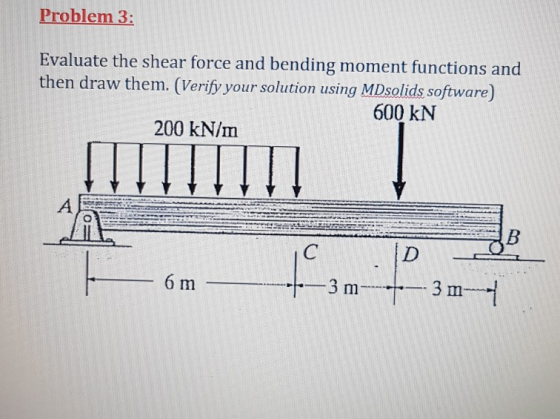

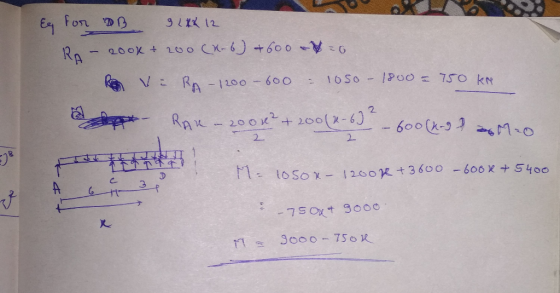

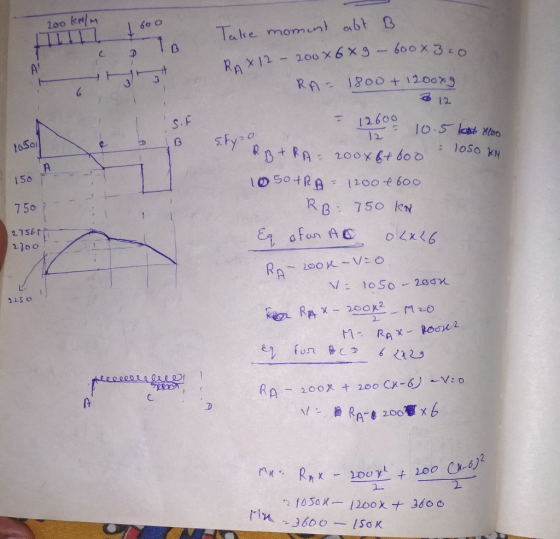

Problem 3: Evaluate the shear force and bending moment functions and then draw them. (Verify your...
Question 3 For the following beam structure, draw the bending moment and shear force diagrams. Also, identify the magnitude of maximum bending moment and shear force experienced by the beam. GS 1.8 kN 7 kN 1.8 KN 200 mm BE 200 mm 300 300
4. For the beam and loading shown, draw the shear force and bending moment diagrams and determine the maximum bending and shear force and their locations. 20 KN 40 KN B D 250 mm |--2.5 m- 3m-4-2 m 80 mm 5. For the beam and loading shown, draw the shear force and bending moment diagrams and determine the maximum bending and shear force and their locations. 50 KN
Problem Determine the reactions and draw the shear and bending moment diagrams for the beams shown in Figs. P16.8-P16.14 by using the moment-distribution method 120 kN 120 kN 150 kN m--4 21 E 200 GPa 1- 500 (106 mm
Draw the shear and bending moment diagrams for the beams
shown
3 KN 3 KN 450 N.m D 300 300 200 200 Dimensions in mm
For the beam shown in Fig. 9.3, draw the shear force and bending moment diagrams. Use the area method that relies on the relationships between loading and shear force and between shear force and bending moment. Indicate the slope of the shear force diagram at locations A, B, C, and D using the load information in Fig. 9.3. Indicate the slope of the bending moment diagram at the same four locations using information from the shear force diagram. | 6...
1. Draw the shear force and bending moment diagrams for the
following three beams using the graphical method 2. For beams (a) and (b) in problem 1, find the shear and moment functions using the method of sections.
Draw the shear force and bending moment diagrams for the beams
shown
5 kN 3 kN/m 3 m 1.5 m1.5mFig. 4 3 m
For the beams of problems 6.2-6.16, draw the shear force and
bending moment
diagrams and find the maximum shear force, maximum bending moment
and
point(s) of contraflexure (PCF).
7 kN 6 kN/m 4 kN/m B 2 m e C D E 24 kN 1,5m 7590.0.751 Figure 6.41
Draw the shear force and bending-moment diagrams for the simply
supported beam shown. Label each diagram with the corresponding
values
1. Draw the shear force and bending-moment diagrams for the simply supported beam shown. Label each diagram with the corresponding values. 3 Pe= 30 KN 4 m - m 3 m - C -40 kN - m
2 kN Draw the shear-force and bending-moment diagrams for the beam loaded by the 2-kN force and the 1.6 kN-m couple. State the value of the bending moment at point B. HW22-2 1.6 kN.m 0.5m 0.5 m 0.5 m
