Question

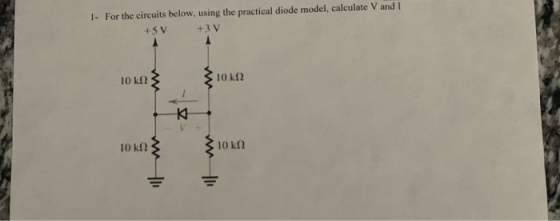

1. For the circuits below, using the practical diode model, calculate V and I +58 +3 v 1020 10 10 kn 10k
0 0
Add a comment Improve this question Transcribed image text
Request Professional Answer

Request Answer!

We need at least 10 more requests to produce the answer.

0 / 10 have requested this problem solution

The more requests, the faster the answer.

Request! (Login Required)


All students who have requested the answer will be notified once they are available.
Know the answer?
Add Answer to:
1. For the circuits below, using the practical diode model, calculate V and I +58 +3...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Similar Homework Help Questions
  • Please help 1 ks2 Vinawa - To Vout * D2 S1k2 (i) Using Diode Model C...

    Please help 1 ks2 Vinawa - To Vout * D2 S1k2 (i) Using Diode Model C shown below, find the range of input voltage so that D1 is off and D2 is on. (i) Using Diode Model C shown below, find the range of input voltage so that D1 is off and D2 is off. (k) Using Diode Model C shown below, find the range of input voltage so that D1 is on and D2 is off. (1) Sketch Vout...

  • Ctri Question 3 (20 Marks) Lab 1-Zener Circuits and Applications Theory: Zener diode is designed ...

    Ctri Question 3 (20 Marks) Lab 1-Zener Circuits and Applications Theory: Zener diode is designed to operate in reverse conduction. Zener breakdown occurs at a precisely defined voltage, allowing the diode to be used as a voltage reference or clipper. While Zener diodes are usually operated in reverse conduction, they may also be operated in cutoff and forward conduction. There are two different effects that are used in "Zener diodes". The only practical difference is that the two types have...

  • This is a Diode constant voltage model - clipping circuits Please explain steps as you solve....

    This is a Diode constant voltage model - clipping circuits Please explain steps as you solve. Thank you very much for your help. please ask if there is anything not clear about the problem W (a) For the circuit shown below use the constant voltage diode model (Vp=0.7 V), and find the state of diodes D, and D2 (ie. ON or OFF) and determine the voltage and the current for each. 32k2 OV 5 mA 103=_ ; VD3= 104= ;...

  • In Figure 9, the transformer primary voltage is 120V and step-downratiois 10:1 Assume the practical diode...

    In Figure 9, the transformer primary voltage is 120V and step-downratiois 10:1 Assume the practical diode model. 9. a) i) Name the type of circuit (1 mark) Determine the peak output voltage, Volout) (4 marks) iiI What is the PIV rating required for the diodes (2 marks) D, D3 120 V psecy R Plout) 10 k2 DA Figure 9 b) A certain power supply filter produces an output with a ripple of 100mV peak-to- peak and a dc value of...

  • For the 4 circuits below, plot the V vs V, relationships (as demonstrated in Chapter 3) first wit...

    For the 4 circuits below, plot the V vs V, relationships (as demonstrated in Chapter 3) first without using EveryCircuit (EC) app Then build the circuits in EC, vary V, measure V, and plot V vs V. again based on the results obtained from EC app Assume V.-IV, R.-R. = 1kw and the diodes are ideal with Turn ON voltage of 0.7V (or OV meaning the diode is forward-biased and Di R and cathode terminal Circuit (a) ircuit (b) ircuit...

  • Question 3: For the circuit given below, V, 10V, Ri 4k0, Re2Q, R3=1 k? and Diode...

    Question 3: For the circuit given below, V, 10V, Ri 4k0, Re2Q, R3=1 k? and Diode D has a forward voltage drop OTV i. (2pts) Write node equation for Node A using KCL and -w- R1 R2 R3 calculate V 10 VA VA VA . 1K i. (1pts) Calculate current through resistor R

  • Part IIl: Diodes The Ideal-Diode Model a) For the circuit below, find ID and VD for the case VDD 5 V and R 10 k2. Assum...

    Part IIl: Diodes The Ideal-Diode Model a) For the circuit below, find ID and VD for the case VDD 5 V and R 10 k2. Assume that the diode has a voltage of 0.7 V at 1-mA current. Use (a) iteration and (b) the constant-voltage-drop model with VD 0.7 V 홍Yo b) Design the circuit below to provide an output voltage of 2.4 V. Assume that the diodes available have 0.7-V drop at 1 mA. +10 V Vo Part IIl:...

  • 4.23 (a) Oualitatively hand-sketch log(I) vs. V for a Schottky diode and a PN diode in the same f...

    4.23 (a) Oualitatively hand-sketch log(I) vs. V for a Schottky diode and a PN diode in the same figure. Comment on the similarity and difference. (b) Calculate the lo of a 1 mm2 MoSi2 on N-type Si Schottky diode. Compare it with the 10 of a 1 m m-p"N diode with Nd = 1018 cm-3 andゲ1 μα Compare the forward voltage of the two diodes in (b) at a forward current of 50 A. Besides increasing the diode area (cost),...

  • Draw an I-V curve for the PN junction diode using a Shockley diode equation, and explain...

    Draw an I-V curve for the PN junction diode using a Shockley diode equation, and explain the cause of the shape of the I-V curve with the operation principle of diodes. (Assume the temperature as 10+(10a+b) ?, the saturation current as (c+0.1d+0.01e)x10-8 A, and the ideality factor as 1+0.1f when your student ID number is “20abcdef”. For example, if your student ID number is 20121234, the temperature, saturation current, and the ideality factor becomes 10+(10*1+2) ?, 1.23x10-8 A, and 1.4...

  • 1 Include (circuits) diagrams below assume ideal op amps. voltage supplies are (a) ) Find v,...

    1 Include (circuits) diagrams below assume ideal op amps. voltage supplies are (a) ) Find v, as a function of vs t volts in both parts (a) and (b). (i) Plot v, vS. v (iii) From (ii) or otherwise determine range of vg such that v, does not saturate. 96 kn 24 kΩ 10 V -10 V
