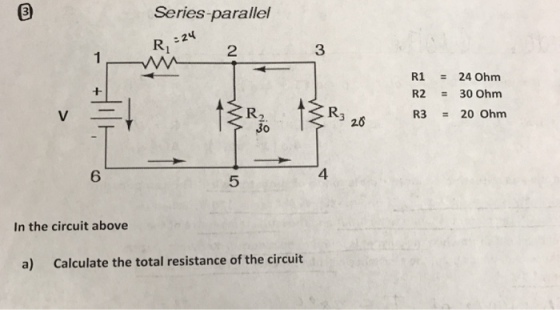

Series-parallel R,?24 3 2 R124 Ohm R2 = 30 Ohm R3 20 Ohm 3 2.6 6...

Question

Question

science physics

Answer 1

Answer #1

R₂ and R₃ are in parallel

R_p = [1/30 + 1/20]^-1 = 12 ohms

R_p and R₁ are in series

R_equ = R₁ + R_p

= 24 + 12

total resistance = 36 ohms

Add a comment
