Add Answer to:

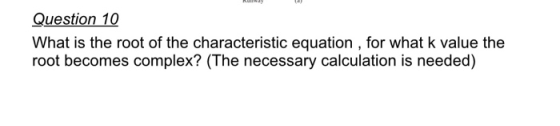

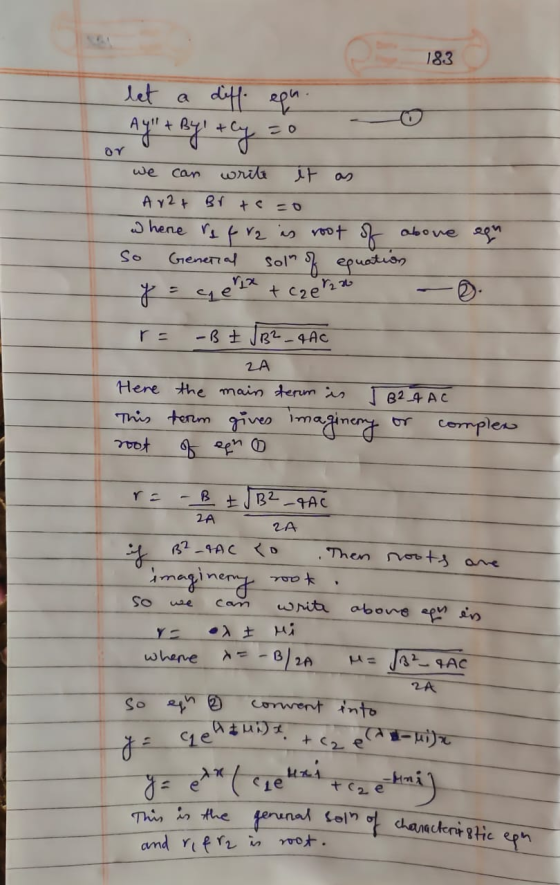

Question 10 What is the root of the characteristic equation , for what k value the...
Obtain the characteristic equation of the below control system so that root locus can be drawn...
Obtain the characteristic equation of the below control system so that root locus can be drawn with respect to K. R(s) C(s) s+1
The characteristic equation (denominator of the closed-loop transfer function set equal to zero) is given s3 + 2s2 + (20K +7)s+ 100K Sketch the root locus of the given system above with respect to...
The characteristic equation (denominator of the closed-loop transfer function set equal to zero) is given s3 + 2s2 + (20K +7)s+ 100K Sketch the root locus of the given system above with respect to K. [ Find the asymptotes and their angles, the break-away or break-in points, the angle of arrival or departure for the complex poles and zeros, imaginary axis crossing points, respectively (if any).
The characteristic equation (denominator of the closed-loop transfer function set equal to zero) is...
A system has the characteristic equation: q(s) = s3 + 10s2 + 29s + K =...
A system has the characteristic equation: q(s) = s3 + 10s2 + 29s + K = 0 i. Shift the vertical axis to the right by 2 by using s = sn – 2, and determine the value of gain K so that the complex roots are s = -2 ± j.
For the system shown below, find the followings; (a) Make an accurate plot of the root locus (b) The value of K that gives a stable system with critically damped second-order poles (c ) The value...
For the system shown below, find the followings; (a) Make an accurate plot of the root locus (b) The value of K that gives a stable system with critically damped second-order poles (c ) The value of K that gives a marginally stable sytems Cs) (s-20s- I) 0.5 The characteristic equation (denominator of the closed-loop trans fer function set equal to zero) is given by
For the system shown below, find the followings; (a) Make an accurate plot of the...
Plot the root locus for a system with the following characteristic equation: s2 +8s 25 s2(s...
Plot the root locus for a system with the following characteristic equation: s2 +8s 25 s2(s 4) Be sure to calculate (and clearly label) any asymptotes, break-in/break-away points, and arrival/departure angles. If there are any imaginary axis crossings, clearly identify the frequency () and gain (K) associated with such crossings.
Use rlocus in MATLAB to plot the root locus for a closed loop control system with the plant trans...
Use rlocus in MATLAB to plot the root locus for a closed loop control system with the plant transfer function 8. z 2 2)2-0.1z +0.06 For what value of k is the closed loop system stable? 9. The characteristic equation for a control system is given as z2(0.2 +k)z 6k +2-0 Use Routh-Hurwitz criterion to find when the system is stable. 10. Use MATLAB to plot the root locus for the system given in Problem 9. Compare your conclusion in...
6) (15 total points) For the root locus plot shown below: a) b) c) Find the...
6) (15 total points) For the root locus plot shown below: a) b) c) Find the open-loop transfer function G(s) (show as factors) (3 points) Assuming unity feedback H-1, find the characteristic equation of the closed loop transfer function (3 points). Find the gain K that the system goes unstable. Hint: express the characteristic equation in (a) as s2 + 2ơs + -0, and determine the point ơ becomes negative (6 points). Find the natural frequency of the closed loop...

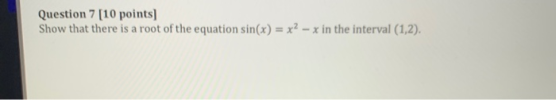

Question 7 [10 points) Show that there is a root of the equation sin(x) = x?...
Question 7 [10 points) Show that there is a root of the equation sin(x) = x? – x in the interval (1,2).

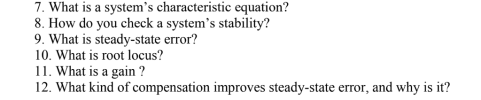

7. What is a system's characteristic equation? 8. How do you check a system's stability? 9....
7. What is a system's characteristic equation? 8. How do you check a system's stability? 9. What is steady-state error? 10. What is root locus? 11. What is a gain? 12. What kind of compensation improves steady-state error, and why is it?
3. Consider the system shown below. For this system. G(s) s(s+1)(s 2) H(s)1 We assume that the value of the gain K is nonnegative. Sketch the root locus plot and determine the K value such that the d...
3. Consider the system shown below. For this system. G(s) s(s+1)(s 2) H(s)1 We assume that the value of the gain K is nonnegative. Sketch the root locus plot and determine the K value such that the damping ratio of a pair of dominant complex-conjugate closed-loop poles is 0.5. Ri)1 C(s)
3. Consider the system shown below. For this system. G(s) s(s+1)(s 2) H(s)1 We assume that the value of the gain K is nonnegative. Sketch the root locus plot...
Obtain the characteristic equation of the below control system so that root locus can be drawn with respect to K. R(s) C(s) s+1
The characteristic equation (denominator of the closed-loop transfer function set equal to zero) is given s3 + 2s2 + (20K +7)s+ 100K Sketch the root locus of the given system above with respect to K. [ Find the asymptotes and their angles, the break-away or break-in points, the angle of arrival or departure for the complex poles and zeros, imaginary axis crossing points, respectively (if any).
The characteristic equation (denominator of the closed-loop transfer function set equal to zero) is...
For the system shown below, find the followings; (a) Make an accurate plot of the root locus (b) The value of K that gives a stable system with critically damped second-order poles (c ) The value of K that gives a marginally stable sytems Cs) (s-20s- I) 0.5 The characteristic equation (denominator of the closed-loop trans fer function set equal to zero) is given by
For the system shown below, find the followings; (a) Make an accurate plot of the...
Plot the root locus for a system with the following characteristic equation: s2 +8s 25 s2(s 4) Be sure to calculate (and clearly label) any asymptotes, break-in/break-away points, and arrival/departure angles. If there are any imaginary axis crossings, clearly identify the frequency () and gain (K) associated with such crossings.
Use rlocus in MATLAB to plot the root locus for a closed loop control system with the plant transfer function 8. z 2 2)2-0.1z +0.06 For what value of k is the closed loop system stable? 9. The characteristic equation for a control system is given as z2(0.2 +k)z 6k +2-0 Use Routh-Hurwitz criterion to find when the system is stable. 10. Use MATLAB to plot the root locus for the system given in Problem 9. Compare your conclusion in...
6) (15 total points) For the root locus plot shown below: a) b) c) Find the open-loop transfer function G(s) (show as factors) (3 points) Assuming unity feedback H-1, find the characteristic equation of the closed loop transfer function (3 points). Find the gain K that the system goes unstable. Hint: express the characteristic equation in (a) as s2 + 2ơs + -0, and determine the point ơ becomes negative (6 points). Find the natural frequency of the closed loop...
Question 7 [10 points) Show that there is a root of the equation sin(x) = x? – x in the interval (1,2).
7. What is a system's characteristic equation? 8. How do you check a system's stability? 9. What is steady-state error? 10. What is root locus? 11. What is a gain? 12. What kind of compensation improves steady-state error, and why is it?
3. Consider the system shown below. For this system. G(s) s(s+1)(s 2) H(s)1 We assume that the value of the gain K is nonnegative. Sketch the root locus plot and determine the K value such that the damping ratio of a pair of dominant complex-conjugate closed-loop poles is 0.5. Ri)1 C(s)
3. Consider the system shown below. For this system. G(s) s(s+1)(s 2) H(s)1 We assume that the value of the gain K is nonnegative. Sketch the root locus plot...
