A small charged particle with q = 15.0 μC is placed at each of the eight...

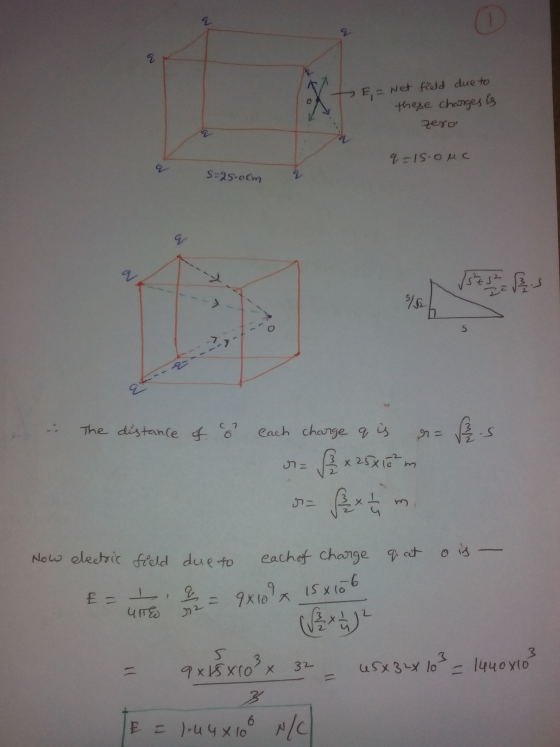

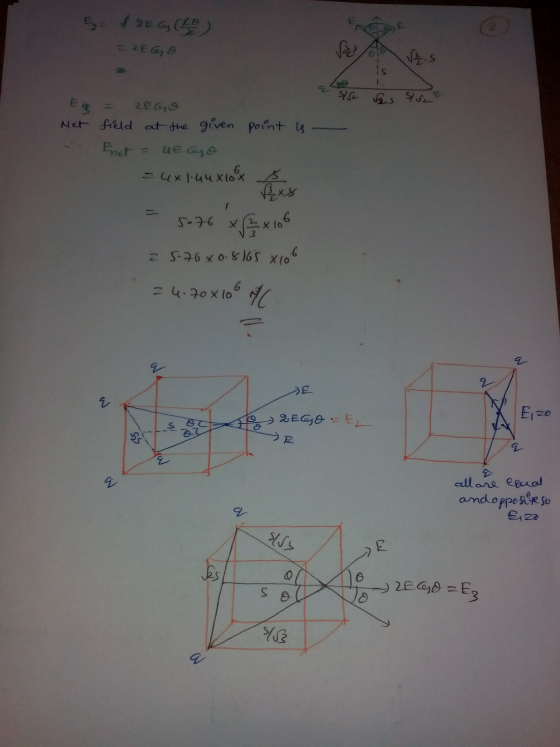

A small charged particle with q = 15.0 μC is placed at each of the eight corners of a cube with side length s = 25.0 cm. Find the magnitude of the electric field at the center of one of the faces of the cube. NOTE: ANSWER IS: 4.70 x 10^6 N/C NEED HELP FINDING THIS ANSWER
Homework Answers
Add Answer to:
A small charged particle with q = 15.0 μC is
placed at each of the eight...
A charged particle of magnitude q is at the center of a cube with sides of...
A charged particle of magnitude q is at the center of a cube with sides of length L. A) What is the electric flux Φ through each of the six faces of the cube? B) What would be the flux Φ1 through a face of the cube if its sides were of length L1?
A particle of charge 2 μC is located at the origin. A second particle of charge...
A particle of charge 2 μC is located at the origin. A second particle of charge 5 μC is located at the coordinates (2.35,3.24)(2.35,3.24) in cm. What is the magnitude of the electric force between the particles? What are the x and y components of the electric force acting on the particle at the point (2.35,3.24)(2.35,3.24)? Four identical particles with charge 3 μC are located at the corners of a square. The square's sides are 3 cm in length. A...
Q 18.38: A charge Q = a μC is placed on a conducting spherical shell with...
Q 18.38: A charge Q = a μC is placed on a conducting spherical shell with inner radius Ri 9. 0 cm and outer radius R2 10.0 cm. A point chargeq-b HC is placed at the center of the cavity. The magnitude of the electric field at a point cm f r = c from the center is
19. A particle with charge Q = 5.00 μC is located at the center ube of...
19. A particle with charge Q = 5.00 μC is located at the center ube of edge L 0.100 m. In addition, six other iden- tical charged particles having q -1.00 μC are positioned of a c symmetrically around Q as shown in Figure P23.19. Deter- mine the electric flux through one face of the cube. 4% Figure P23.19 Problems 19 and 20 19a) What is the net charge inside the cube?1 b) What is the flux through the whole...
Four identical charged particles (q = +19.0 μC) are located on the corners of a rectangle...
Four identical charged particles (q = +19.0 μC) are located on the corners of a rectangle as shown in the figure below. The dimensions of the rectangle are L = 61.0 cm and W = 12.0 cm. Calculate the change in electric potential energy of the system as the particle at the lower left corner in the figure is brought to this position from infinitely far away. Assume the other three particles in the figure below remain fixed in position...
Three positive particles of equal charge, Q = 7.3 μC , are located at the corners...
Three positive particles of equal charge, Q = 7.3 μC , are located at the corners of an equilateral triangle of side 15.0 cm. Calculate the magnitude of the net force on each particle due to the other two. Express your answer to two significant figures and include the appropriate units.
4. 15 points KatzPSEf1 23.P.051 My Notes Four equally charged particles with charge q are placed...
4. 15 points KatzPSEf1 23.P.051 My Notes Four equally charged particles with charge q are placed at the corners of a square with side length L, as shown in the figure below. A fifth charged particle with charge Q is placed at the center of the square so that the entire system of charges is in static equilibrium. What are the magnitude and sign of the charge Q? (Use any variable or symbol stated above as necessary.) magnitudeQ sign --Select...
1. Four identical particles with charge 3 μC are located at the corners of a square....
1. Four identical particles with charge 3 μC are located at the corners of a square. The square's sides are 3 cm in length. A fifth particle of charge 6 μC is placed directly at the center of the square. What is the magnitude of the total electric force on any one of the four particles at the corners? 2. If you could adjust the charge of the particle at the center, what should you choose so that the net...
Four point charges of magnitude 6.00 μC and of varying signs are placed at the corners of a square 2.00 m on each side, as shown in the figure.
Four point charges of magnitude 6.00 μC and of varying signs are placed at the corners of a square 2.00 m on each side, as shown in the figure. What is the electric potential (relative to infinity) at the center of this square due to these charges? What is the magnitude of the electric field due to these charges at the center of the square?
Q) Three charged particles are placed at the corners of an equilateral triangle of side 1.20...
Q) Three charged particles are placed at the corners of an
equilateral triangle of side 1.20 m (see (Figure 1)). The charges
are Q1 = 7.1 μC , Q2 = -8.2 μC , and Q3 = -5.1 μC .
a) Calculate the magnitude of the net force on particle 1 due to
the other two.
b) Calculate the direction of the net force on particle 1 due to
the other two.
c) Calculate the magnitude of the net force on...
Q 18.38: A charge Q = a μC is placed on a conducting spherical shell with inner radius Ri 9. 0 cm and outer radius R2 10.0 cm. A point chargeq-b HC is placed at the center of the cavity. The magnitude of the electric field at a point cm f r = c from the center is
19. A particle with charge Q = 5.00 μC is located at the center ube of edge L 0.100 m. In addition, six other iden- tical charged particles having q -1.00 μC are positioned of a c symmetrically around Q as shown in Figure P23.19. Deter- mine the electric flux through one face of the cube. 4% Figure P23.19 Problems 19 and 20 19a) What is the net charge inside the cube?1 b) What is the flux through the whole...
Four identical charged particles (q = +19.0 μC) are located on the corners of a rectangle as shown in the figure below. The dimensions of the rectangle are L = 61.0 cm and W = 12.0 cm. Calculate the change in electric potential energy of the system as the particle at the lower left corner in the figure is brought to this position from infinitely far away. Assume the other three particles in the figure below remain fixed in position...
4. 15 points KatzPSEf1 23.P.051 My Notes Four equally charged particles with charge q are placed at the corners of a square with side length L, as shown in the figure below. A fifth charged particle with charge Q is placed at the center of the square so that the entire system of charges is in static equilibrium. What are the magnitude and sign of the charge Q? (Use any variable or symbol stated above as necessary.) magnitudeQ sign --Select...
Q) Three charged particles are placed at the corners of an
equilateral triangle of side 1.20 m (see (Figure 1)). The charges
are Q1 = 7.1 μC , Q2 = -8.2 μC , and Q3 = -5.1 μC .
a) Calculate the magnitude of the net force on particle 1 due to
the other two.
b) Calculate the direction of the net force on particle 1 due to
the other two.
c) Calculate the magnitude of the net force on...
