* F, = 50N 6. Two cables AB & AC hold the shown pole in the...

Question

Question

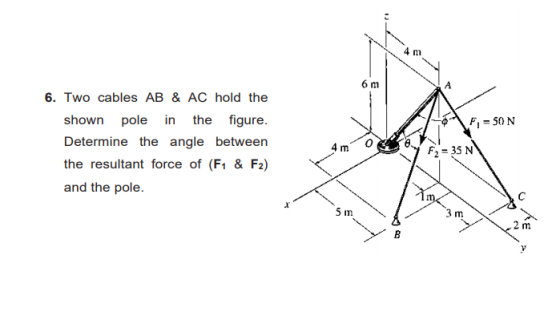

* F, = 50N 6. Two cables AB & AC hold the shown pole in the figure. Determine the angle between the resultant force of (F1 &

engineering Mechanical-Engineering

Answer 1

Answer #1

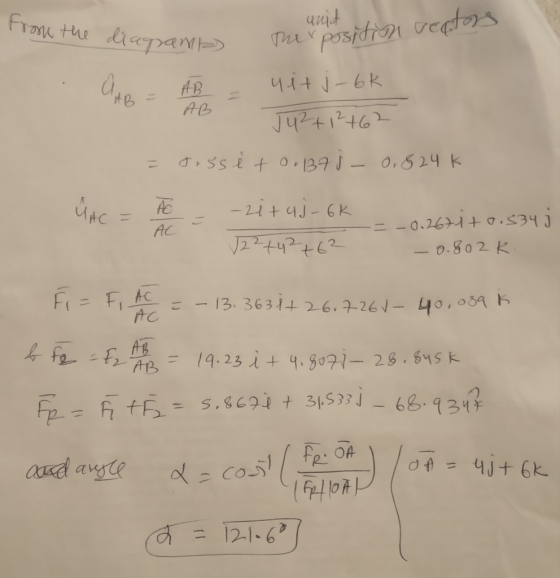

From the diagrama) unit Ther position vectors AB 17 uit j-6k Ju+12+62 = dussi to. 1371 - 0.824K ů AC = TE - Au - zituj-6k 122

Answer 2

Similar Homework Help Questions

4 m 8. Two cables AB &AC hold the 6 m shown pole in the figure...

4 m 8. Two cables AB &AC hold the 6 m shown pole in the figure Determine the resultant force & the angles and ф F2-35 N Im 3 m 2 m
4 m 6 m 8. Two cables AB & AC hold the shown pole in the...

4 m 6 m 8. Two cables AB & AC hold the shown pole in the figure. Determine the resultant force & the angles θ and φ T. ITm m2
please do step by step procedure, thank you Two cables AB and AC secure the post....

please do step by step procedure, thank you Two cables AB and AC secure the post. The cables are pre-stressed so that the forces exerted by the cables on the post are TAB = 1200 N and TAC 1800 N. Determine the magnitude and direction of the resultant force R TAB+Tac acting at point A AC 12 m AB 4 m 4 m m.

Q1) The roof shown in Fig 1 is hanged to the Wall at the angle at...

Q1) The roof shown in Fig 1 is hanged to the Wall at the angle at A by two cables AB and AC. If the value of F1= 150 N and F2 -200 N are the forces in cable AB and AC respectively, express F1 and F2 vectors in Cartesian form. Then compute the resultant of the two force vectors and express it in Cartesian form. Also calculate the directions angles of the resultant force. (40 points) 4m 2m 2m...
A force acting on the pole at point A. a.) Determine the magnitude of the projected...

A force acting on the pole at point A. a.) Determine the magnitude of the projected component of the force along the cable AB. b.) Determine the magnitude of the projected component of the force along the cable AC. c.) Determine the angle between cables AB and AC. 2 m 6 m 6 m 5 m 15° V F=1000 N
The inclined pole is subjected to a 5 kN magnitude force vector F acting from point...

The inclined pole is subjected to a 5 kN magnitude force vector F acting from point B towards point C. (a) Determine the angle that exists between B (1,5,6) m the force vector F and the pole AB (b) Determine the magnitude of the component of the force vector F that acts parallel to the pole AB (c) Determine the magnitude of the component of the force vector that acts perpendicular to the pole AbB C (4, 3, 0) m...

Problem#1 (7.5 points): Determine the force in the cables AD, AC and the elongation of the...

Problem#1 (7.5 points): Determine the force in the cables AD, AC and the elongation of the spring AB (k = 1.5 KN/m) necessary to support a mass of 40 kg as shown in the figure below. 60° 2 m 135 2 m 120 B k = 1.5 kN/my Problem#2 (7.5 points): Determine the force in the cables AD, AC, and AE necessary to support the structure shown in the figure below. FRE 9 m FAB = 3.5 kN 4.5 m...
Two cables with known tensions as shown are attached to a pole at point A. Determine...

Two cables with known tensions as shown are attached to a pole at point A. Determine the resultant force to which the pole is subjected. A TAC 800 N TAB= 600 N C/60° 40° B 1029 N 771N 1182 N 1080N
4. Find the Resultant Force and directional angle using the method of components F-750 N 45" F-850 N F5-625 N 5...

4. Find the Resultant Force and directional angle using the method of components F-750 N 45" F-850 N F5-625 N 5. Find the Resultant of F1 and the respective angles for same using the Cartesian Method? F-300N e0r 60 F2 = 50N 6. Find the Magnitude of the resultant force and its direction using the Method of Components Fi- 30 Ib 45° 15° F2 40 lb 15 F-25 lb 4. Find the Resultant Force and directional angle using the method...

1 [a] To stabilize a tree as in Figure 1[a], cables AB and AC are attached...

1 [a] To stabilize a tree as in Figure 1[a], cables AB and AC are attached to the upper trunk of the tree at the height of 5 m and then are fastened to steel rods anchored in the ground at B and C. If the tension in AB is 5 kN and that the resultant of the forces exerted at A by cables AB and AC lies in the yz plane, determine: Untuk menegakkan pokok seperti dalam Rajah 1a,...
