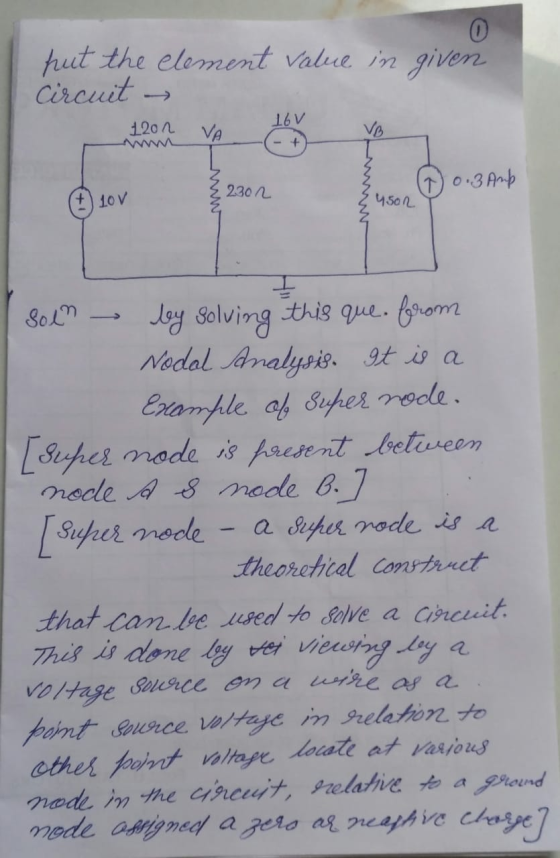

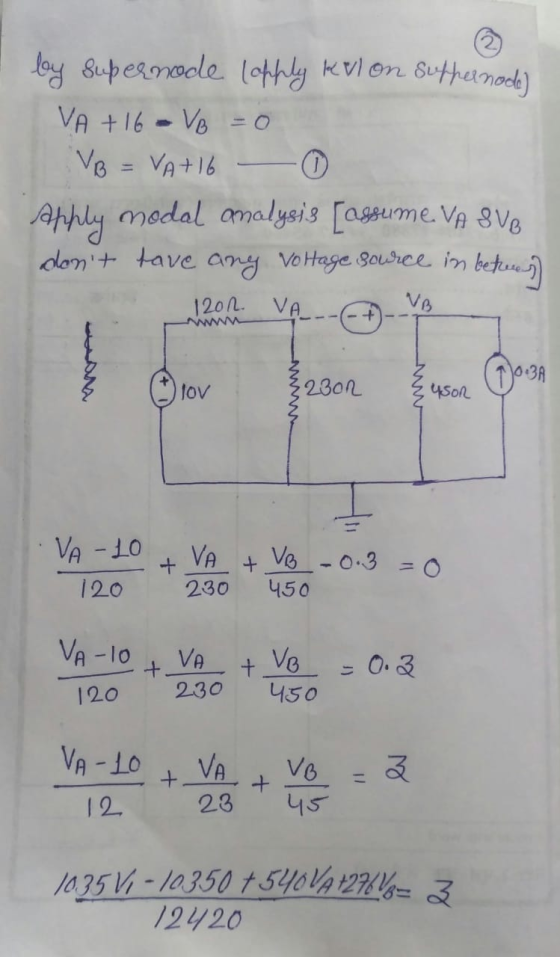

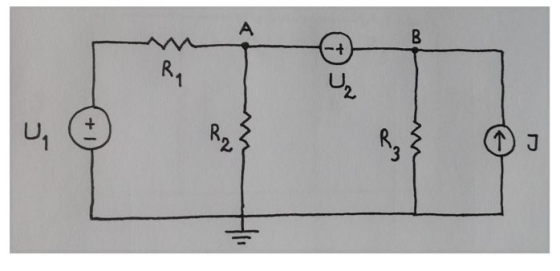

in the circuit below

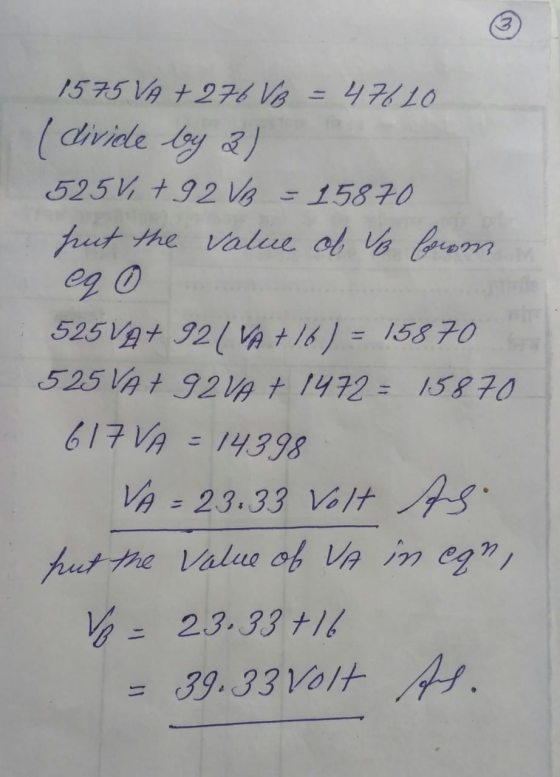

we have that U1 = 10 [V], R1 = 120 [Ω], R2 = 230 [Ω], U2 = 16 [V], R3 = 450 [Ω] och J = 0.3 [A]. calculate the electric potential (voltage) in A and B.
Homework Answers
