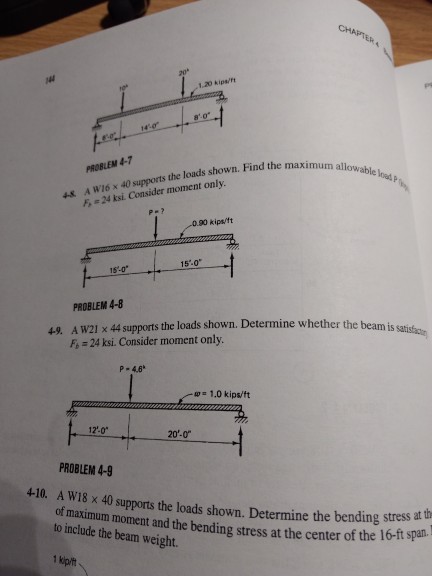

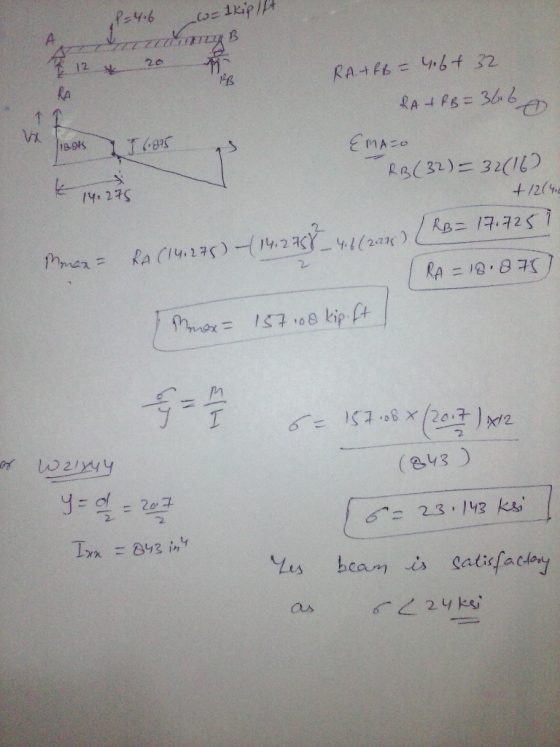

problem number 4-9 CHA 1.20 kipa/ 80 PROBLEM 4-7 the loads shown. Find the maximum allowab...
1. Calculate
Ay and Ey, the vertical
reaction forces at supports A and E,
respectively.
2. Determine the maximum bending moment magnitude for the beam. One
method to obtain this value is to construct shear-force and
bending-moment diagrams on a piece of paper. Determine the maximum
bending moment magnitude from your bending-moment diagram.
3. Calculate the minimum required section modulus if the
allowable bending stress is 24 ksi
4. Below, fill in the missing portions of the beam shape
designations...
1. (28 pts) A cantilever beam is subjected to the loads as shown in the figure. Va) Draw a free-body diagram and determine the supports at point 0. b) Draw shear and moment diagrams and find the values at key points (i.e. x = 0, 6 and 10 ft). If possible, please show your calculations. c) Find shear force V(x) and bending moment M(x) for () <x<6 ft. 12 10 kip 2 kip/ft skip سے 40 kip.lt 611 4 11...
Problem 05.154.b -
Determine the normal stress at C
Determine the
corresponding maximum normal stress due to bending. (Round the
final answer to two decimal places.)
The corresponding
maximum normal stress is _____ ksi.
Problem 05.154 - Determine the distance a that results in the smallest bending moment and the correcting normal stress Consider the given beam and loading, where P 21 kips. Take the section modulus as 1.67 in P kips o.S kips 1.2 kips C D S3 x...
Show all work please
If two loads are applied to a cantilever beam as shown in the accompanying drawing, the bending moment at 0 due to the loads is a1X1 + a2X2. X x2 a1 02 0 (a) Suppose that X1 and X2 are independent rv's with means 2 and 4 kips, respectively, and standard deviations 1.1 and 2.2 kip, respectively. If a1 = 7 ft and a2 = 14 ft, what is the expected bending moment? 70 What is...
STANDARD VIEW PRINTER VERSION BACK P8.037 GO Multipart The beam shown in Figure P8.37 will be constructed from a standard steel w shape using an allowable bending stress of 22 ksi. Assume Po=8.0 kips, Pc-13.5 kips, Po 4.0 kips and a-5 ft (a) Develop a list of five acceptable shapes that could be used for this beam. On this list, include the most economical W10, w12, w14, W16, and W18 shapes (b) Select the most economical W shape for this...
Problem 4: For the fixed-fixed beam shown below, a) Sketch the shear force and bending moment diagrams. Consider P1 = 10 kips, P2 = 15 kips, and w = 2 kips/ft. b) Indicate the values of maximum positive and negative bending moments and specify the location of these maximum values along the beam. (You are allowed to refer to the attached AISC Table for appropriate formulations or use any software) P2 TTTTTTTTTTTTTTT 6 ft. 1 0ft. t 4 ft.
2) The beam shown is supported by steel member BC as shown. Due to the forked ends on the member, consider the supports at B and C to act as pins for x-x axis buckling and as fixed supports for y-y axis buckling. Member BC is made of A992 steel with a modulus of elasticity of 29,000 ksi and a yield strength of 50 ksi. a) Calculate the maximum allowable load, P, on the system (in kips) considering buckling and...
4) A 100 foot long simply-supported bridge girder supports the unfactored loads shown in the figure. The uniformly distributed dead load, wD, includes the self weight of the girder, and is constant along the full beam length. Concentrated live loads, PL, are applied as shown in the figure. a) Draw factored shear force and factored bending moment diagrams in the spaces provided. Show magnitudes at locations A, B, C, D and E on each diagram.(8) PL = 50k PL-50k WD-2.5...
Problem 4. (20 pts) Concentrated loads of P-40 kips, Py-22 kips, and P. 16 kips are applied to the cantilever beam in the locations and directions shown in the figure. The beam cross section shown in the figure has dimensions of b-11 in. and h-3 in. Use a value of a-6.8 in a) Determine the first moment of area to be used about the x-axis. (Q) b) Determine the first moment of area to be used about the y-axis. (a)...
Problem 22. Two-story, one-bay unbraced frame shown below is subjected to gravitational dead and live loads and wind lateral load. The columns are made of W18x65 (I,-1070 in , Ag- 19.1 in2, r-7.49 in, ry-1.69 in) and beams are made of W18x71 (1, 1170 in). The table below shows the moments at the ends of column 4-5 due to three load cases. The frame is fully braced in lateral direction. Use Grade50 steel Bending is about strong axis. All gravity...
