Question

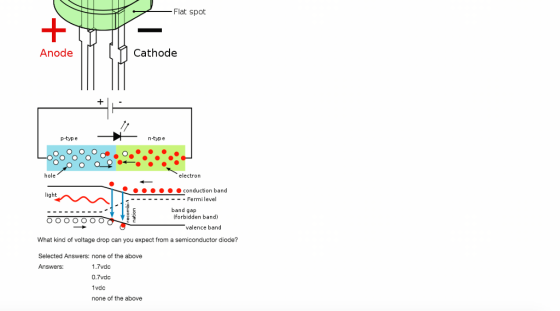

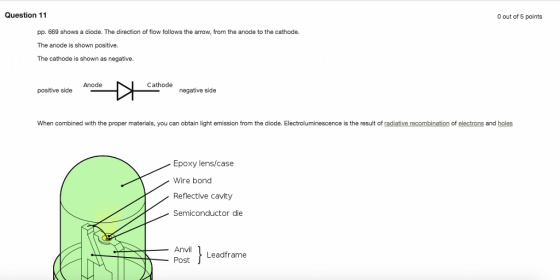

Question 11 O out of 5 points pp. 669 shows a diode. The direction of flow follows the arrow, from the anode to the cathode. The anode is shown positive The cathode is shown as negative Anode Cathode positive side negative side When combined with the proper materials, you can obtain light emission from the diode. Electroluminescence is the result of radiative recombination of electrons and holes Epoxy lens/case Wire bond Reflective cavity Semiconductor die Anvil Leadframe
