A wire loop consists of two half circles and two straight lines, which are both perpendicular...
The figure below shows a closed loop with current i = 4.42 A. The loop consists of a half-circle of radius 3.39 m, two...
The figure below shows a closed loop with current i = 4.42 A. The loop consists of a half-circle of radius 3.39 m, two quarter-circles each of radius 1.76 m, and three radial straight wires. What is the magnitude of the net magnetic field at the common center of the circular sections?
Question 12 1 pts A long straight wire is bent as shown to form two perpendicular...
Question 12 1 pts A long straight wire is bent as shown to form two perpendicular straight wires and a quarter of a circle (radius = 2.0 m). A current of 40 A is directed as shown. What is the magnitude of the magnetic field at point C created by a segment of the half infinite wire? in UT, 3 significant figures 1 • С O 0.00 o B W
A long straight wire is bent as shown to form two perpendicular straight wires and a...
A long straight wire is bent as shown to form two perpendicular
straight wires and a quarter of a circle (radius = 2.0 m). A
current of 40 A is directed as shown. (1) What is the magnitude of
the magnetic field at point C created by a quarter of a circle? in
μT, 3 significant figures.
(2) What is the magnitude of the magnetic field at point C
created by a segment of the half infinite wire? in μT,...
Could someone please help me with all parts of this question? Question 4 (20 marks) A long wire carries a current I. The current is perpendicular to a wire loop ABCDA that consists of two straight se...
Could someone please help me with all parts of this
question?
Question 4 (20 marks) A long wire carries a current I. The current is perpendicular to a wire loop ABCDA that consists of two straight sections AB and CD, each of length 1, and two semi-circular straight sections: BC, with radius a, and DA, with radius b. The semi-circular sections have the same centre of curvature that coincides with the wire. The current produces a magnetic field of magnitude'...
Current loop with two circular and two linear parts QUESTION 4.4C A steady current of intensity...
Current loop with two circular and two linear parts QUESTION 4.4C A steady current of intensity I (I> 0) flows along a planar loop consisting of two circular and two straight wire conductors, as in Fig.Q4.2. The medium is air. The magnetic flux density vector at the center of the circles (point O) (A) is directed into the plane of drawing (B) is directed out of the plane of drawing (C) lies in the plane of drawing. (D) is zero....
A flat rectangular wire loop is positioned next to a long straight current-carrying wire
Problem 6: A flat rectangular wire loop is positioned next to a long straight current-carrying wire. Both the loop and the wire are in the plane of the page, and the direction of the current is clearly indicated in the figure.Part (a) Which image best indicates the direction of the magnetic field due to the current in the long straight wire at a point inside the loop? Part (b) How does the magnitude of the magnetic field change as the perpendicular...
A conductor consists of a circular loop of radius R = 34.0 cm and two long,...
A conductor consists of a circular loop of radius R = 34.0 cm and two long, straight sections as shown in the figure. The wire lies in the plane of the paper and carries a current I-1.50 A. Find the magnetic field at the center of the loop. magnitude direction .-Select Need Help?Read It

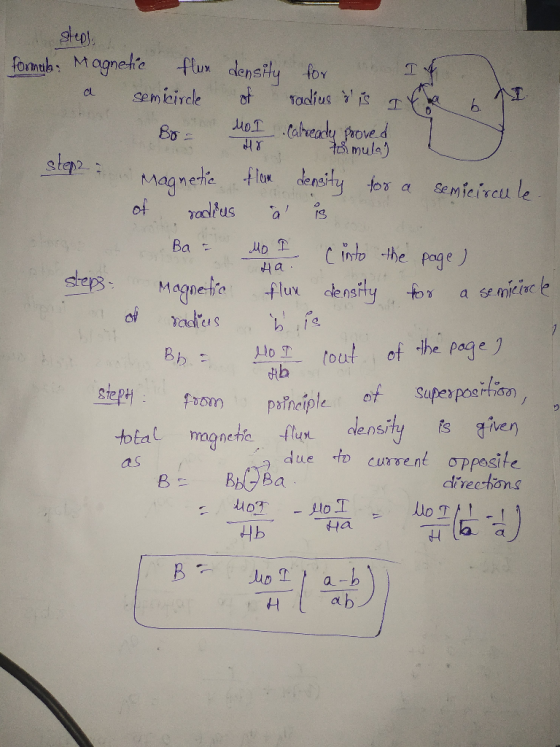

A loop of wire is in the shape of two concentric semicircles as shown. (Figure 1) The inner circle has radius a; the ou...
A loop of wire is in the shape of two concentric semicircles as
shown. (Figure 1) The inner circle has radius a; the outer circle
has radius b. A current I flows clockwise through the outer wire
and counterclockwise through the inner wire. What is the direction
of the magnetic field at the center of the semicircles?
Question 4 A loop of wire is in the shape of two concentric semicircles as shown. (Eigure 1) The inner circle has radius...
A straight horizontal wire of length 5m is in a uniform magnetic field which has a...
A straight horizontal wire of length 5m is in a uniform magnetic field which has a magnetic flux density of 120mT. The wire is perpendicular to the field lines which act due North. When the wire conducts a current of 14A from East to West calculate the magnitude and direction of the force on the wire.
A single current-carrying circular loop of radius R is placed next to a long, straight wire,...
A single current-carrying circular loop of radius
R is placed next to a long, straight wire, as
shown in the
figure. The current I in the wire flows to the
right and the a current I flows counter-clockwise
on the loop. What is the net magnetic field produce at the center
of the loop?
I R/2
The figure below shows a closed loop with current i = 4.42 A. The loop consists of a half-circle of radius 3.39 m, two quarter-circles each of radius 1.76 m, and three radial straight wires. What is the magnitude of the net magnetic field at the common center of the circular sections?
Question 12 1 pts A long straight wire is bent as shown to form two perpendicular straight wires and a quarter of a circle (radius = 2.0 m). A current of 40 A is directed as shown. What is the magnitude of the magnetic field at point C created by a segment of the half infinite wire? in UT, 3 significant figures 1 • С O 0.00 o B W
A long straight wire is bent as shown to form two perpendicular
straight wires and a quarter of a circle (radius = 2.0 m). A
current of 40 A is directed as shown. (1) What is the magnitude of
the magnetic field at point C created by a quarter of a circle? in
μT, 3 significant figures.
(2) What is the magnitude of the magnetic field at point C
created by a segment of the half infinite wire? in μT,...
Could someone please help me with all parts of this
question?
Question 4 (20 marks) A long wire carries a current I. The current is perpendicular to a wire loop ABCDA that consists of two straight sections AB and CD, each of length 1, and two semi-circular straight sections: BC, with radius a, and DA, with radius b. The semi-circular sections have the same centre of curvature that coincides with the wire. The current produces a magnetic field of magnitude'...
Current loop with two circular and two linear parts QUESTION 4.4C A steady current of intensity I (I> 0) flows along a planar loop consisting of two circular and two straight wire conductors, as in Fig.Q4.2. The medium is air. The magnetic flux density vector at the center of the circles (point O) (A) is directed into the plane of drawing (B) is directed out of the plane of drawing (C) lies in the plane of drawing. (D) is zero....
A conductor consists of a circular loop of radius R = 34.0 cm and two long, straight sections as shown in the figure. The wire lies in the plane of the paper and carries a current I-1.50 A. Find the magnetic field at the center of the loop. magnitude direction .-Select Need Help?Read It
A loop of wire is in the shape of two concentric semicircles as
shown. (Figure 1) The inner circle has radius a; the outer circle
has radius b. A current I flows clockwise through the outer wire
and counterclockwise through the inner wire. What is the direction
of the magnetic field at the center of the semicircles?
Question 4 A loop of wire is in the shape of two concentric semicircles as shown. (Eigure 1) The inner circle has radius...
A single current-carrying circular loop of radius
R is placed next to a long, straight wire, as
shown in the
figure. The current I in the wire flows to the
right and the a current I flows counter-clockwise
on the loop. What is the net magnetic field produce at the center
of the loop?
I R/2
