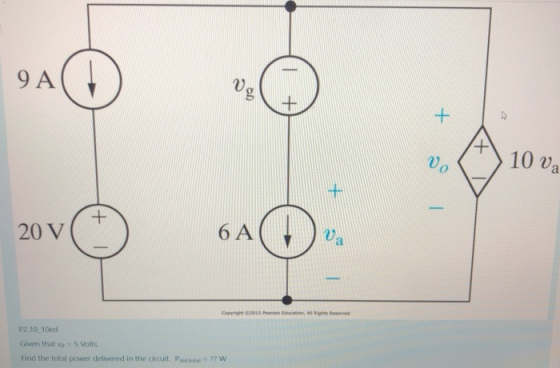

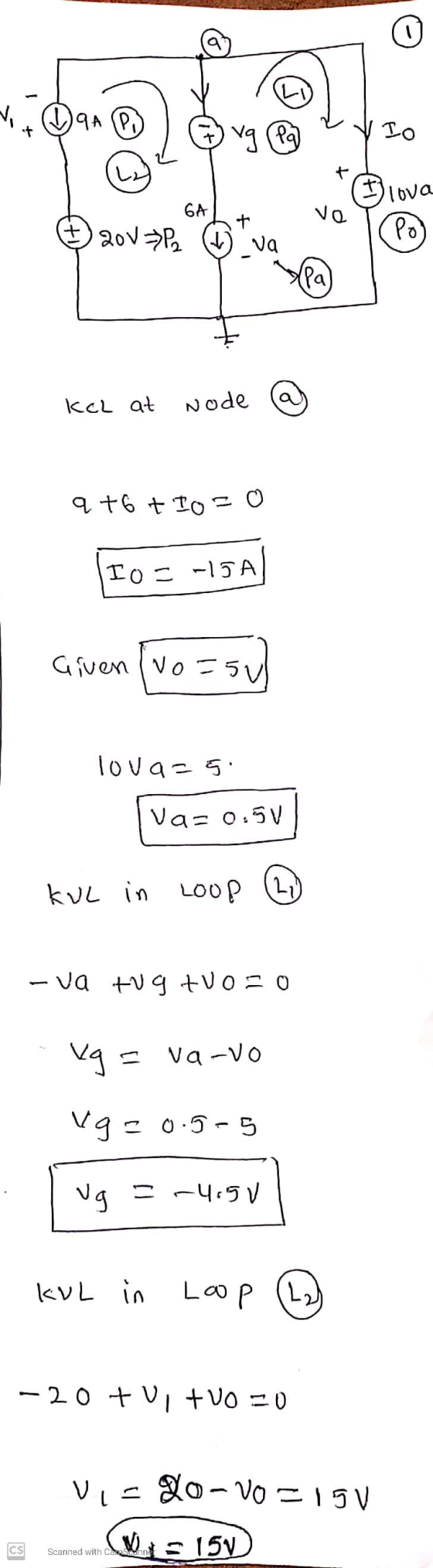

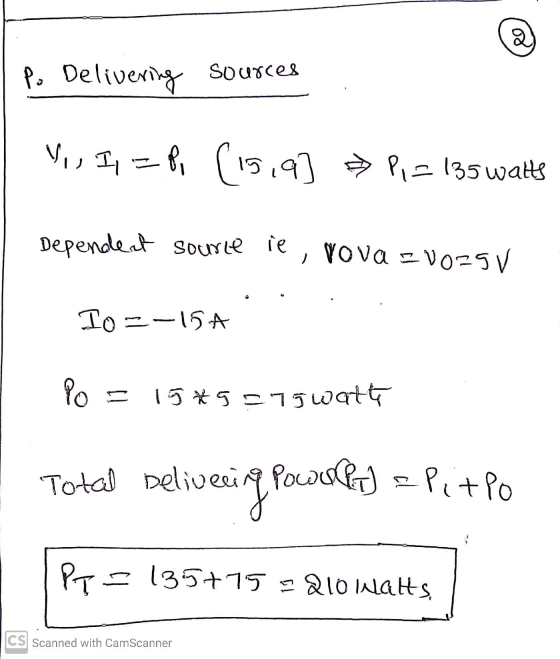

![P. Delivering Sources ,, II =P, (15,9] »P,= 135 watts Dependent source ie , NOVA EV0-90 Io = -15A Po 15*5575 watt Total Deli](http://img.homeworklib.com/questions/2f8bcc40-5f5c-11eb-95fb-53b42f560eca.png?x-oss-process=image/resize,w_560)
va R2 I. Q4e Given: Va = 20 Volts lo = 6 Amps R4 = 40...
va R2 I. Q4e Given: Va = 20 Volts lo = 6 Amps R4 = 40 2 (Ohm) R2 = 40 (Ohm) R3 = 10 a) Find the Thévenin equivalent voltage Vth- (Ohm) Vth = Volts b) Find the Thévenin equivalent resistance Rth. Rth = (Ohms)
EEEN 221-assignment 1 × ˇ 21 assignment%201%20(20 18 2019).pdf Question 6) For the circuit of Figure 6: (10 marks) a) U...
EEEN 221-assignment 1 × ˇ 21 assignment%201%20(20 18 2019).pdf Question 6) For the circuit of Figure 6: (10 marks) a) Use the superposition method to find V and 5 marks c) Deduce the power delivered by the voltage source (5 marks) j3002 2A Vo 30Ω 10V 5Ω 100 Figure 6 Question 7) (5 marks) A constant voltage at a frequency of 1 MHz is maintained across a circuit consisting of an inductor in series with a variable capacitor. When the...
6. Inverting Amplifier 1 (4. Useful Circuits, 1.Inverting Amplifier) 2 10 V 16 Va Vo 15 V 오
solve for Va and io but please give a
detailed steps. thank you
6. Inverting Amplifier 1 (4. Useful Circuits, 1.Inverting Amplifier) 2 10 V 16 Va Vo 15 V 오
6. Inverting Amplifier 1 (4. Useful Circuits, 1.Inverting Amplifier) 2 10 V 16 Va Vo 15 V 오
I need all the answers please. Thanks If a 15-V battery delivers 72.000 J in 6...
I need all the answers please. Thanks
If a 15-V battery delivers 72.000 J in 6 s, find (a) the amount of charge delivered and (b) the current produced. (a)TT4.8 (b)To.8 ori We were unable to transcribe this imageChapter 1, Problem 1.11 The charge entering the positive terminal of an element is given by the expression qt)20e5.00t mC. The power delivered to the element is p(t)-9.2e8t w. Compute the current in the element as a function of time, the voltage...
plz show all steps Problem 2. (20 points) For the circuit shown below, 5v 102 15...
plz show all steps
Problem 2. (20 points) For the circuit shown below, 5v 102 15 VO S150 VS22 E 200 S40 2 a) Find the voltage v using Nodal Analysis; b) Find the power associated with the 20 N resistor. (Note: the dependent source is 5*v, not 5 volts!).
s Find vo in the circuit shown in Fig.P3. using Thevenin's Theorem. vA/5 10? + DA...
s Find vo in the circuit shown in Fig.P3. using Thevenin's Theorem. vA/5 10? + DA 10? 50 V 30 ? 39 ? 78 ?
Rς = 20 ΚΩ 5 kΩ - 10 V + υ Λ 8 ΚΩ 2 ΚΩς...
Rς = 20 ΚΩ 5 kΩ - 10 V + υ Λ 8 ΚΩ 2 ΚΩς 5V 1-10V 27 ΚΩξυ, Ενέ ε11ε , και το P5.26_10ed Given: Va+2V Find vo ΤΗ V
please do 5 and 6 E 100 V 20° R 222 XL 50 Xc 100 5....
please do 5 and 6
E 100 V 20° R 222 XL 50 Xc 100 5. For the circuit above, calculate: a. Total admittance (Y) b. Total conductance (G) c. Total susceptance (B) d. Find IT, IR, IL & IC e. Total Apparent, Reactive & Real Power (S, Q & P) f. Power Factor (pf) g. Draw the complete admittance triangle with G, -JBL +jBc and Yt all shown and quantified. h. Draw the complete phasor diagram with E, I,...
EET315 Netwi -2019 Winter 4. Using Laplace Transform to calculate Vo(t) for the following circuit, and power supply V=10 volts; all the rest components (capacitor, resistor, inductor) are represe...
EET315 Netwi -2019 Winter 4. Using Laplace Transform to calculate Vo(t) for the following circuit, and power supply V=10 volts; all the rest components (capacitor, resistor, inductor) are represented by C, R and L T-O Volt)
EET315 Netwi -2019 Winter 4. Using Laplace Transform to calculate Vo(t) for the following circuit, and power supply V=10 volts; all the rest components (capacitor, resistor, inductor) are represented by C, R and L T-O Volt)
The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three...
The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, VB, and Vc). The resistor values are: R1=2 Ohms, R=R3=4 Ohms, and the battery voltages are VA=25 V, V8=15 V, and Vc=20 V. When the circuit is connected, what will be the power dissipated by R1? Vc M R1 + VA VB - R2 R3 1.25 W 2.0W 12.5 W 6.25 W 8.13 W The circuit shown in the figure contains four...
va R2 I. Q4e Given: Va = 20 Volts lo = 6 Amps R4 = 40 2 (Ohm) R2 = 40 (Ohm) R3 = 10 a) Find the Thévenin equivalent voltage Vth- (Ohm) Vth = Volts b) Find the Thévenin equivalent resistance Rth. Rth = (Ohms)
EEEN 221-assignment 1 × ˇ 21 assignment%201%20(20 18 2019).pdf Question 6) For the circuit of Figure 6: (10 marks) a) Use the superposition method to find V and 5 marks c) Deduce the power delivered by the voltage source (5 marks) j3002 2A Vo 30Ω 10V 5Ω 100 Figure 6 Question 7) (5 marks) A constant voltage at a frequency of 1 MHz is maintained across a circuit consisting of an inductor in series with a variable capacitor. When the...
solve for Va and io but please give a
detailed steps. thank you
6. Inverting Amplifier 1 (4. Useful Circuits, 1.Inverting Amplifier) 2 10 V 16 Va Vo 15 V 오
6. Inverting Amplifier 1 (4. Useful Circuits, 1.Inverting Amplifier) 2 10 V 16 Va Vo 15 V 오
I need all the answers please. Thanks
If a 15-V battery delivers 72.000 J in 6 s, find (a) the amount of charge delivered and (b) the current produced. (a)TT4.8 (b)To.8 ori We were unable to transcribe this imageChapter 1, Problem 1.11 The charge entering the positive terminal of an element is given by the expression qt)20e5.00t mC. The power delivered to the element is p(t)-9.2e8t w. Compute the current in the element as a function of time, the voltage...
plz show all steps
Problem 2. (20 points) For the circuit shown below, 5v 102 15 VO S150 VS22 E 200 S40 2 a) Find the voltage v using Nodal Analysis; b) Find the power associated with the 20 N resistor. (Note: the dependent source is 5*v, not 5 volts!).
s Find vo in the circuit shown in Fig.P3. using Thevenin's Theorem. vA/5 10? + DA 10? 50 V 30 ? 39 ? 78 ?
Rς = 20 ΚΩ 5 kΩ - 10 V + υ Λ 8 ΚΩ 2 ΚΩς 5V 1-10V 27 ΚΩξυ, Ενέ ε11ε , και το P5.26_10ed Given: Va+2V Find vo ΤΗ V
please do 5 and 6
E 100 V 20° R 222 XL 50 Xc 100 5. For the circuit above, calculate: a. Total admittance (Y) b. Total conductance (G) c. Total susceptance (B) d. Find IT, IR, IL & IC e. Total Apparent, Reactive & Real Power (S, Q & P) f. Power Factor (pf) g. Draw the complete admittance triangle with G, -JBL +jBc and Yt all shown and quantified. h. Draw the complete phasor diagram with E, I,...
EET315 Netwi -2019 Winter 4. Using Laplace Transform to calculate Vo(t) for the following circuit, and power supply V=10 volts; all the rest components (capacitor, resistor, inductor) are represented by C, R and L T-O Volt)
EET315 Netwi -2019 Winter 4. Using Laplace Transform to calculate Vo(t) for the following circuit, and power supply V=10 volts; all the rest components (capacitor, resistor, inductor) are represented by C, R and L T-O Volt)
The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, VB, and Vc). The resistor values are: R1=2 Ohms, R=R3=4 Ohms, and the battery voltages are VA=25 V, V8=15 V, and Vc=20 V. When the circuit is connected, what will be the power dissipated by R1? Vc M R1 + VA VB - R2 R3 1.25 W 2.0W 12.5 W 6.25 W 8.13 W The circuit shown in the figure contains four...
