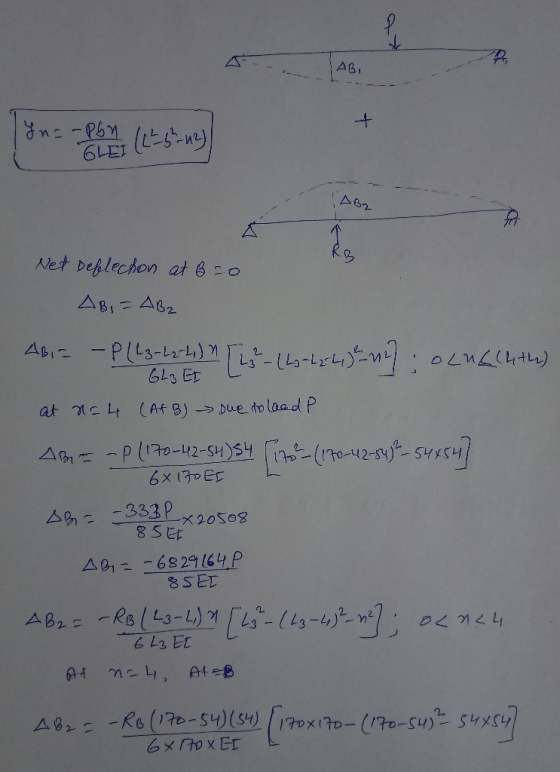

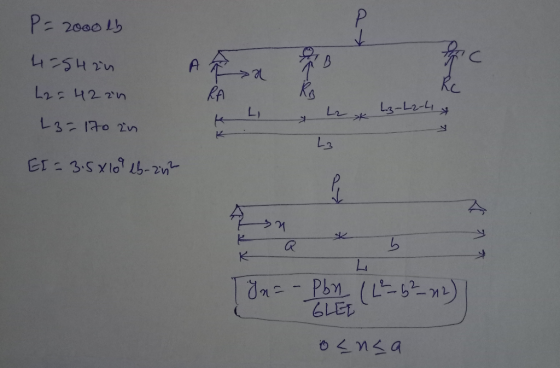

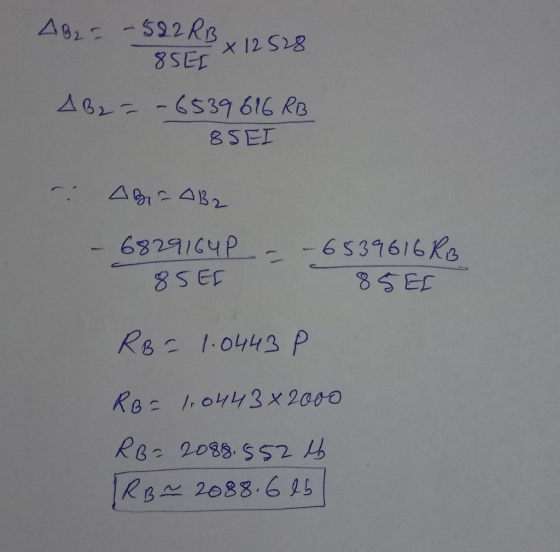

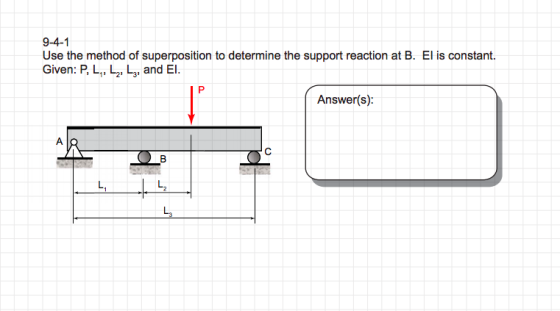

9-4-1 Use the method of superposition to determine the support reaction at B. El is constant...
9-4-2 Use the method of superposition to determine the support reaction at B. El is constant....
9-4-2 Use the method of superposition to determine the support reaction at B. El is constant. Given: w, L, L2, and El. | Answer(s): TTTT TTTT Print and solve this problem, WE2000N/m L1= 1250mm L2 4000mm El-16E6N-m^2 then select the most appropriate answer below knowing O 4470N O 5660N 4250N None of these. O 3090N
HW: 9-4-7 Using the method of superposition, find the support reactions in terms of P, L,...
HW: 9-4-7 Using the method of superposition, find the support
reactions in terms of P, L, and EI.
Answers: Ay=11P/16 , By=5P/16 , Ma=3PL/16
HW: 9-4-7 Using the method of superposition, find the support reactions in terms of P, L, and El. Be sure to state what case number(s) you are using from Table 9.1. El is constant. Answer(s): 0.5L Table 9.1 Beam Deflections and Slope Case 1 Anar = 05 = 2 y een ( – 3LxP) PL Case...
For the cantilever beam with a constant El and loading shown, using the superposition method to...
For the cantilever beam with a constant El and loading shown, using the superposition method to determine 1) the deflection at B; 2) the slope at B. MWL Mo= 6
By stiffness method : determine the displacements at Joint B and at Joint C in the three-span beam shown in the figure below. The flexural rigidity of the beam is EI and is constant along the length o...
By stiffness method : determine the displacements at Joint B and
at Joint C in the three-span beam shown in the figure below. The
flexural rigidity of the beam is EI and is constant along the
length of the beam. Note that L1 = L2 = L3 = L P1 = P2 = P3 = P
M = PL
wL = P Also, find the reactions at Joint A.
い12 8
い12 8
Problem 1. Determine the displacement and slope at C. El is constant. Use method of virtual...
Problem 1. Determine the displacement and slope at C. El is constant. Use method of virtual work. 8 kN 4 kN B. - 3m 3m 3m-
Question 1: Consider the beam below. Please use the table below to determine the appropriate valu...
Question 1: Consider the beam below. Please use the table below to determine the appropriate values for your question. The effects of self-weight are negligible compared to effects of the applied loading. Draw the bending moment diagram (BMD) and shear force diagram (SFD), clearly indicating the values of V & Mat A, B, C, & D Also show the location(s) and value(s) of maximum sagging and/or hogging moment. Include your working. L2 L3 Group 2A Li (mm) w (kN/m)P (kN)...
1. Determine the reactions at the supports A and B using Force Method. El is constant....
1. Determine the reactions at the supports A and B using Force Method. El is constant. w B А L 2 L 2 (i) (ii) Use, L = 4 m Use, w = 5 kN/m
please use the superposition method 9.83 and 9.84 For the beam shown, determine the reaction at...
please use the superposition method

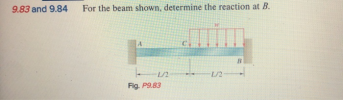

9.83 and 9.84 For the beam shown, determine the reaction at B. 1/2 Fig. 29.83 1/2-
SUPERPOSITION METHOD A. Determine the Maximum Deflection with constant E and I B. Determine the Maximum...
SUPERPOSITION METHOD
A. Determine the Maximum Deflection with constant E
and I
B. Determine the Maximum Deflection using the given
cross-sectional areas and E=200GPa
SUPER OSInow ME THOD ,た 10mm Find - Maxi mun Dcikuhon 2. May mun lefkehbn
Determine the vertical displacement of point C. El is constant. Use the method of virtual work....
Determine the vertical displacement of point C. El is constant. Use the method of virtual work. Prob. 8-55 80 KN.m 20 KN B -3 m 4 m
9-4-2 Use the method of superposition to determine the support reaction at B. El is constant. Given: w, L, L2, and El. | Answer(s): TTTT TTTT Print and solve this problem, WE2000N/m L1= 1250mm L2 4000mm El-16E6N-m^2 then select the most appropriate answer below knowing O 4470N O 5660N 4250N None of these. O 3090N
HW: 9-4-7 Using the method of superposition, find the support
reactions in terms of P, L, and EI.
Answers: Ay=11P/16 , By=5P/16 , Ma=3PL/16
HW: 9-4-7 Using the method of superposition, find the support reactions in terms of P, L, and El. Be sure to state what case number(s) you are using from Table 9.1. El is constant. Answer(s): 0.5L Table 9.1 Beam Deflections and Slope Case 1 Anar = 05 = 2 y een ( – 3LxP) PL Case...
For the cantilever beam with a constant El and loading shown, using the superposition method to determine 1) the deflection at B; 2) the slope at B. MWL Mo= 6
By stiffness method : determine the displacements at Joint B and
at Joint C in the three-span beam shown in the figure below. The
flexural rigidity of the beam is EI and is constant along the
length of the beam. Note that L1 = L2 = L3 = L P1 = P2 = P3 = P
M = PL
wL = P Also, find the reactions at Joint A.
い12 8
い12 8
Problem 1. Determine the displacement and slope at C. El is constant. Use method of virtual work. 8 kN 4 kN B. - 3m 3m 3m-
Question 1: Consider the beam below. Please use the table below to determine the appropriate values for your question. The effects of self-weight are negligible compared to effects of the applied loading. Draw the bending moment diagram (BMD) and shear force diagram (SFD), clearly indicating the values of V & Mat A, B, C, & D Also show the location(s) and value(s) of maximum sagging and/or hogging moment. Include your working. L2 L3 Group 2A Li (mm) w (kN/m)P (kN)...
1. Determine the reactions at the supports A and B using Force Method. El is constant. w B А L 2 L 2 (i) (ii) Use, L = 4 m Use, w = 5 kN/m
please use the superposition method
9.83 and 9.84 For the beam shown, determine the reaction at B. 1/2 Fig. 29.83 1/2-
SUPERPOSITION METHOD
A. Determine the Maximum Deflection with constant E
and I
B. Determine the Maximum Deflection using the given
cross-sectional areas and E=200GPa
SUPER OSInow ME THOD ,た 10mm Find - Maxi mun Dcikuhon 2. May mun lefkehbn
Determine the vertical displacement of point C. El is constant. Use the method of virtual work. Prob. 8-55 80 KN.m 20 KN B -3 m 4 m
