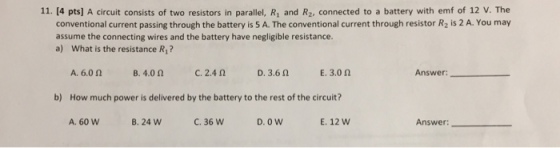

![11. [4 pts] A circuit consists of two resistors in parallel, Ri and R2, connected to a battery with emf of 12 V. The conventional current passing through the battery is 5 A. The conventional current through resistor R2 is 2 A. You may assume the connecting wires and the battery have negligible resistance. a) What is the resistance R1? B.4.0 Ω C. 2.4 Ω Answer D. 3.6 Ω E. 3.0 Ω A.6.0 Ω How much power is delivered by the battery to the rest of the circuit? A. 60 W b) B. 24 W C.36 W D. O W E. 12 W Answer](http://img.homeworklib.com/questions/d33052b0-6028-11eb-8cd8-a77b4289d02b.png?x-oss-process=image/resize,w_560)
Homework Answers
Add Answer to:
11. [4 pts] A circuit consists of two resistors in parallel, Ri and R2, connected to...
21.7- Resistors in Series and Parallel In the circuit below the voltage supplied by the battery...
21.7- Resistors in Series and Parallel In the circuit below the voltage supplied by the battery is 24.0 V and the resistance of the resistors, R1, R2 and R3 are 4.0 Ω, 10.0 Ω and 24.0 Ω respectively what is the current through the resistor R? R1 R2 Ri Submit Answer Tries 0/10 What is the current through the resistor R2? Submit Answer Tries o/1o What is the current through the resistor R3? Submit Answer Tries 0/10
In the circuit diagram below, the three resistors have different resistance with the value for each...
In the circuit diagram below, the three resistors have different resistance with the value for each resistor given below. The wires connecting the battery and resistors have negliglible resistance R3 R1 R2 The resistance R3-20.0 Ω, RI-25.0 Ω and R2-10 0 Ω. The battery supplies 14.0. Assume that the battery has no internal resistance. What is the current following through R3? Submit Answer Tries 0/10 What is the current following through R1? Submit Answer Tries 0/10 What is the current...
Two identical resistors, R1 and R2, are connected in parallel, and this parallel combination is then...
Two identical resistors, R1 and R2, are
connected in parallel, and this parallel combination is then
connected in series with a 100 Ω resistor, R3 as shown
below
If the total resistance of the circuit is 300 Ω what must be the
resistance of R1 and R2? If the circuit is
connected to a 30V battery, what would the current through
R1? What voltage is a dropped across R3?
100 S
2l The resistors Ri and R2 are connected in parallel. R2 For this cireuit a. What...
2l The resistors Ri and R2 are connected in parallel. R2 For this cireuit a. What is the equivalent resist ance of the combination Ri and R2? b. What is the current through the battery? c. What is the voltage drop across the resistor Ra? d. What is the current through the resistor R2? e. What choice of Ri and Re would give the same current passing through the two resistors?
2. Three resistors (R1, R2, and R3) are connected in parallel to a battery with a...
2. Three resistors (R1, R2, and R3) are connected in parallel to a battery with a voltage of V. Assign values to R1 (2.0 Ω), R2 (4.0 Ω), and R3 (6.0 Ω) and voltage (9.0 V) a) Solve for the current through the battery. (3 pts) b) Solve for the current through R2. (3 pts)
Four resistors are connected to a battery with a terminal voltage of 12 V, as shown...
Four resistors are connected to a battery with a terminal
voltage of 12 V, as shown in the figure below. (Assume
R1 = 31.0 Ω and R2 = 70.0
Ω.)
(a) How would you reduce the circuit to an equivalent single
resistor connected to the battery? Use this procedure to find the
equivalent resistance of the circuit.
Ω
(b) Find the current delivered by the battery to this equivalent
resistance.
A
(c) Determine the power delivered by the battery.
W...
A circuit has three resistors. R2 and R3 are in parallel. This combination is then connected...
A circuit has three resistors. R2 and R3 are in parallel. This combination is then connected in series with resistor R1. It is known that R1=1 ohm, R2= 2 ohms, and R3= 3 ohms. Find the current through R2. The battery has 12 V. Ignore the internal resistance.
A circuit consisting of 5 resistors is shown in the graph
A circuit consisting of 5 resistors is shown in the graph. Their resistances are R1 = 18 Ω, R2 = 75 Ω, R3=98Ω,R4 = 27 Ω, and R5 = 36 Ω, and the emf of the battery is ε=5.5 V. Suppose the internal resistance of the battery is zero. Part (a) Express the equivalent resistance of the combination of R2, R3, and R4. Part (b) Express the total resistance of the circuit R in terms of R1, R2, R3,R4. and R5. Part (c)...
14) (25 points). Consider the circuit sketched below. If the battery provides an emf of 6.0...
14) (25 points). Consider the circuit sketched below. If the battery provides an emf of 6.0 V and every resistor has a resistance of 2.0 Ω 2. 7 points. a) What is the equivalent resistance of the resistor network 7 points. b) What are the currents through the resistors Ri and R2. 7 points. c) What are the voltages across the resistors R1 and R2 4 points. d) Which dissipates more power; Ri or R2?
Three Resistors in Parallel Three resistors are connected in parallel as shown in figure (a). A...
Three Resistors in Parallel Three resistors are connected in parallel as shown in figure (a). A potential difference of 12.0V is maintained between points a and b. Three resistors connected in parallel. The Another circuit with three resistors and a voltage across each resistor is 12.0 V. battery. Is it equivalent to the circuit in (a)? a Ž 3.00 6.00 9.00 3.00 6.00 09.00 (a) Calculate the equivalent resistance of the circuit. SOLUTION Conceptualize Figure (a) shows that we are...
21.7- Resistors in Series and Parallel In the circuit below the voltage supplied by the battery is 24.0 V and the resistance of the resistors, R1, R2 and R3 are 4.0 Ω, 10.0 Ω and 24.0 Ω respectively what is the current through the resistor R? R1 R2 Ri Submit Answer Tries 0/10 What is the current through the resistor R2? Submit Answer Tries o/1o What is the current through the resistor R3? Submit Answer Tries 0/10
In the circuit diagram below, the three resistors have different resistance with the value for each resistor given below. The wires connecting the battery and resistors have negliglible resistance R3 R1 R2 The resistance R3-20.0 Ω, RI-25.0 Ω and R2-10 0 Ω. The battery supplies 14.0. Assume that the battery has no internal resistance. What is the current following through R3? Submit Answer Tries 0/10 What is the current following through R1? Submit Answer Tries 0/10 What is the current...
Two identical resistors, R1 and R2, are
connected in parallel, and this parallel combination is then
connected in series with a 100 Ω resistor, R3 as shown
below
If the total resistance of the circuit is 300 Ω what must be the
resistance of R1 and R2? If the circuit is
connected to a 30V battery, what would the current through
R1? What voltage is a dropped across R3?
100 S
2l The resistors Ri and R2 are connected in parallel. R2 For this cireuit a. What is the equivalent resist ance of the combination Ri and R2? b. What is the current through the battery? c. What is the voltage drop across the resistor Ra? d. What is the current through the resistor R2? e. What choice of Ri and Re would give the same current passing through the two resistors?
2. Three resistors (R1, R2, and R3) are connected in parallel to a battery with a voltage of V. Assign values to R1 (2.0 Ω), R2 (4.0 Ω), and R3 (6.0 Ω) and voltage (9.0 V) a) Solve for the current through the battery. (3 pts) b) Solve for the current through R2. (3 pts)
Four resistors are connected to a battery with a terminal
voltage of 12 V, as shown in the figure below. (Assume
R1 = 31.0 Ω and R2 = 70.0
Ω.)
(a) How would you reduce the circuit to an equivalent single
resistor connected to the battery? Use this procedure to find the
equivalent resistance of the circuit.
Ω
(b) Find the current delivered by the battery to this equivalent
resistance.
A
(c) Determine the power delivered by the battery.
W...
14) (25 points). Consider the circuit sketched below. If the battery provides an emf of 6.0 V and every resistor has a resistance of 2.0 Ω 2. 7 points. a) What is the equivalent resistance of the resistor network 7 points. b) What are the currents through the resistors Ri and R2. 7 points. c) What are the voltages across the resistors R1 and R2 4 points. d) Which dissipates more power; Ri or R2?
Three Resistors in Parallel Three resistors are connected in parallel as shown in figure (a). A potential difference of 12.0V is maintained between points a and b. Three resistors connected in parallel. The Another circuit with three resistors and a voltage across each resistor is 12.0 V. battery. Is it equivalent to the circuit in (a)? a Ž 3.00 6.00 9.00 3.00 6.00 09.00 (a) Calculate the equivalent resistance of the circuit. SOLUTION Conceptualize Figure (a) shows that we are...
