Homework Answers
Add Answer to:

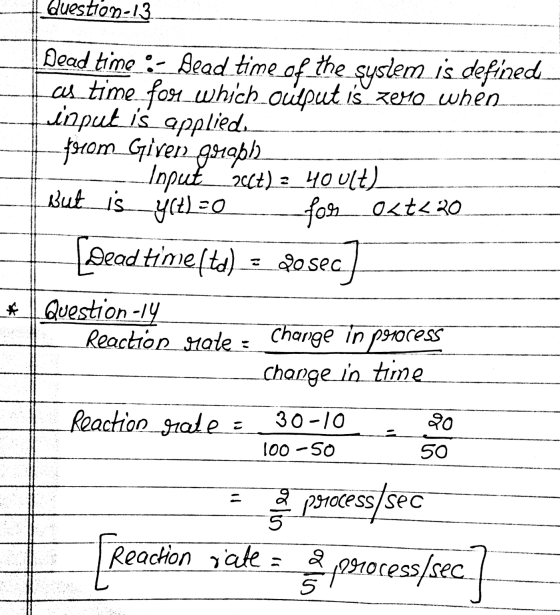

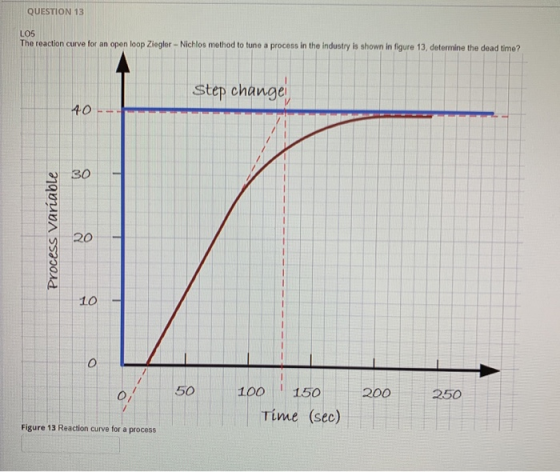

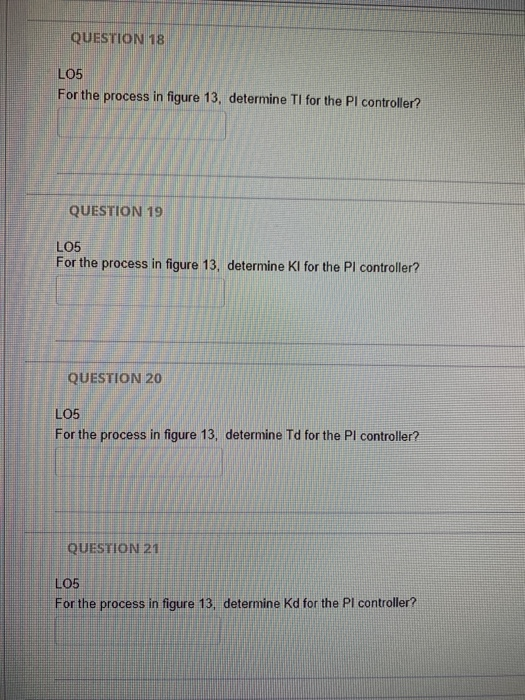

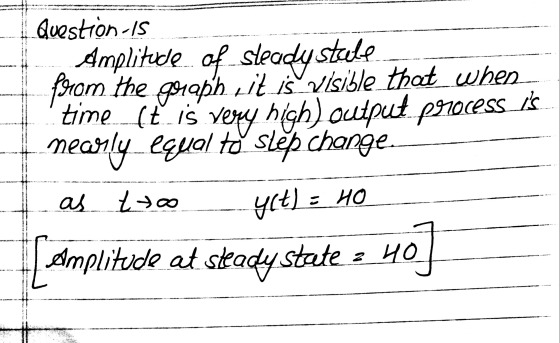

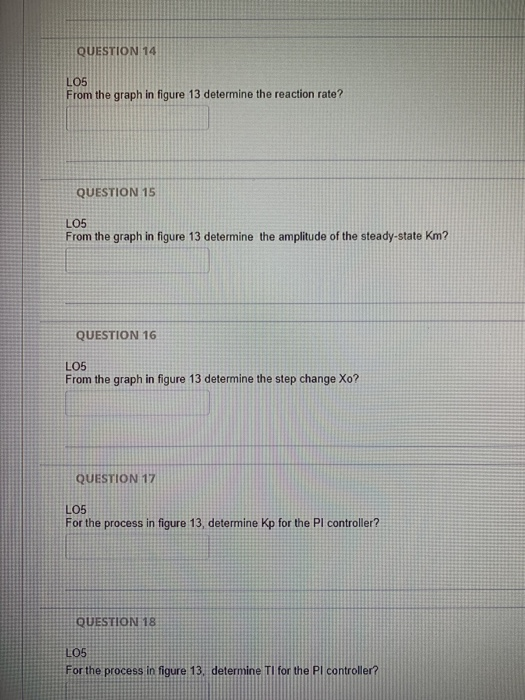

QUESTION 13 L05 The reaction curve for an open loop Ziegler - Nichlos method to tune...
a) Moving to another question will save this response. Question 5 The reaction curve for a heating process is shown below. Using the graph shown and the open loop Ziegler Nichlos method, find the...
a) Moving to another question will save this response. Question 5 The reaction curve for a heating process is shown below. Using the graph shown and the open loop Ziegler Nichlos method, find the dead time td 40 Input Step change 20 10 0 10 20 30 4050 Time (sec)
a) Moving to another question will save this response. Question 5 The reaction curve for a heating process is shown below. Using the graph shown and the open loop Ziegler...
uestion 14 The reaction curve for a heating process is shown below. Using the graph shown and the open loop Ziegler Find Kd for the PID controller Nichlos method 40 Input Step change 20 10 0 10 2...
uestion 14 The reaction curve for a heating process is shown below. Using the graph shown and the open loop Ziegler Find Kd for the PID controller Nichlos method 40 Input Step change 20 10 0 10 20 30 40 S0 0 Time (sec)
uestion 14 The reaction curve for a heating process is shown below. Using the graph shown and the open loop Ziegler Find Kd for the PID controller Nichlos method 40 Input Step change 20 10 0...
For the open loop response shown, find the ZN tuning parameters assuming that the step response...
For the open loop response shown, find the ZN tuning parameters assuming that the step response change is 10. pR 1.8 1.6 1.4 Assume step response amplitude change 10 A step response 10 1.2 0.8 0.6 APV 0.4 0.2 -0.2 0 1 23 4 5 7 Te d 11 13 15 17 19 From the process reaction curve determine the dead time, td, the time constant or time for the response to change, Tm, the ultimate value that the response...
In 1942, Ziegler and Nichols published a classic paper that introduced the continuous cycling method and the step t...
In 1942, Ziegler and Nichols published a classic paper that introduced the continuous cycling method and the step test method for PID controller tuning. 3. (a) What are the other two ways to tune a PID controller? What are the advantages and disadvantages for the two methods? (10 marks) (b) A step test was carried out on an electrical oven. Using the data in Table Q3, process the reaction curve in Figure Q3 and produce the tuning parameters for a...
A flow meter and variable speed pump have just been installed on the flow line for...
A flow meter and variable speed pump have just been installed on the flow line for the concentrate thickener. The variable speed pump has been installed near the mixing tank and the magnetic flow meter has been installed at the dosing point of the thickener. The distance between the reagent mixing tanks and the concentrate thickener is 730 m. A step test is performed to obtain the dynamic response of the flow to a change in pump speed. The full...
Can someone help me finish my table? all the inforamtion is there. molarity of HCL =0.5M g...
can someone help me finish my
table? all the inforamtion is there.
molarity of HCL =0.5M
grams of borax = 18.41g
the Relationship between Thermodynamics and Equilibrium 21 Complete the data table for each temperature studied. Beaker Label 42 °C 45 °C 36 ° C 39 °C 33 °C 2EC 138℃-2°C| ーでー 46℃ Temperature reading (C) Absolute temperature (K) 1/T Final buret reading Initial buret reading Volume of HCI Moles of H+ Moles of B Os(OH)2 Molarity of B,Os(OH)2 306.230.2...
It's a weak acid strong base titration Experiment 4: Identification of an unknown acid by titration...
It's a weak acid strong base titration
Experiment 4: Identification of an unknown acid by titration Page 2 of 15 Background In this experiment, you will use both qualitative and quantitative properties to determine an unknown acid's identity and concentration. To do this analysis, you will perform a titration of your unknown acid sample-specifically a potentiometric titration where you use a pH meter and record pH values during the titration, combined with a visual titration using a color indi- cator...
Grignard reagent THE GRIGNARD REAGENT-PREPARATION AND REACTION In this experiment, you will prepa...
i need help with the postlab questions please
Grignard reagent THE GRIGNARD REAGENT-PREPARATION AND REACTION In this experiment, you will prepare a Grignard reagent, phenyl magnesium bromide, from bromobenzene and magnesium metal. The Grignard reagent will then react with methyl benzoate to form triphenylmethanol. Introduction Grignard reagents, such as organomagnesium halides, were discovered in 1910 by French chemist Victor Grignard. The Grignard reaction is one of the most general methods for carbon- carbon bond formation in all of organic chemistry....
a) Moving to another question will save this response. Question 5 The reaction curve for a heating process is shown below. Using the graph shown and the open loop Ziegler Nichlos method, find the dead time td 40 Input Step change 20 10 0 10 20 30 4050 Time (sec)
a) Moving to another question will save this response. Question 5 The reaction curve for a heating process is shown below. Using the graph shown and the open loop Ziegler...
uestion 14 The reaction curve for a heating process is shown below. Using the graph shown and the open loop Ziegler Find Kd for the PID controller Nichlos method 40 Input Step change 20 10 0 10 20 30 40 S0 0 Time (sec)
uestion 14 The reaction curve for a heating process is shown below. Using the graph shown and the open loop Ziegler Find Kd for the PID controller Nichlos method 40 Input Step change 20 10 0...
For the open loop response shown, find the ZN tuning parameters assuming that the step response change is 10. pR 1.8 1.6 1.4 Assume step response amplitude change 10 A step response 10 1.2 0.8 0.6 APV 0.4 0.2 -0.2 0 1 23 4 5 7 Te d 11 13 15 17 19 From the process reaction curve determine the dead time, td, the time constant or time for the response to change, Tm, the ultimate value that the response...
In 1942, Ziegler and Nichols published a classic paper that introduced the continuous cycling method and the step test method for PID controller tuning. 3. (a) What are the other two ways to tune a PID controller? What are the advantages and disadvantages for the two methods? (10 marks) (b) A step test was carried out on an electrical oven. Using the data in Table Q3, process the reaction curve in Figure Q3 and produce the tuning parameters for a...
can someone help me finish my
table? all the inforamtion is there.
molarity of HCL =0.5M
grams of borax = 18.41g
the Relationship between Thermodynamics and Equilibrium 21 Complete the data table for each temperature studied. Beaker Label 42 °C 45 °C 36 ° C 39 °C 33 °C 2EC 138℃-2°C| ーでー 46℃ Temperature reading (C) Absolute temperature (K) 1/T Final buret reading Initial buret reading Volume of HCI Moles of H+ Moles of B Os(OH)2 Molarity of B,Os(OH)2 306.230.2...
It's a weak acid strong base titration
Experiment 4: Identification of an unknown acid by titration Page 2 of 15 Background In this experiment, you will use both qualitative and quantitative properties to determine an unknown acid's identity and concentration. To do this analysis, you will perform a titration of your unknown acid sample-specifically a potentiometric titration where you use a pH meter and record pH values during the titration, combined with a visual titration using a color indi- cator...
i need help with the postlab questions please
Grignard reagent THE GRIGNARD REAGENT-PREPARATION AND REACTION In this experiment, you will prepare a Grignard reagent, phenyl magnesium bromide, from bromobenzene and magnesium metal. The Grignard reagent will then react with methyl benzoate to form triphenylmethanol. Introduction Grignard reagents, such as organomagnesium halides, were discovered in 1910 by French chemist Victor Grignard. The Grignard reaction is one of the most general methods for carbon- carbon bond formation in all of organic chemistry....
