A block is sliding up the ramp as shown. The ramp is oriented at an angle...

Question

Question

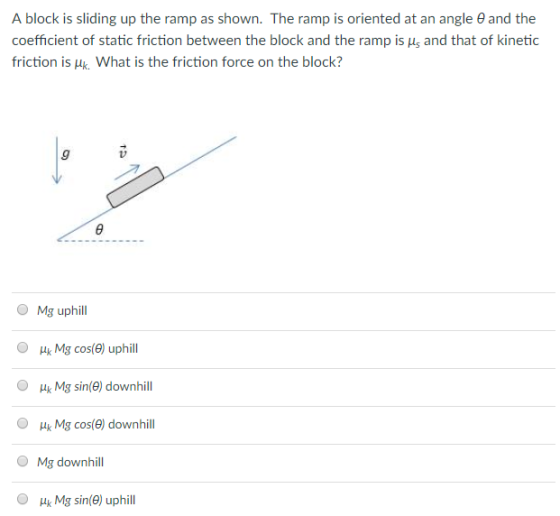

A block is sliding up the ramp as shown. The ramp is oriented at an angle θ and the coefficient of static friction between th

science physics

Answer 1

Answer #1

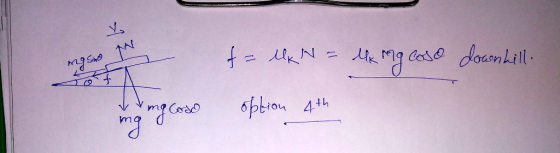

Okon

Answer 2
