This is a fluid mechanics problem. could you do part A and B. Thank you
Homework Answers
Add Answer to:
This is a fluid mechanics problem. could you do part A
and B. Thank you
ows...
A 30 reducing elbow is shown below. The fluid is water. Evaluate the x-y coordinate velocity...

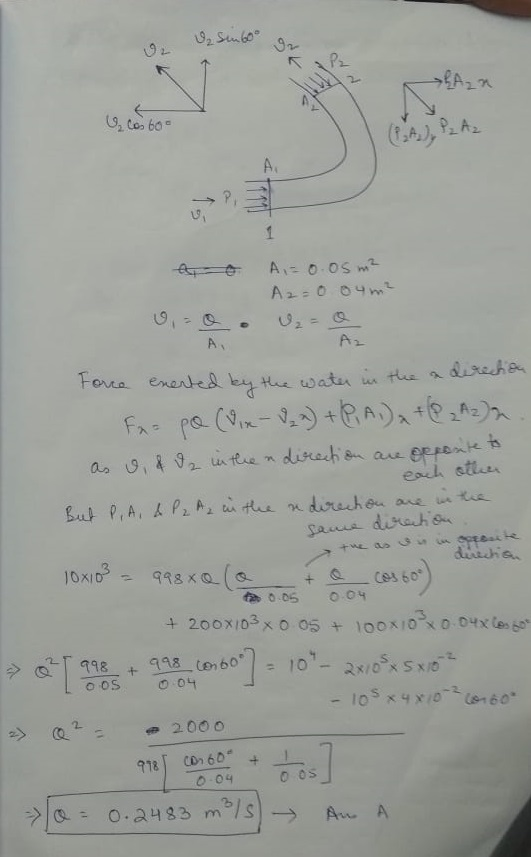

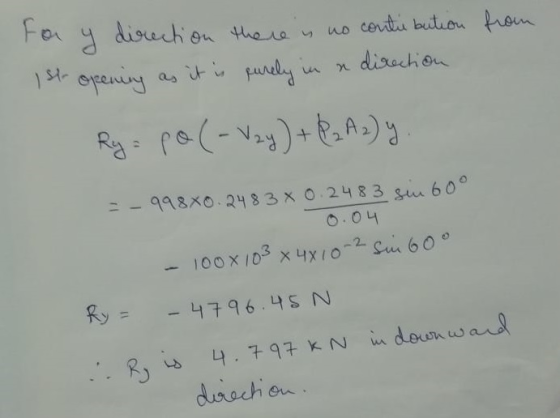

A 30 reducing elbow is shown below. The fluid is water. Evaluate the x-y coordinate velocity components . V,,VV, and V2), the gage pressure (in unit of kPa) at the section 2, and the resultant forces (R and Ry in unit of kN) that must be provided by the adjacent pipes to keep the elb from moving. Assume steady state. Give an extra attention on the flow directions. Problem 1 110 points] pelooo k Elbow mass M-10 k Internal volume,...
this us fluid mechanica. please do part B Review PartA Water is discharged through the 40-mm-diameter...
this us fluid mechanica. please do part B
Review PartA Water is discharged through the 40-mm-diameter elbow at 0.012 m /s. The pressure at A is 110 kPa. (Figure 1) Determine the magnitude of the resultant force the elbow exerts on the pipe. Express your answer to three significant figures and include the appropriate units FR 278 N Previous Answers Correct Part B Determine the direction of the resultant force the elbow exerts on the pipe Express your answer using...
Could you please help me solve this problem with the step by step procedure to the...
Could you please help me solve this problem with the
step by step procedure to the solution.Could you also provide some
key points that might help me understand the problem even more.
Thank you!
Question No.1.(20 marks) Air flows steadily and isentropically from atmospheric conditions (P"101.3 kPa absolute, ?-1.2 kg/m. T-2931 5 %) to a receiver pipe through a conv 0.005 m The cross-sectional area of the throat of the converging duct is ine the mass flowrate through the duct...
CHE 3315 FLUID MECHANICS PROBLEM SHEET 5: MASS CONSERVATION AND FLOW RATE 1. Determine the mass...
CHE 3315 FLUID MECHANICS PROBLEM SHEET 5: MASS CONSERVATION AND FLOW RATE 1. Determine the mass flow rate of air having a temperature of 20C and gauge pressure 80 kPa as it flows through a circular duct 400 mm in diameter with an average velocity of 3 m/s. The gas specific constant R 286.9 JK /kg 2. Determine the average velocity of the steady flow at one outlet of a T- junction if the inlet flow speed is 6 m/s...
I need help with part B thank you A pipe with an outside diameter of 150...
I need help with part B thank you
A pipe with an outside diameter of 150 mm and a wall thickness of 5 mm is subjected to the loadings shown in the figure below. P PO a For this analysis, use the following values: Distances, Loads, and Moments. a = 450 mm Px = 11.5 kN Py = 25.5 kN T = 15 kN-m (a) Calculate the maximum in-plane shear stress Tmax at point Hon the outer surface of the...
(1 P) Q1. Answer following multiple choice questions (A) The equation for change of momentum is...
(1 P) Q1. Answer following multiple choice questions (A) The equation for change of momentum is a) 4 (MT) - F41 b) A (ma) - F41 c) 4 (mV) - F41 d) 4 (mV)=F1 (B) Water flowing in a fire hose exits through a nozzle into atmosphere as shown in the figure below. Which of the following statements is true for the force exerted by the fluid on the nozzle? a) Fy - PA + PQ (V)-V1) b) - Fy...
Water is flowing through a horizontal pipe with diameter, D1, at a velocity, V1, and under a pres...
Water is flowing through a horizontal pipe with diameter, D1, at
a velocity, V1, and under a pressure, P1. It enters a 900 reducing
bend (Shown in grey in Fig 2) that connects to a vertical pipe of
diameter, D2. The inlet of the bend is 50 cm above the exit of the
bend (as shown in Fig 2). Axes for positive directions of x and z
coordinates are provided. Figure 2 Side view of reducing bend from
horizontal to...
PLEASE READ THIS BEFORE YOU START SOLVING: I need an explanation for Part d only. The correct answer is 4.02 m, but I don't know how to get it, thanks! No need to do parts a, b and c!! THANK YOUU...
PLEASE READ THIS
BEFORE YOU START SOLVING: I need an explanation for Part
d only. The correct answer is 4.02 m, but I don't know how to get
it, thanks! No need to do parts a, b and c!! THANK
YOUUUUU
Free Surface A curved surface as shown in the diagram above) defined as a quarter circle with radius of length r = 18 m is submerged in a liquid with the flat edge at a distance h - 10...
Quantitative: In the 1950s liquid hydrogen was considered as a fuel for a new type of...
Quantitative: In the 1950s liquid hydrogen was considered as a fuel for a new type of aircraft being developed, the SR-71 Blackbird (shown in Figure 1). Figure 1: The SR-71 Blackbird Early research on the project focused on which fuel to use for the Blackbird. Pratt & Whitney had a J-57 engine that was designed for kerosene and being considered for implementation on the Blackbird. The J-57 only took 5 months to convert to running on liquid hydrogen, however tests...
A 30 reducing elbow is shown below. The fluid is water. Evaluate the x-y coordinate velocity components . V,,VV, and V2), the gage pressure (in unit of kPa) at the section 2, and the resultant forces (R and Ry in unit of kN) that must be provided by the adjacent pipes to keep the elb from moving. Assume steady state. Give an extra attention on the flow directions. Problem 1 110 points] pelooo k Elbow mass M-10 k Internal volume,...
this us fluid mechanica. please do part B
Review PartA Water is discharged through the 40-mm-diameter elbow at 0.012 m /s. The pressure at A is 110 kPa. (Figure 1) Determine the magnitude of the resultant force the elbow exerts on the pipe. Express your answer to three significant figures and include the appropriate units FR 278 N Previous Answers Correct Part B Determine the direction of the resultant force the elbow exerts on the pipe Express your answer using...
Could you please help me solve this problem with the
step by step procedure to the solution.Could you also provide some
key points that might help me understand the problem even more.
Thank you!
Question No.1.(20 marks) Air flows steadily and isentropically from atmospheric conditions (P"101.3 kPa absolute, ?-1.2 kg/m. T-2931 5 %) to a receiver pipe through a conv 0.005 m The cross-sectional area of the throat of the converging duct is ine the mass flowrate through the duct...
CHE 3315 FLUID MECHANICS PROBLEM SHEET 5: MASS CONSERVATION AND FLOW RATE 1. Determine the mass flow rate of air having a temperature of 20C and gauge pressure 80 kPa as it flows through a circular duct 400 mm in diameter with an average velocity of 3 m/s. The gas specific constant R 286.9 JK /kg 2. Determine the average velocity of the steady flow at one outlet of a T- junction if the inlet flow speed is 6 m/s...
I need help with part B thank you
A pipe with an outside diameter of 150 mm and a wall thickness of 5 mm is subjected to the loadings shown in the figure below. P PO a For this analysis, use the following values: Distances, Loads, and Moments. a = 450 mm Px = 11.5 kN Py = 25.5 kN T = 15 kN-m (a) Calculate the maximum in-plane shear stress Tmax at point Hon the outer surface of the...
(1 P) Q1. Answer following multiple choice questions (A) The equation for change of momentum is a) 4 (MT) - F41 b) A (ma) - F41 c) 4 (mV) - F41 d) 4 (mV)=F1 (B) Water flowing in a fire hose exits through a nozzle into atmosphere as shown in the figure below. Which of the following statements is true for the force exerted by the fluid on the nozzle? a) Fy - PA + PQ (V)-V1) b) - Fy...
Water is flowing through a horizontal pipe with diameter, D1, at
a velocity, V1, and under a pressure, P1. It enters a 900 reducing
bend (Shown in grey in Fig 2) that connects to a vertical pipe of
diameter, D2. The inlet of the bend is 50 cm above the exit of the
bend (as shown in Fig 2). Axes for positive directions of x and z
coordinates are provided. Figure 2 Side view of reducing bend from
horizontal to...
PLEASE READ THIS
BEFORE YOU START SOLVING: I need an explanation for Part
d only. The correct answer is 4.02 m, but I don't know how to get
it, thanks! No need to do parts a, b and c!! THANK
YOUUUUU
Free Surface A curved surface as shown in the diagram above) defined as a quarter circle with radius of length r = 18 m is submerged in a liquid with the flat edge at a distance h - 10...
Quantitative: In the 1950s liquid hydrogen was considered as a fuel for a new type of aircraft being developed, the SR-71 Blackbird (shown in Figure 1). Figure 1: The SR-71 Blackbird Early research on the project focused on which fuel to use for the Blackbird. Pratt & Whitney had a J-57 engine that was designed for kerosene and being considered for implementation on the Blackbird. The J-57 only took 5 months to convert to running on liquid hydrogen, however tests...
