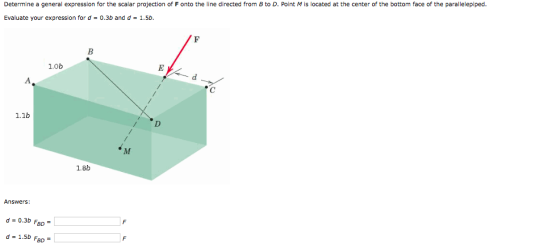

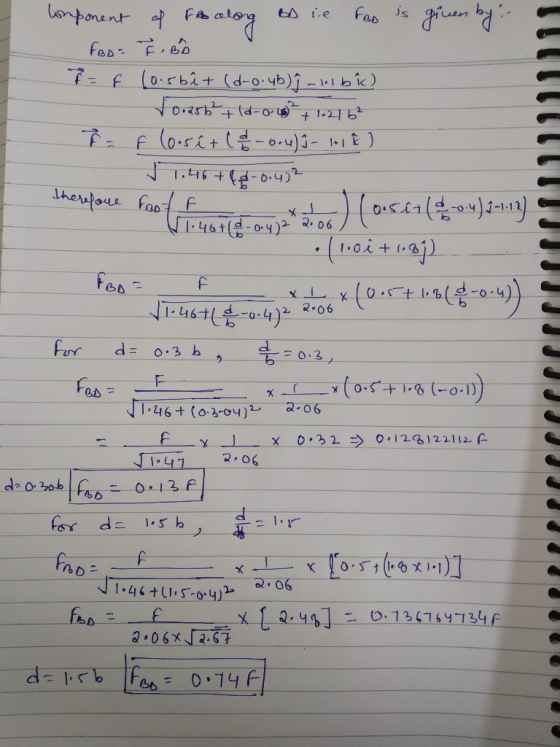

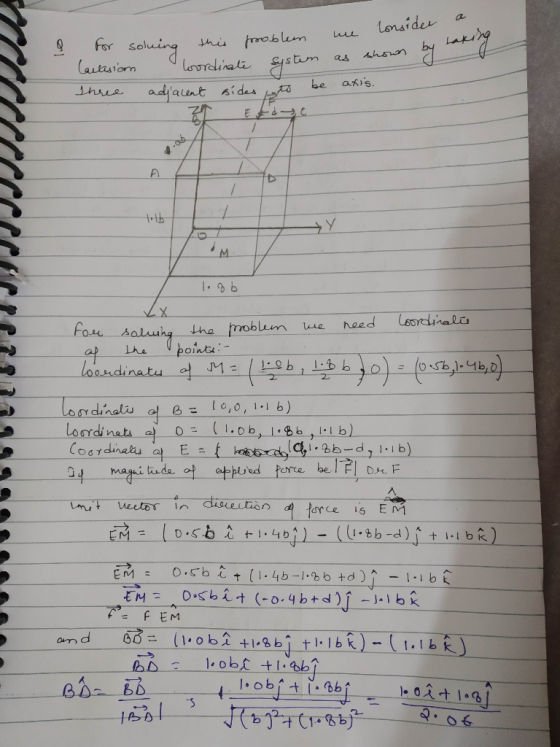

Determine a general expression for the scalar projection of F onto the line directed from B to D. Point M is located at the center of the bottom face of the parallelepiped. Evaluate your expression from d = .3b and d = 1.5b.
d= .3 FBD _____
d= 1.5b FBD ______
