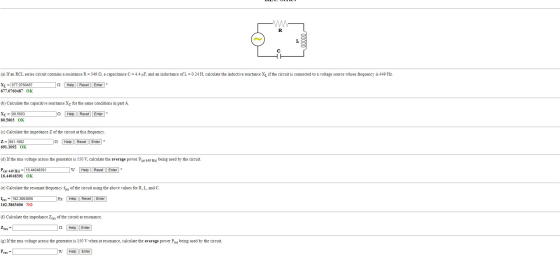

R 00000 с (a) If an RCL series circuit contains a resistance R = 349 2. a capacitance C = 4.4 uF, and an inductance of L = 0.I need help for (e),(f), and (g)

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

fres 21TLC L=0.24 H c=4.481565 271 2c fo= 154.88 HZ Jo.24x4,4x10-6 Eres= J R²+(*2*c)² = R2 3492 ot Parg- Vory. Irus. Cap d =

0 0
Add a comment
Know the answer?
Add Answer to:
I need help for (e),(f), and (g) R 00000 с (a) If an RCL series circuit...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • 1 ) A series circuit consisted of R= 10 KΩ, L= 42 mH , C= 2.1...

    1 ) A series circuit consisted of R= 10 KΩ, L= 42 mH , C= 2.1 µF is connected to an alternative voltage with maximum voltage of Vm = 24 V and frequency of 300.0 Hz. Find the following: Show the formula for each question. Show your Calculations – put result in a box with its unit. Please write your answer under each question a)Find the value of angular frequency ω . b) Inductive Reactance ( XL) c)Capacitive Reactance (...

  • The RCL series circuit shown below (R=0.04 2, L=5.00uH) is in resonance with a source that...

    The RCL series circuit shown below (R=0.04 2, L=5.00uH) is in resonance with a source that has a frequency of 2000 Hz and a 12.0-V ims potential. a.) what is the capacitance of the circuit? for parts (6)-(f), the circuit is now driven with the same potential but with a frequency of 1700th. b.) Determine the phase angle Ø between the potential across the RCL circuit and the current induced by the AC source, which leads the current or potential?...

  • A series RCL circuit has a resonant frequency of 2100 Hz. When operating at a frequency...

    A series RCL circuit has a resonant frequency of 2100 Hz. When operating at a frequency other than 2100 Hz, the circuit has a capacitive reactance of 6.30 and an inductive reactance of 32.0. What are the values of (a) L and (b) C? Note: The ac current and voltage are rms values and power is an average value unless indicated otherwise.

  • A series RCL circuit has a resonant frequency of 2000 Hz. When operating at a frequency...

    A series RCL circuit has a resonant frequency of 2000 Hz. When operating at a frequency other than 2000 Hz, the circuit has a capacitive reactance of 6.20 and an inductive reactance of 29.0. What are the values of (a) L and (b) C? Note: The ac current and voltage are rms values and power is an average value unless indicated otherwise.

  • A series RCL circuit has a resonant frequency of 2200 Hz. When operating at a frequency...

    A series RCL circuit has a resonant frequency of 2200 Hz. When operating at a frequency other than 2200 Hz, the circuit has a capacitive reactance of 5.70 and an inductive reactance of 25.0. What are the values of (a) L and (b) C? Note: The ac current and voltage are rms values and power is an average value unless indicated otherwise.

  • Consider an RLC series circuit with R = 600 Ω, L = 3 H, C =...

    Consider an RLC series circuit with R = 600 Ω, L = 3 H, C = 4μF, generator voltage V = 20 v, frequency= 60 hz. Find a) the inductive impedance XL, b) capacitive impedance Xc , c) Total impedance Z, d) Line current I , e) Voltage drops VR , VL, ,Vc f) combination voltage VRL , and VLc , g) phase angle φ , h) resonant frequency f0 , i) Power dissipated by circuit.

  • Q-8.2 Homework. Unanswered. Due in 8 hours A series RCL circuit contains a 148-resistor, a 1.50-uF...

    Q-8.2 Homework. Unanswered. Due in 8 hours A series RCL circuit contains a 148-resistor, a 1.50-uF capacitor, and a 35.7-mH inductor. The generator has a frequency of 512 Hz and an rms voltage of 35.0 V. Determine resonance frequency in the circuit. O A 512 Hz 0 B 688 Hz OCB00HZ D 1024 Hz submit Unanswered

  • The elements in a series RCL circuit are a 106 ohm resistor, a 3.30 uF capacitor,...

    The elements in a series RCL circuit are a 106 ohm resistor, a 3.30 uF capacitor, and a 0.0310 H inductor. The frequency is 609 Hz. What are (a) the impedance of the circuit (b) the phase angle between the current and the voltage of the generator (c) the average power consumed of the circuit if it is plugged into a standard household power outlet (120 V)?

  • 12. A sinusoidal voltage Δv = (75.0 V)sin(120t) is applied to a series RLC circuit with...

    12. A sinusoidal voltage Δv = (75.0 V)sin(120t) is applied to a series RLC circuit with L = 20.0 mH, C = 130.0 μF, and R = 32.0 Ω. (a) What is the impedance of the circuit? Ω (b) What is the maximum current in the circuit? A 11.An AC power source has an rms voltage of 120 V and operates at a frequency of 60.0 Hz. If a purely inductive circuit is made from the power source and a...

  • Generator An AC generator supplies an rms voltage of 220 V at 50.0 Hz. It is...

    Generator An AC generator supplies an rms voltage of 220 V at 50.0 Hz. It is connected in series with a 0.700 H inductor, a 5.20 μF capacitor and a 401 Ω resistor. What is the impedance of the circuit? What is the rms current through the resistor? What is the average power dissipated in the circuit? What is the peak current through the resistor? What is the peak voltage across the inductor? What is the peak voltage across the...
