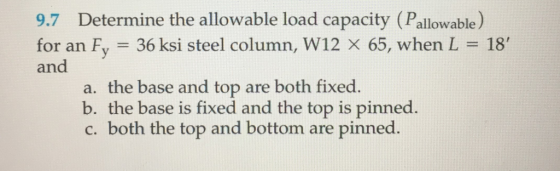

9.7 Determine the allowable load capacity (Pallowable for an Fy 36 ksi steel column, W12 x 65, when L and 18 a. the base and top are both fixed b. the base is fixed and the top is pinned. c. both the top and bottom are pinned.

engineering   Civil-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

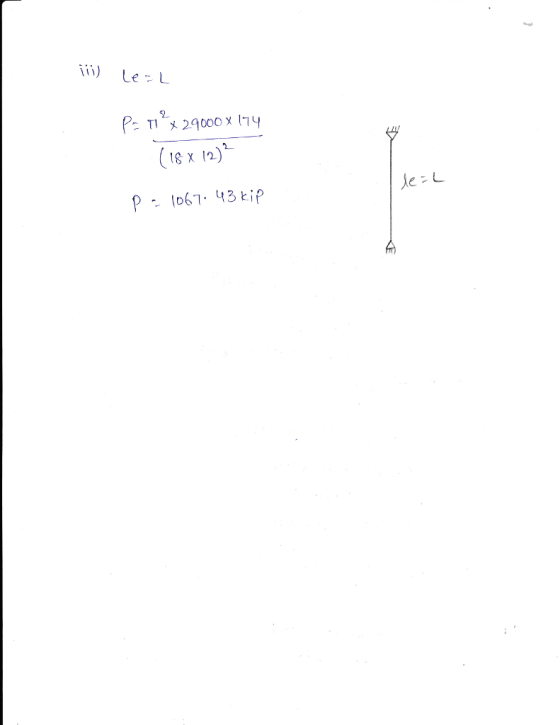

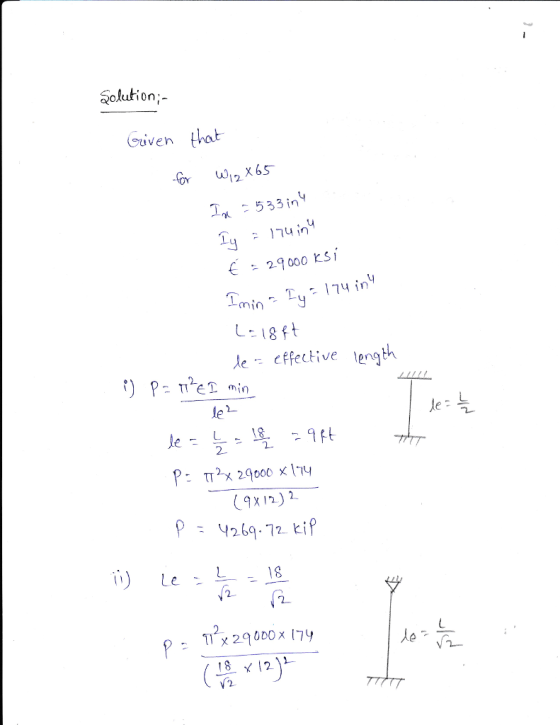

Çolution;- Given hat 12- 533 in 29000 ksi min ecffective engh (9x12)2 4269-72 tif 18 de 18 12 2iii) le: L 오. TI メ29000 x 179 18 x 12)1

0 0
Add a comment
Know the answer?
Add Answer to:
9.7 Determine the allowable load capacity (Pallowable for an Fy 36 ksi steel column, W12 x...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • 5. Determine the allowable load capacity (Pa) for an Fy 50 ksi steel column, W12x65 when...

    5. Determine the allowable load capacity (Pa) for an Fy 50 ksi steel column, W12x65 when L 18'. The base and top are both fixed. (10 Points)

  • 2. Buckling. (10pts) The A-36-steel W12 x 50 column is fixed at its base. Its top...

    2. Buckling. (10pts) The A-36-steel W12 x 50 column is fixed at its base. Its top is constrained so that it cannot move along the x-x axis but is free to move along the y-y axis. Determine the allowable centric load the column can support if the safety factor is 2. Data: A= 1 Sin, 1, = 56in", 1.-394 in*, E-29x10,ksi.

  • Determine the allowable axial compressive load for a 25-foot long A992 W8X40 structural steel column using...

    Determine the allowable axial compressive load for a 25-foot long A992 W8X40 structural steel column using the AISC procedure as indicated in your textbook. The bottom of the column is fixed, an the top is pinned. Use the material properties and dimensions as indicated in the appendices of your textbook.

  • Select the most economic A992 (Fy=50 ksi) W shape to use as a column for the...

    Select the most economic A992 (Fy=50 ksi) W shape to use as a column for the following conditions. Axial dead load of 75 kips, axial live load of 75 kips, length of the column is 12 ft, with no intermediate bracing, pinned top and bottom 2, 3. Use table 10.6 to answer the following questions about A36 double angle compression struts, pinned at both ends. A double-angle compression member 8 ft long is composed of two A36 4x3x5/16 steel angles....

  • Problem 2. A steel beam has the dimensions shown, and yield stress Fy = 36 ksi....

    Problem 2. A steel beam has the dimensions shown, and yield stress Fy = 36 ksi. 12" 1.5" a. Find the elastic properties A, yes (from the top), Ixx, lwy, Stop, Shot. b. Find the moment, M., (in inch-kips) needed to just cause first yield in the section. Where does that yielding 21.5" happen? c. Find the plastic properties Ycg and Z. d. What is the full plastic moment capacity, M? e. How would the first yield moment, M, and...

  • Problem 2. Design and select an ASTM A992 (Fy" 50 ksi) W-shape column to carry an...

    Problem 2. Design and select an ASTM A992 (Fy" 50 ksi) W-shape column to carry an axial dead load of 140 kips and live lond of 420 kips. The column is 30 feet long, and is pinned top and bottom in both axes. In addition, the column is laterally braced about the y-y axis (local weak/minor axis of the section) and torsionally braced at the midpoint. Limit the column size to a nominal 14 in. shape, that is W14 shape...

  • A HSS 12x 8 x % with Fy 46 ksi is used as a column member....

    A HSS 12x 8 x % with Fy 46 ksi is used as a column member. The length of the member is 15 feet. Both ends are pinned, and there is an additional support against the weak axis buckling at a point 6 ft. from the top (Fig. P3). Determine the design compressive strength of the column for LRFD. 15' y-axis x-axis Fig, P3

  • Select the most economical W12 column 22.5 feet in height to support an unfactored axial dead...

    Select the most economical W12 column 22.5 feet in height to support an unfactored axial dead load of 370 kips using A572 grade 50 steel. Assume that the column is pinned at both the top and base. **Dead load factor is 1.4 for dead load only cases.

  • 5.14-3 Design a base plate for a W12 × 87 column supporting a service dead load...

    5.14-3 Design a base plate for a W12 × 87 column supporting a service dead load of 65 kips and a service live load of 195 kips. The support will be a 16-inch × 16-inch concrete pier. Use A36 steel and = 3.5 ksi. a. Use LRFD b. Use ASD

  • Please answer questions 1 - 9. Be sure to circle final answers. Thank you! 6. Steel...

    Please answer questions 1 - 9. Be sure to circle final answers. Thank you! 6. Steel Column Analysis Span B -- -- -- For the given axially loaded steel W-section, determine the maximum floor live load capacity, P LL. Assume the column is pinned top and bottom: K = 1.0, and there is no intermediate bracing. Use AISC-LRFD steel equations to determine phi Pn and the load. E = 29000 ksi. Span A -3- DATASET: 1 -2- W-section Fy Span...
