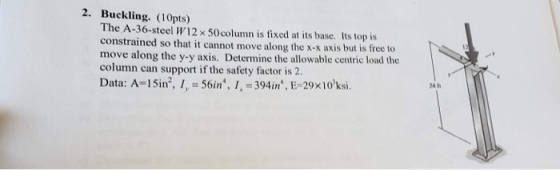

2. Buckling. (10pts) The A-36-steel W12 x 50 column is fixed at its base. Its top...

Question

Question

engineering Mechanical-Engineering

Answer 1

Answer #1

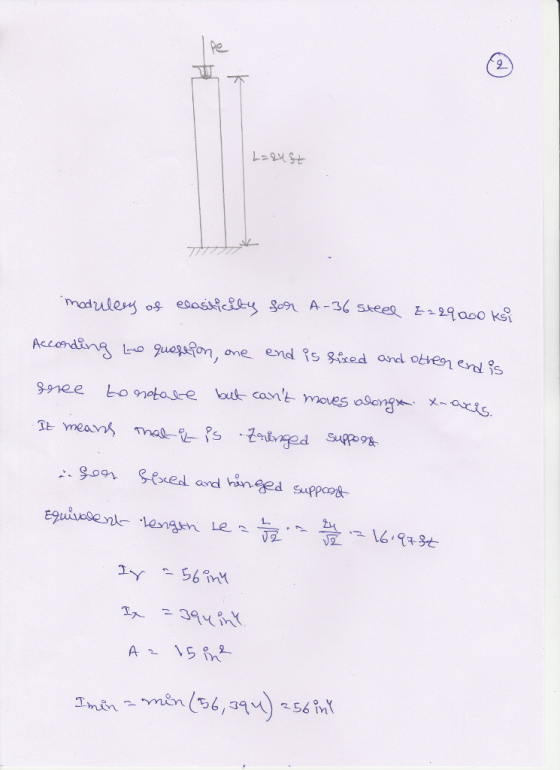

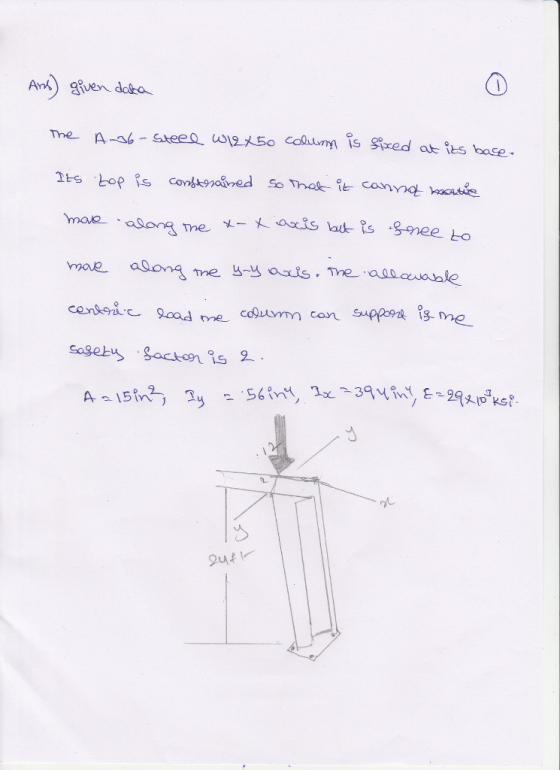

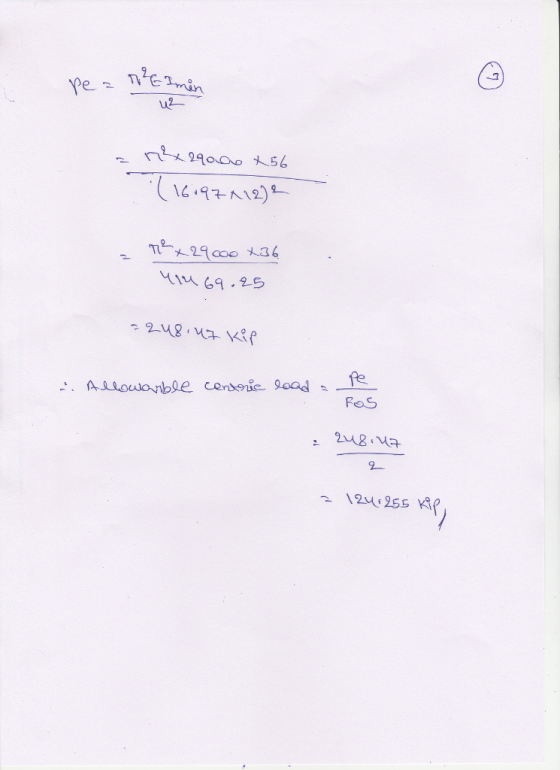

E min 1697- 12)- FoS

Answer 2

Similar Homework Help Questions

3. Buckling.(10pts) The A-36-steel W12x 50column is fixed at its base. Its top is constrained so...

3. Buckling.(10pts) The A-36-steel W12x 50column is fixed at its base. Its top is constrained so that it cannot move along the x-x axis but is free to rotate about and move along the y-y axis. Determine the allowable centric load the column can support if the safety factor is 2. Data: A-1Sin', 1, 56in', 1, 394in 24 ft
9.7 Determine the allowable load capacity (Pallowable for an Fy 36 ksi steel column, W12 x...

9.7 Determine the allowable load capacity (Pallowable for an Fy 36 ksi steel column, W12 x 65, when L and 18 a. the base and top are both fixed b. the base is fixed and the top is pinned. c. both the top and bottom are pinned.
The structural steel column shown in the fiqure is fixed at its base and free at its upper end. At the top of the colu...

The structural steel column shown in the fiqure is fixed at its base and free at its upper end. At the top of the column, a load P is applied to the stiffened seat support at an eccentricity of e= 7.000 in. from the centraidal axis of the wide-flanqe shape. Use the AISC equations aiven in Section 16.5 and assume that E=29000 ksi and a, =36 ksi , Employ the allowable stress method determine: (a) whether the column is safe...

Q4. Figure Q4 shows a steel column that pinned on top and fixed at the base....

Q4. Figure Q4 shows a steel column that pinned on top and fixed at the base. The column is restrained by steel beams about its x-axis and y-axis on the top of the column. The radius of gyrations of the column about x-axis is 137 mm and y-axis is 77.8 mm. The Modulus Elasticity of the column is 200 x10 kPa. (i) Calculate the moment of inertia of the column on x axis and y axis. (17 marks) (ii) Find...
Problem#2 A W12 x58, A992 column is pinned at the top and fixed at the bottom...

Problem#2 A W12 x58, A992 column is pinned at the top and fixed at the bottom as shown. Lateral bracing is provided to assist with weak-axis buckling strength 12.5 ft from the ground level. For the condition where the column only supports axial load, determine the design strength of the column. K 1.0 7.5 ft K- 0.8 20 ft K = 0.8 | 12.5 ft
P16.042 (GO Tutorial) The structural steel column shown in the figure is fixed at its base and free at its upper end....

P16.042 (GO Tutorial) The structural steel column shown in the figure is fixed at its base and free at its upper end. At the top of the column, a load P is applied to the stiffened seat support at an eccentricity of e = 8.125 in. from the centroidal axis of the wide- flange shape. Use the AISC equations given in Section 16.5 and assume that E = 29000 ksi and oy = 36 ksi. Employ the allowable stress method...

*13-36. The beam supports the load of P = 30kN. As a result, the A-36 steel...

*13-36. The beam supports the load of P = 30kN. As a result, the A-36 steel member BC is subjected to a compressive load. Due to the forked ends on the member, consider the supports al B and C to act as pins for x-raxis buckling and as fixed supports for y-y axis buckling. Determine the factor of safety with respect to buckling about each of these axes. 13–37. Determine the greatest load P the frame will support without causing...
A steel column is made by welding two 10 in x 0.8 in plates to a...

A steel column is made by welding two 10 in x 0.8 in plates to a W8 x 48 shape as shown in the figure 1. Knowing that the effective length of the column is 24 ft, determine the allowable centric load using the AISC code. Use Sy = 36 ksi and E = 29 x 106 psi W8 x 48 properties: A (in2) d(in) bf (in) tr(in) tw (in) Ix (in) x(in) ly (in“) ry(in) 14.1 8.5 8.11 0.685...
The 12 × 50 is made of A992 steel and is used as a column that...

The 12 × 50 is made of A992 steel and is used as a column that has a length of 23 ft. Its ends are assumed pin supported and it is subjected to an axial load of 142 kip. Iy 56.3 in and E 29(103) ksi. Part A Determine the factor of safety with respect to buckling Express your answer to three significant figures. vec

el column shown in the fig is fixed at its base and free at its per end. At the top of the column, a load P is applied...

el column shown in the fig is fixed at its base and free at its per end. At the top of the column, a load P is applied to the stiffened seat . Use the AISC equations given in Section 16.5 and assume that E = 29000 ksi and The structural s an eccentricity of e= 7.750 in, from the centroidal axis of the wide-flange shap o= 36 ksi. Employ the allowable stress method to determine: port at (a) whether...
