4)

As you haven't mentioned the question numbers which should be answered. According to HOMEWORKLIB RULES I am answering the very first question on the page.
If you require answers for all the questions listed on the page, please mention it explicitely

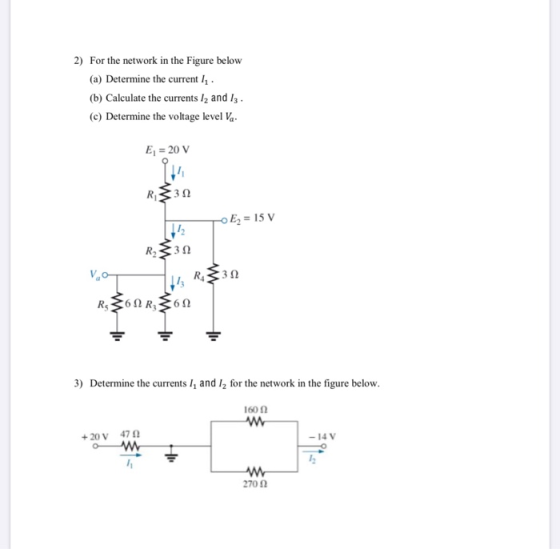

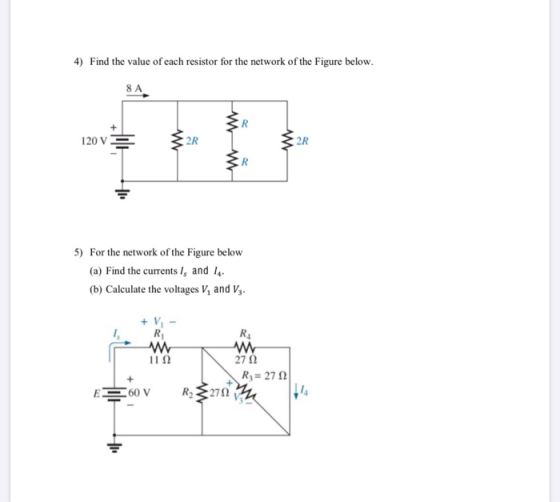

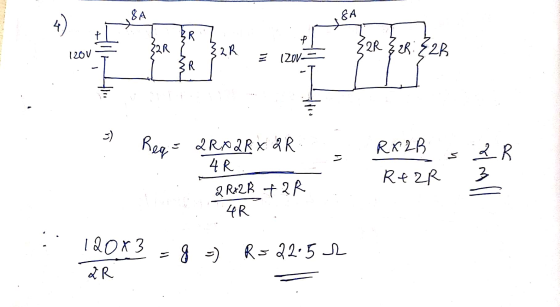

4) Find the value of each resistor for the network of the Figure below. ER 120...
The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, VB, and Vc). The resistor values are: R1=2 Ohms, R2=R3=6 Ohms, and the battery voltages are VA=25 V, V3=15 V, and Vc=20 V. When the circuit is connected, what will be the power dissipated by R2? Vc R1 + VA VB R2 R3 1.0 w 2.0 W 5.0 W 6.0 W 7.5 W
The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA. VB, and Vc). The resistor values are: R1=2 Ohms, R=R3-8 Ohms, and the battery voltages are VA=25 V, V3=15 V, and Vc=20 V. When the circuit is connected, what will be the power dissipated by R3? Vc R₂3 VA HE R2 R₃ 0.75 W 1.25 W 2.67 W 4.2 W 5.5 W
The circuit shown in the figure below contains three resistors (R1, R2, and Rs) and three batteries (VA. Vg, and Vc). The resistor values are: R1-2 Ohms, R-R3=8 Ohms, and the battery voltages are VA-25 V, V3=15 V, and Vc-20 V. When the circuit is connected, what will be the power dissipated by R3? Vc R1 VA ve R2 R3 O 0.75 W 1.25 W 267 W 4.2 w O 5.5 W
The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, VB, and Vc). The resistor values are: R1=2 Ohms, R2=R3=4 Ohms, and the battery voltages are VA-25 V, V3=15 V, and Vc=20 V. When the circuit is connected, what will be the power dissipated by R3? VC Ri + VA 1: R₂ R3 O 1.25 W 20w O 5.0W O 6.25 W O 8.13 W
The circuit shown in the figure below contains three resistors (R1, R2, and Rg) and three batteries (VA, Ve, and Vd. The resistor values are: R2-2 Ohms, R2=R3=8 Ohms, and the battery voltages are VA-25V, V3-15 V, and Vc-20V. When the circuit is connected, what will be the power dissipated by Rs? Vc HA RA w VA VE R2 [m R3 O 0.75 W 125 W 2.67 W 42W 5.5 W
Solve each practice problem. TYPE solutions in
engineering notation
TYPE solutions in engineering
notation.
Calculate the component voltages and branch currents for the circuit shown in Figure 6.40, along with the values of I, and Rr. 3. R3 2 kn R4 4.7 k R1 10 k Vs 26 V R5 3.3 k R2 3 kn FIGURE 6.40 Calculate the component currents and loop voltages for the circuit shown in Figure 6.42, along with the values of I and Rr 5....
For the circuit shown in figure 7, find the node voltages Vi. V2 and Va nalysis 12 (4 V 2Ω 4 A Fig.7 h. For the circuit shown in figure 7, find the mesh currents I, la, and Is
For the circuit shown in figure 7, find the node voltages Vi. V2 and Va nalysis 12 (4 V 2Ω 4 A Fig.7 h. For the circuit shown in figure 7, find the mesh currents I, la, and Is
Q2(a) Consider the circuit shown in Figure Q2a. Find the power delivered resistor. i. Calculate the total resistance ii. Calculate the total current iii. Calculate the current in each branch iv. Calculate the voltage drop in each resistor v. Calculate the power delivered to each resistor. 2.012 20 V 1.022 3.0 22 w 4.0 52
The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, VB, and Vc). The resistor values are: R1=2 Ohms, R=R3=4 Ohms, and the battery voltages are VA=25 V, V8=15 V, and Vc=20 V. When the circuit is connected, what will be the power dissipated by R1? Vc M R1 + VA VB - R2 R3 1.25 W 2.0W 12.5 W 6.25 W 8.13 W The circuit shown in the figure contains four...
The circuit shown in the figure below contains three resistors
(R1, R2, and R3) and three
batteries (VA, VB, and VC). The
resistor values are: R1=2 Ohms,
R2=R3=6 Ohms, and the battery voltages are
VA=25 V, VB=15 V, and VC=20 V.
When the circuit is connected, what will be the power dissipated by
R2?
a) 1.0 W
b) 2.0 W
c) 5.0 W
d) 6.0 W
e) 7.5 W
Vc R VA VB R2 { } R3
