A mass m has a massless hook of length 2L attached to it. The end of...

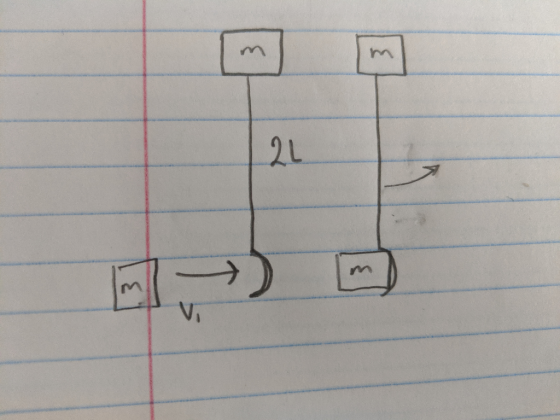

A mass m has a massless hook of length 2L attached to it. The end of this hook is a massless sticky scoop. This system of mass and hook is initially at rest. Another mass m flies with speed v1 directly into this scoop, sticks, and the whole thing starts to move and rotate. Find expressions for the linear and rotational velocity of the combined object after the first mass is caught.
Homework Answers
Add Answer to:
A mass m has a massless hook of length 2L attached to it. The
end of...
