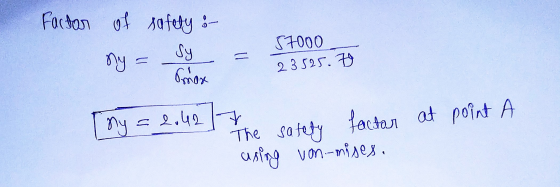

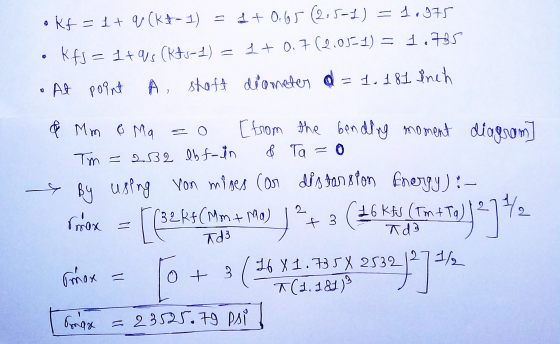

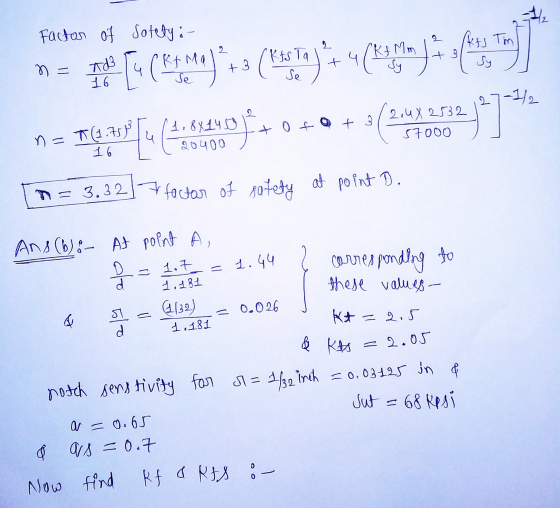

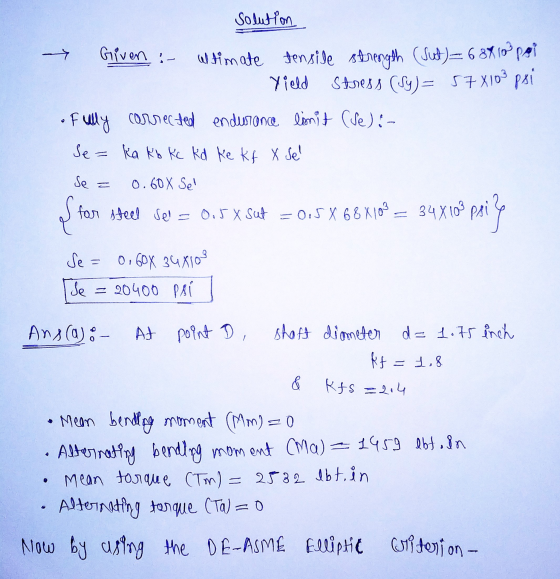

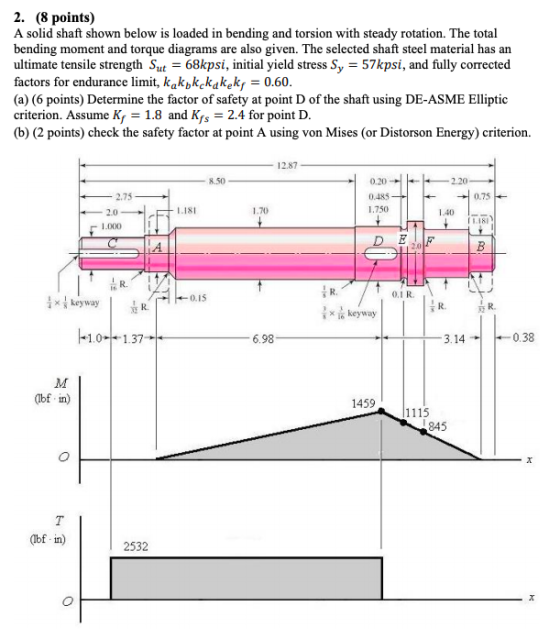

2. (8 points) A solid shaft shown below is loaded in bending and torsion with steady...
QUESTION 10 The shaft shown in the figure is driven by a gear at the right...
QUESTION 10 The shaft shown in the figure is driven by a gear at the right keyway, drives a fan at the left keyway, and is supported by two deep-groove ball bearings at locations A and B. The shaft is made from AISI 1045 cold-drawn steel. At steady-state speed, the gear transmits a radial load of 300 lbf and a tangential load of 700 lbf at a pitch diameter of 8 in. Assume that the weight and axial load of...
The shaft shown in the figure is driven by a gear at the right keyway, drives...
The shaft shown in the figure is driven by a gear at the right keyway, drives a fan at the left keyway, and is supported by two deep-groove ball bearings at locations A and B. The shaft is made from AISI 1045 cold-drawn steel. At steady-state speed, the gear transmits a radial load of 300 lbf and a tangential load of 700 lbf at a pitch diameter of 8 in. Assume that the weight and axial load of the fan...
The shaft shown in the figure is driven by a gear at the right keyway, drives...
The shaft shown in the figure is driven by a gear at the right keyway, drives a fan at the left keyway, and is supported by two deep-groove ball bearings at locations A and B. The shaft is made from AISI 1045 cold-drawn steel. At steady- state speed, the gear transmits a radial load of 300 lbf and a tangential load of 700 lbf at a pitch diameter of 8 in. Assume that the weight and axial load of the...
The shaft shown in the figure is driven by a gear at the right keyway, drives...
The shaft shown in the figure is driven by a gear at the right keyway, drives a fan at the left keyway, and is supported by two deep-groove ball bearings at locations A and B. The shaft is made from AISI 1045 cold-drawn steel. At steady-state speed, the gear transmits a radial load of 300 lbf and a tangential load of 700 lbf at a pitch diameter of 8 in. Assume that the weight and axial load of the fan...
A shaft is loaded in bending and torsion such that Ma- 73.7 N-m, Ta -48.8 Nm,...
A shaft is loaded in bending and torsion such that Ma- 73.7 N-m, Ta -48.8 Nm, Mm = ? 7.5 N·m, Tm = 30.9 N. m. For the shaft, SU-630 MPa and Sy = 495 MPa, and a fully corrected endurance limit of Se -190 MPa is assumed. Let Kf - 2.13 and Kfs-1.89 Part 1 out of 2 With a design factor of 1.9, determine the minimum acceptable diameter of the shaft using the DE-Gerber criterion, the DE-elliptic criterion,...
Ashalt is loaded in bending and torsion such that M = 70 N m , T....
Ashalt is loaded in bending and torsion such that M = 70 N m , T. 45 N m, MA 55 N m , and T = 35 N m. For the shaft, S, = 700 MPa and S = 560 MPa, and a fully corrected endurance limit of S-210 MPa is assumed. Let Ky - 2.2 and K = 1.8. With a design factor of 2.0 determine the minimum acceptable diameter of the shalt using the (a) DE-Gerber criterion....
The rotating solid steel shaft is simply supported by bearings at points B and C and is driven by gear (not shown) which meshes with the spur gear at D
The rotating solid steel shaft is simply supported by bearings at points B and C and is driven by gear (not shown) which meshes with the spur gear at D, which has a 150-mm pitch diameter. The force F from the drive gear acts at a pressure angle of 20". The shaft transmits a torque to point A of TA = 340 N.m. The shaft is machined from steel with Sy= 420 MPa and Sut = 560 MPa. The fatigue...
The section of shaft shown in the figure is to be designed to approximate relative sizes of d 0.7...
The section of shaft shown in the figure is to be designed to approximate relative sizes of d 0.75D and r- D/20 with diameter d conforming to that of standard rolling-bearing bore sizes. The shaft is to be made of SAE 2340 steel, heat-treated to obtain minimum strengths in the shoulder area of 175 kpsi ultimate tensile strength and 160 kpsi yield strength with a Brinell hardness not less than 370. At the shoulder the shaft is subjected to a...
7-2 The section of shaft shown in the figure is to be designed to approximate relative sizes of d...
7-2 The section of shaft shown in the figure is to be designed to approximate relative sizes of d 0.75D andD/20 with diameter d conforming to that of standard rolling-bearing bore sizes. The shaft is to be made of SAE 2340 steel, heat-treated to obtain minimum strengths in the shoulder area of 175 kpsi ultimate tensile strength and 160 kpsi yield strength with a Brinell hardness not less than 370. At the shoulder the shaft is subjected to a completely...
Questions must be answered in the space provided 6. You must show your work to obtain full credit 1. (50 points) Determine the maximum deflections in torsion and in bending of the shaft shown in...
Questions must be answered in the space provided 6. You must show your work to obtain full credit 1. (50 points) Determine the maximum deflections in torsion and in bending of the shaft shown in a. Figure for the data given below if the steel shaft diameter is 2 in Shaft length L 25 in Applied load P- 1300 lbf Maximum torque Tmax= 2500 lbfin Distance to Pb- 20 in Distance between bearings a -16i Young's modulus E-30x lof psi...
QUESTION 10 The shaft shown in the figure is driven by a gear at the right keyway, drives a fan at the left keyway, and is supported by two deep-groove ball bearings at locations A and B. The shaft is made from AISI 1045 cold-drawn steel. At steady-state speed, the gear transmits a radial load of 300 lbf and a tangential load of 700 lbf at a pitch diameter of 8 in. Assume that the weight and axial load of...
The shaft shown in the figure is driven by a gear at the right keyway, drives a fan at the left keyway, and is supported by two deep-groove ball bearings at locations A and B. The shaft is made from AISI 1045 cold-drawn steel. At steady-state speed, the gear transmits a radial load of 300 lbf and a tangential load of 700 lbf at a pitch diameter of 8 in. Assume that the weight and axial load of the fan...
The shaft shown in the figure is driven by a gear at the right keyway, drives a fan at the left keyway, and is supported by two deep-groove ball bearings at locations A and B. The shaft is made from AISI 1045 cold-drawn steel. At steady- state speed, the gear transmits a radial load of 300 lbf and a tangential load of 700 lbf at a pitch diameter of 8 in. Assume that the weight and axial load of the...
The shaft shown in the figure is driven by a gear at the right keyway, drives a fan at the left keyway, and is supported by two deep-groove ball bearings at locations A and B. The shaft is made from AISI 1045 cold-drawn steel. At steady-state speed, the gear transmits a radial load of 300 lbf and a tangential load of 700 lbf at a pitch diameter of 8 in. Assume that the weight and axial load of the fan...
A shaft is loaded in bending and torsion such that Ma- 73.7 N-m, Ta -48.8 Nm, Mm = ? 7.5 N·m, Tm = 30.9 N. m. For the shaft, SU-630 MPa and Sy = 495 MPa, and a fully corrected endurance limit of Se -190 MPa is assumed. Let Kf - 2.13 and Kfs-1.89 Part 1 out of 2 With a design factor of 1.9, determine the minimum acceptable diameter of the shaft using the DE-Gerber criterion, the DE-elliptic criterion,...
Ashalt is loaded in bending and torsion such that M = 70 N m , T. 45 N m, MA 55 N m , and T = 35 N m. For the shaft, S, = 700 MPa and S = 560 MPa, and a fully corrected endurance limit of S-210 MPa is assumed. Let Ky - 2.2 and K = 1.8. With a design factor of 2.0 determine the minimum acceptable diameter of the shalt using the (a) DE-Gerber criterion....
The section of shaft shown in the figure is to be designed to approximate relative sizes of d 0.75D and r- D/20 with diameter d conforming to that of standard rolling-bearing bore sizes. The shaft is to be made of SAE 2340 steel, heat-treated to obtain minimum strengths in the shoulder area of 175 kpsi ultimate tensile strength and 160 kpsi yield strength with a Brinell hardness not less than 370. At the shoulder the shaft is subjected to a...
7-2 The section of shaft shown in the figure is to be designed to approximate relative sizes of d 0.75D andD/20 with diameter d conforming to that of standard rolling-bearing bore sizes. The shaft is to be made of SAE 2340 steel, heat-treated to obtain minimum strengths in the shoulder area of 175 kpsi ultimate tensile strength and 160 kpsi yield strength with a Brinell hardness not less than 370. At the shoulder the shaft is subjected to a completely...
Questions must be answered in the space provided 6. You must show your work to obtain full credit 1. (50 points) Determine the maximum deflections in torsion and in bending of the shaft shown in a. Figure for the data given below if the steel shaft diameter is 2 in Shaft length L 25 in Applied load P- 1300 lbf Maximum torque Tmax= 2500 lbfin Distance to Pb- 20 in Distance between bearings a -16i Young's modulus E-30x lof psi...
