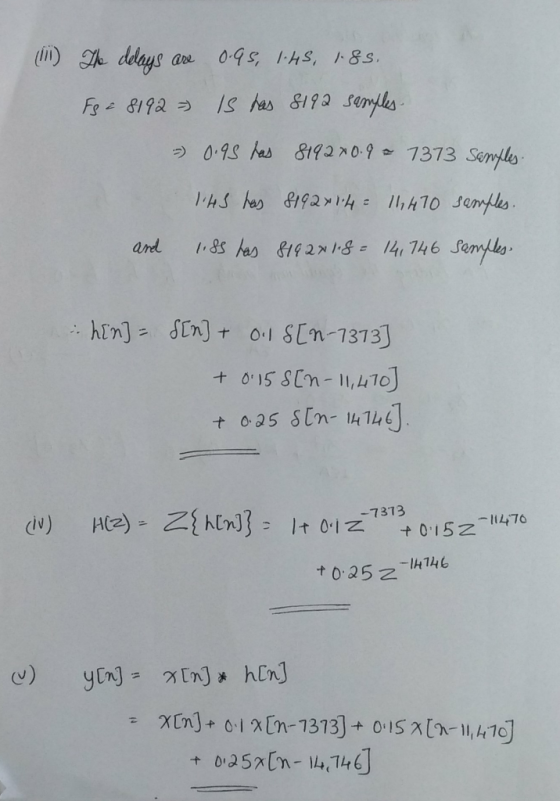

********* Matlab Code for the other parts ************
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%%%% echo filters and effects on ausio signals
clear;
load
splat.mat;
% loading the audio files
x=y;
% x = input
Ts =
1/Fs;
% sampling period
t =
0:Ts:(length(x)/Fs)-Ts;
% time vector
z = tf('z',Ts);
H = 1 + (0.1*z^(-7373)) + (0.15*z^(-11470)) +
(0.25*z^(-14746)); % filter transfer
function
y =
lsim(H,x);
% filter output
%%%%%%%%%%%%% Time domain plots %%%%%%%%%%%%%%
subplot(2,1,1)
plot(t,x);
xlabel('Time (s)');
ylabel('X');

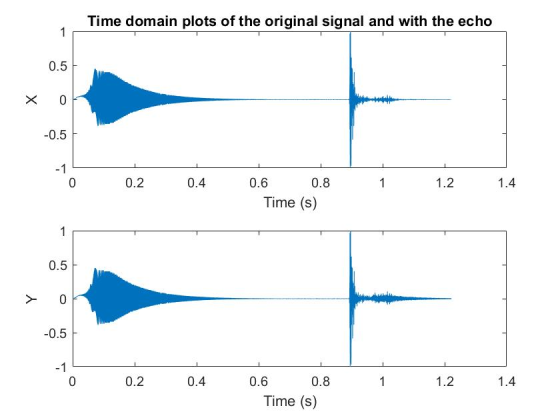

title('Time domain plots of the original signal and with the
echo');
subplot(2,1,2)
plot(t,y);
xlabel('Time (s)');
ylabel('Y');
%%%%%%%%%%%%% Freq domain plots %%%%%%%%%%%%%%
Y1 = fft(x);
L = length(x);
% Compute the two-sided spectrum P2.
% Then compute the single-sided spectrum P1 based on P2 and the
even-valued signal length L.
P2 = abs(Y1/L);
P1 = P2(1:L/2+1);
P1(2:end-1) = 2*P1(2:end-1);
% Define the frequency domain f and plot the single-sided amplitude
spectrum P1.
f = Fs*(0:(L/2))/L;
figure;
subplot(2,1,1)
plot(f,P1)

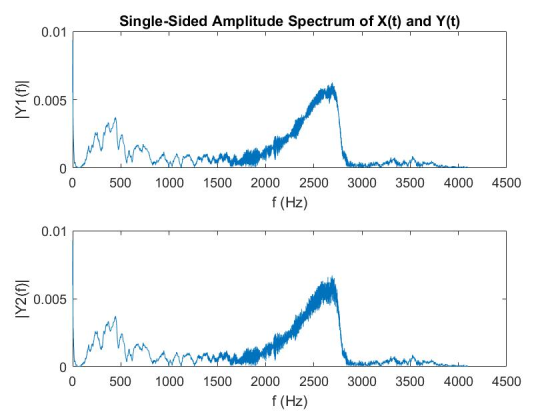

title('Single-Sided Amplitude Spectrum of X(t) and Y(t)')
xlabel('f (Hz)')
ylabel('|Y1(f)|')
Y2 = fft(y);
L = length(y);
% Compute the two-sided spectrum P2.
% Then compute the single-sided spectrum P1 based on P2 and the
even-valued signal length L.
P2 = abs(Y2/L);
P1 = P2(1:L/2+1);
P1(2:end-1) = 2*P1(2:end-1);
% Define the frequency domain f and plot the single-sided amplitude
spectrum P1.
f = Fs*(0:(L/2))/L;
subplot(2,1,2)
plot(f,P1)
xlabel('f (Hz)')
ylabel('|Y2(f)|')
%%%%%%%%%%%%%%%% Hearing the sounds before and after the echo effect %%%%%%%%%%%
sound(x,Fs);
pause(3);
sound(y,Fs);
******* End of Code *********
Output:

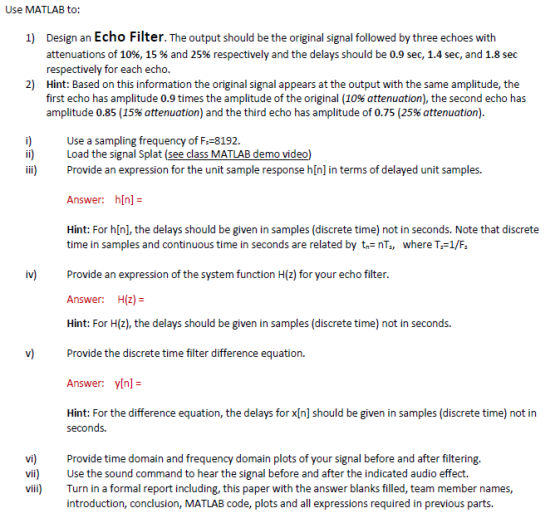

Use MATLAB to: Design an Echo Filter. The output should be the original signal followed by...
Discrete Time Signal Processing Question 1. Consider an IIR filter A(1-2-1 cos ω0) 1-2cos ω02-1+2 I. Compute its impulse response using the difference equation with an impulse signal δ(n) as the input. Use trigonometric identities to simplify the result as much as you can 2. Draw the diagram showing the implementation of this filter in terms of adders, delays and multipliers Note: The IIR filter above generates a cosinusoidal signal when an impulse signal is applied at its input.] Question...
